Forums >> Community >> Newbies >> Double Skin facade with folding shutters

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Jun 3, 2017 at 12:27:32 AM | Double Skin facade with folding shutters

#1

queenierastiee


active

Joined: Fri, Jun 2, 2017
0 Posts
No Rating


Hi guys!

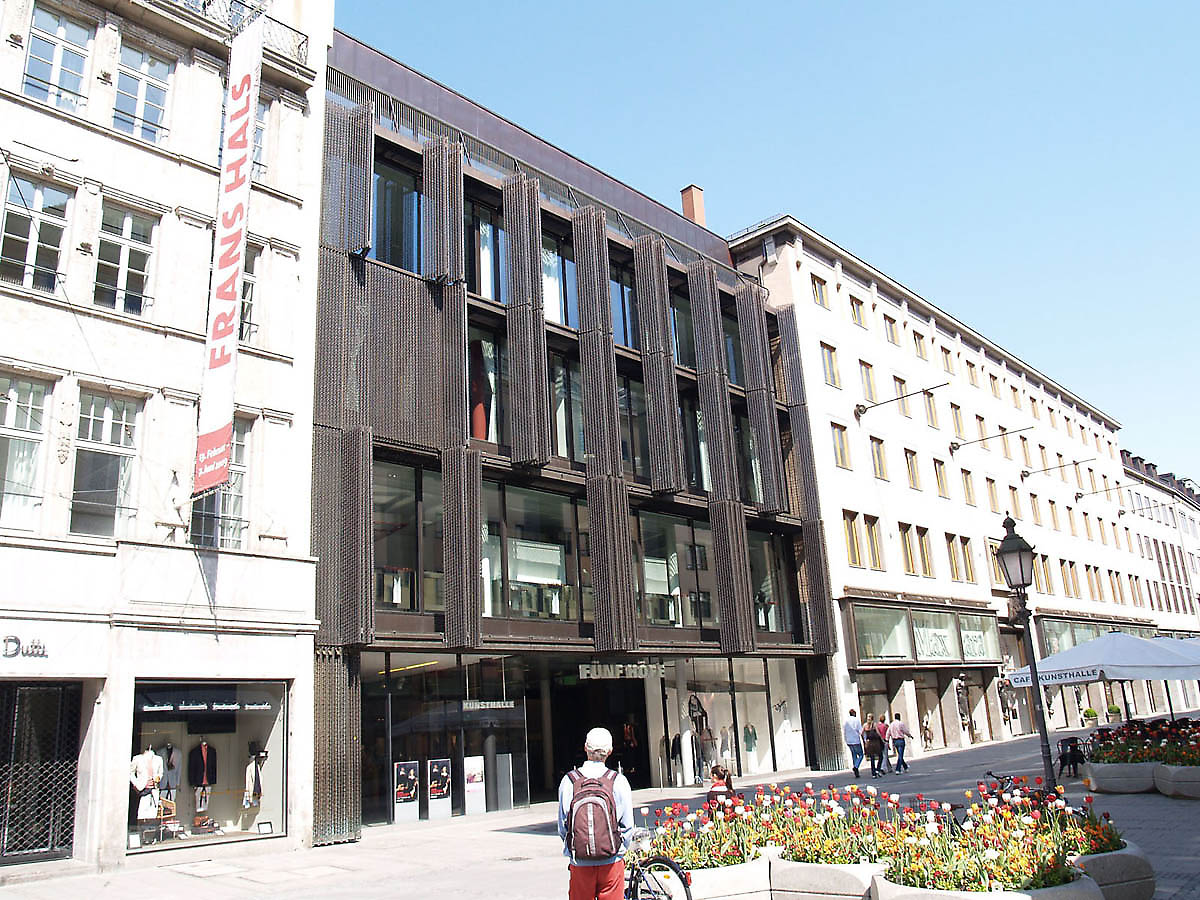

I want to create a double skin facade with and exterior skin made of folding shutters with perforated panels, kinda like Herzog & de Meuron's project Funf Hofe. Any tips on how I could do this? I tried to keep it simple by inserting shutters directly on the wall but it isnt working very well. Please share any tip/idea, I really don't know how to pull this one off.

Thank you so much!



Attached Images


This user is offline



Sat, Jun 3, 2017 at 12:21:39 PM | Double Skin facade with folding shutters

#2

queenierastiee


active

Joined: Fri, Jun 2, 2017
0 Posts
No Rating

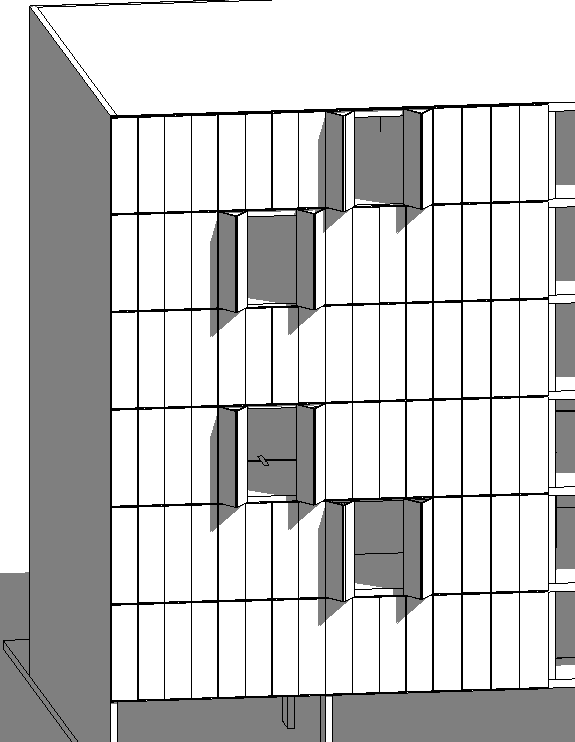

I created a curtain wall with some folding doors i found, any idea how i can represent the perforations?I changed the material of the shutters to another with cut outs but it only shows with render, is there any way I can make it visible without the render?



Attached Images


This user is offline



Sun, Jun 4, 2017 at 5:32:55 AM | Double Skin facade with folding shutters

#3

Elnazer2


active

Joined: Thu, Feb 18, 2016
0 Posts
3 Stars: 2 Votes

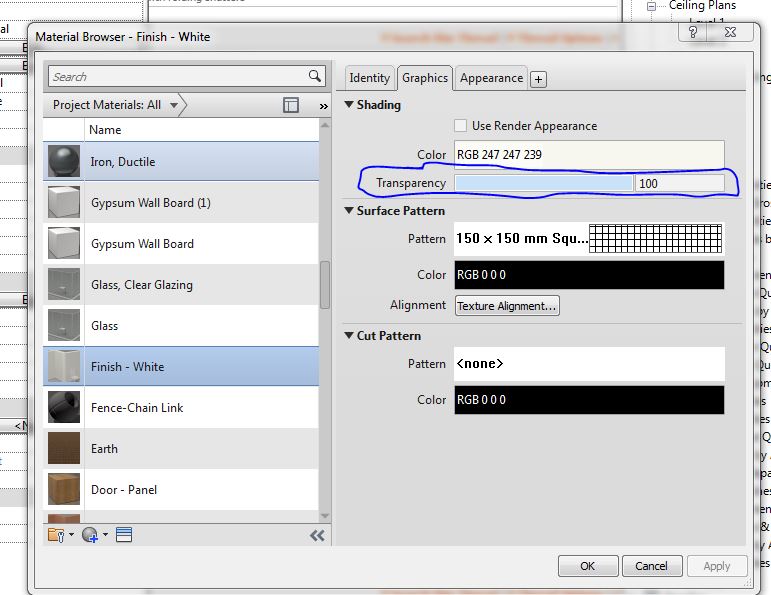

i think you will have to use a model pattern on your material and usee the transparency option in the graphic section - material editor ( as attached )



Attached Images


This user is offline



Sun, Jun 4, 2017 at 6:52:50 PM | Double Skin facade with folding shutters

#4

archigrafix


active

Joined: Fri, Jul 5, 2013
38 Posts
5 Stars: 4 Votes


You should go for the patterns to create the texture.

Do not model those openings in the metal and you will regret. :-)


-----------------------------------

Marc Faber

BIM Solutions Developer

archigrafix.com | Oslo, Norway

Now available: Graphic Studio and Reports for Revit

trees | cars | people | graphics | software

This user is offline

View Website

Fri, Jun 9, 2017 at 9:42:08 AM | Double Skin facade with folding shutters

#5

queenierastiee


active

Joined: Fri, Jun 2, 2017
0 Posts
No Rating


Thank you, that actually worked! Smile


This user is offline



Wed, Nov 13, 2019 at 3:31:43 AM | Double Skin facade with folding shutters

#6

madimelton1


active

Joined: Tue, Sep 18, 2018
0 Posts
No Rating


Hello!

I'm actually looking for something very similar for a school project I'm working on but don't understand curtain walls very well. How did you have the perferations shown in the rendering? Also, were the doors downloaded from Revit City?

Thank you so much@!


This user is offline
