Forums >> Revit Building >> Technical Support >> Same wall different graphics

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 10, 2017 at 4:24:12 PM | Same wall different graphics

#1

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes

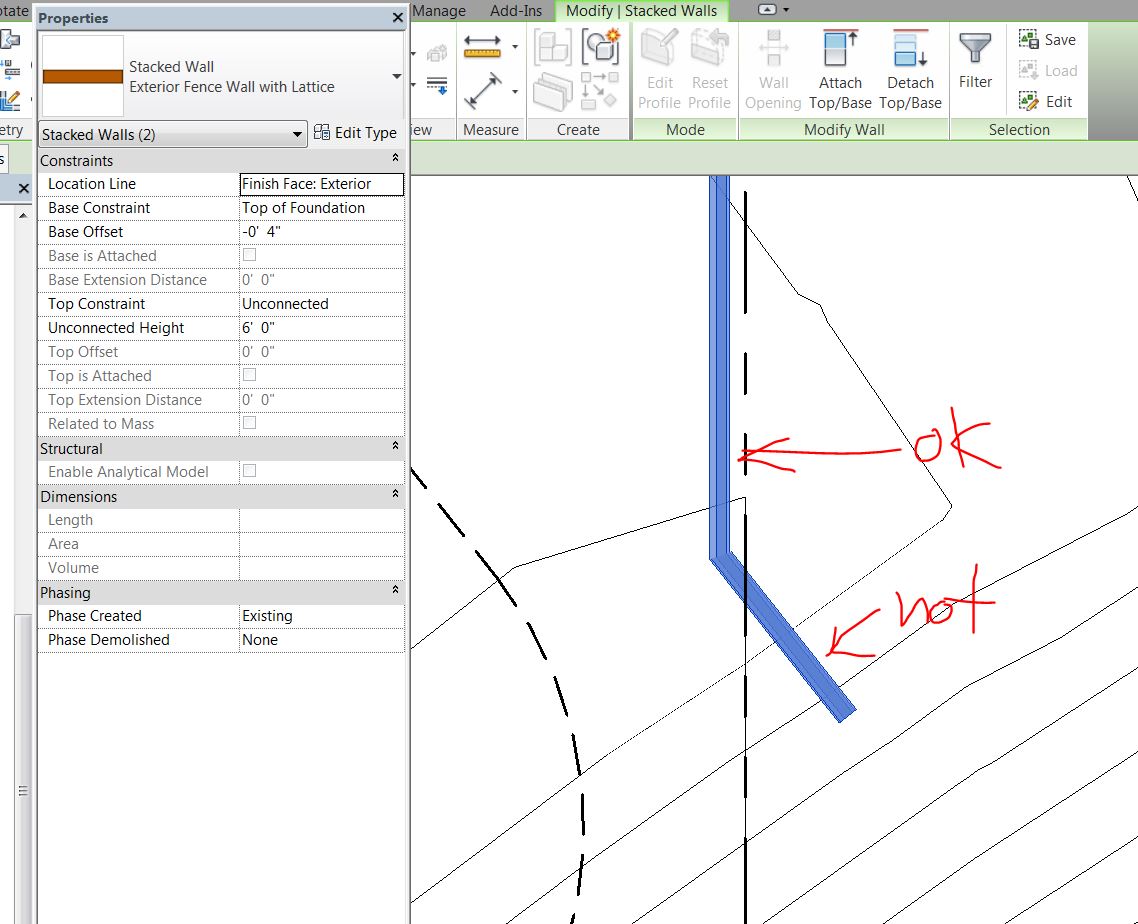

So these two stacked walls (fence with lattice fence on top) seclected are the exact same. same everything per properties. one shows properly the other doesnt. they both have no over rides or anything like that. I try to draw a new fence and it also comes out wrong. cant make it match. Im simply lost now.





Edited on: Wed, May 10, 2017 at 4:27:55 PM

Attached Images


This user is offline

View Website

Wed, May 10, 2017 at 6:33:32 PM | Same wall different graphics

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Are their bases at the same elevation?  Remember, these are stacked walls and show differently at different cut elevations.


This user is offline



Wed, May 10, 2017 at 6:41:55 PM | Same wall different graphics

#3

Warchitect


active

Joined: Wed, Aug 20, 2008
318 Posts
4 Stars: 5 Votes


yes. thats why I set the selection to show the properties base and top elevs.

Ive checked the stacking and its the same.




This user is offline

View Website

Wed, May 10, 2017 at 10:50:10 PM | Same wall different graphics

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


See picture.



Attached Images


This user is offline



Wed, May 10, 2017 at 11:38:34 PM | Same wall different graphics

#5

archigrafix


active

Joined: Fri, Jul 5, 2013
38 Posts
5 Stars: 4 Votes


Whats the height of each wall? Revit has some overrides for low walls, making them in view, instead of cut. Might be your problem...



https://knowledge.autodesk.com/support/revit-products/troubleshooting/caas/sfdcarticles/sfdcarticles/Low-rise-wall-displays-projection-lines-when-plan-view-cut-plane-set-below-top-of-wall.html



Edited on: Wed, May 10, 2017 at 11:40:24 PM

-----------------------------------

Marc Faber

BIM Solutions Developer

goto.archi | Oslo, Norway
