Forums >> Revit Building >> Technical Support >> Mansard roof madness

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Mar 31, 2017 at 9:31:00 PM | Mansard roof madness

#1

AtisAtis


active

Joined: Thu, Jul 30, 2015
0 Posts
No Rating


Hi!

I have been tring to model decent mansard roof for some time, and as the roof shape is difficult, i found solution of using flat roof, then reshaping it with points and split lines. I got to where i wanted, ignoring the fact (error) that my roof thickness is different because of that shape.

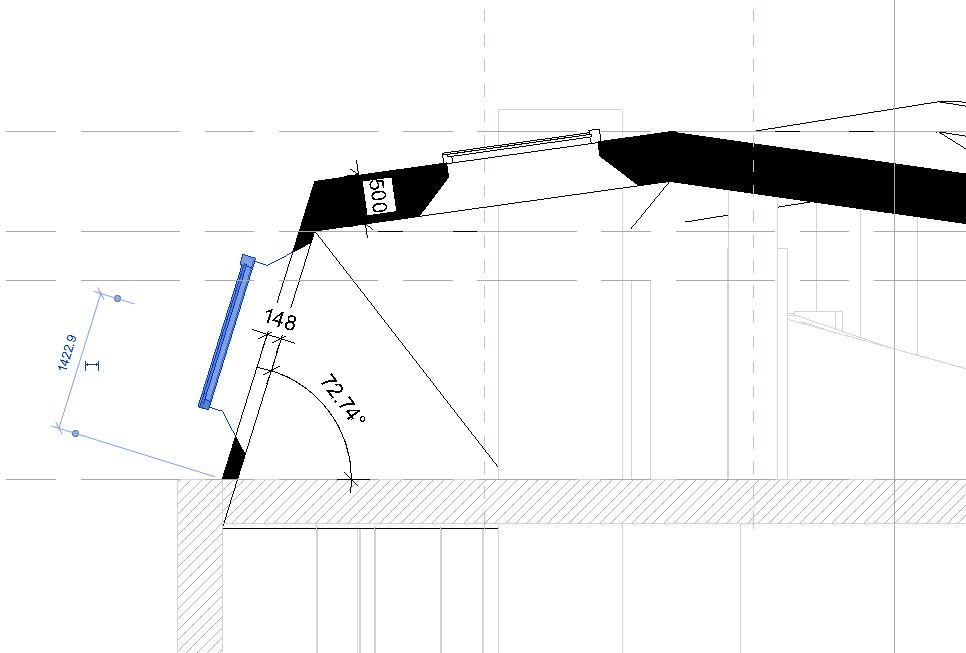

But when now when i try to place face based roof windows, i get some kind of window missplacement, shown in picture.

Is there a better way of modeling roofs like that, so that the thickness stays constant? (i tried modeling bottom part of the roof as roof with level cutoff but with angles of that steep 72+ shape went crazy, bottom part and cuttof level were too off the level)





Attached Images


This user is offline

View Website

Sat, Apr 1, 2017 at 3:02:59 AM | Mansard roof madness

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 22 Votes


Assuming a roof with slopes on four sides, no gable walls.

I'd use either a mass or this.


This user is offline



Sat, Apr 1, 2017 at 9:54:07 AM | Mansard roof madness

#3

AtisAtis


active

Joined: Thu, Jul 30, 2015
0 Posts
No Rating


omg.... this void cutting is working so well, THANK YOU!


This user is offline

View Website
