Forums >> Revit Structure >> Technical Support >> Slanting walls along a beam

Bubba11793

active

Joined: Fri, Mar 24, 2017
0 Posts
No Rating

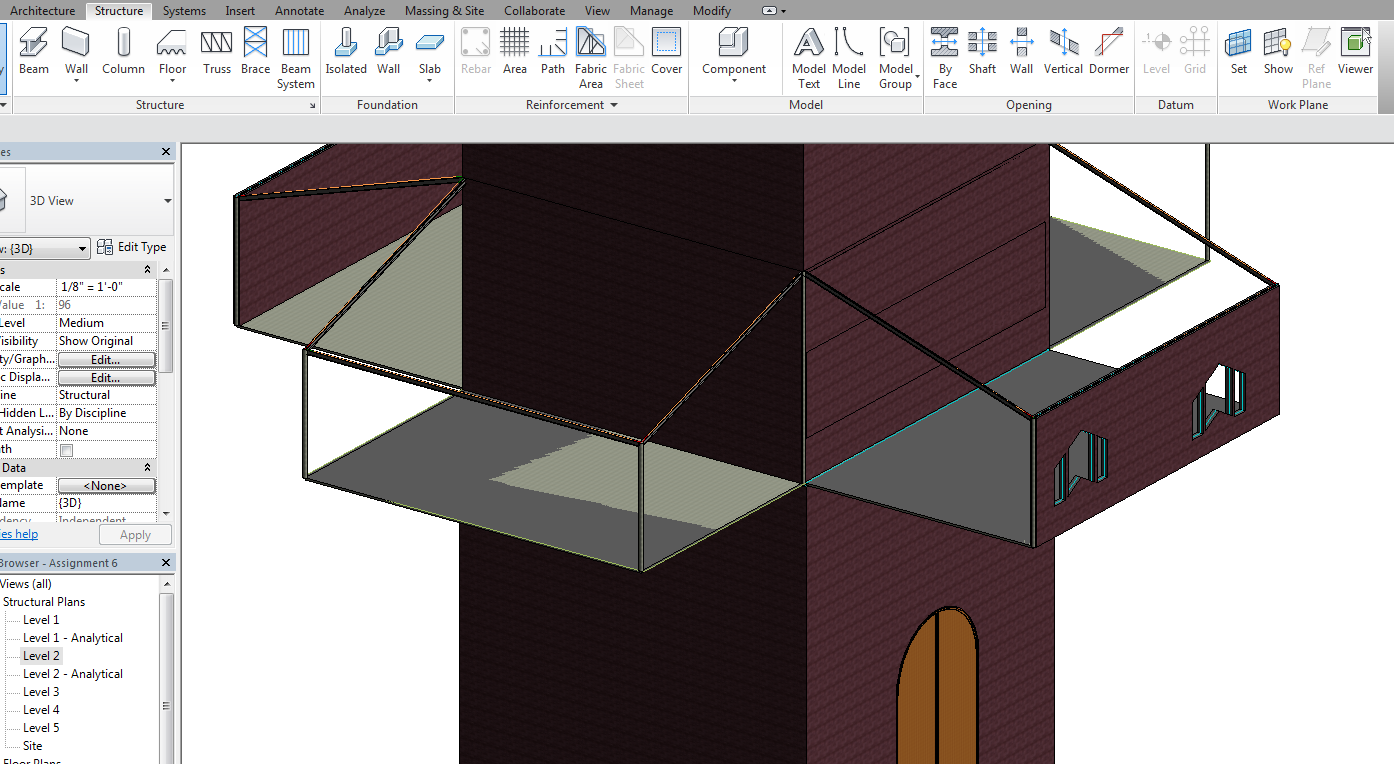

Hey guys, super new to revit. Anyone know how I can I can draw a wall that starts at the top of the beam and the slopes ine elevation down to the lower collumn? Can't find anything on google. Picture of what I'm messing around with is attatched.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Place the wall then edit the wall sketch.  Read this from your help.

This user is offline

Bubba11793

active

Joined: Fri, Mar 24, 2017
0 Posts
No Rating

Thanks! Took some toying with but finally figured it out.
