Forums >> Revit Building >> Technical Support >> Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Feb 28, 2017 at 5:06:40 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#1

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


This was done properly by someone last month who can't seem to help me now.

I saved THEIR file as a new file to make my changes.  Now I'm trying to render and the IMAGE i have properly attached for panels in a "stained" glass curtain wall panel is rendering as GRAY, but with the correct pattern.  I have spent the morning and still cannot figure this out.


This user is offline



Tue, Feb 28, 2017 at 5:25:26 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Sorry, it is not an incorrect render, it is an incorrect setting.

First, you say render but is it render or realistic or shaded?  Patterns don't show on renders, they use a jpg image not a pattern file.

I assume you mean other than render so many possible problems - here are some:

  • You have the wrong material assigned
  • The material color is not set correctly in the material properties GRAPHICS TAB not the appearance tab
  • The element may be in a different phase

This user is offline



Tue, Feb 28, 2017 at 5:29:27 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#3

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


I am RENDERING the 3d view.  I have an image set in "appearance" an there's a gray color set that there I can get rid of.  It overrides the color of the "stained" glass image.


This user is offline



Tue, Feb 28, 2017 at 5:32:10 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#4

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


EVERYTHING is set to "NEW CONSTRUCTION" (but why should it matter?  A rendering is a rendering)

When I change the GRAY color to BLUE, certain panels then change to BLUE, with the pattern.



Attached Images


This user is offline



Tue, Feb 28, 2017 at 5:46:48 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


There are typically two kinds of render materials.  One that is just the image and the other that allows you to set the color, typically a uniform colored material.  Glass and Gypsum Board are two materials that you can set the color on.



You say a 'stained glass' material.  Stained glass is a hard material to do.  Typically, it is small segments of glass in different colors.  You can't really assign an image to a full window unless the image is created to fill the window and even then, there are problems.



You would be better off to use a decal.   This thread may help you to understand.




This user is offline



Tue, Feb 28, 2017 at 5:55:47 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#6

minsky


active

Joined: Fri, Oct 17, 2008
19 Posts
1 Stars: 1 Votes


OH, I understand alright.

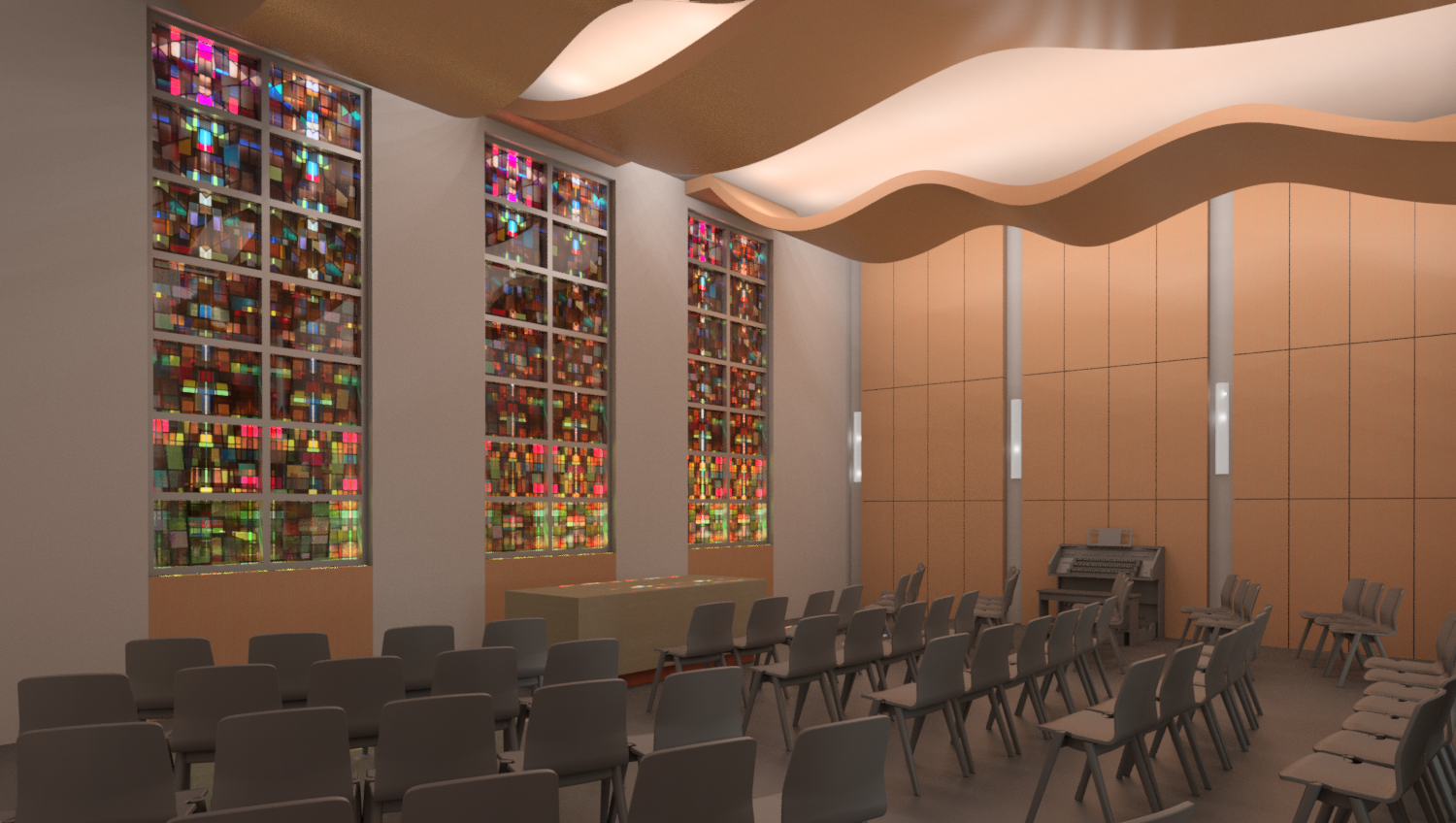

the first image is what it used to look like.

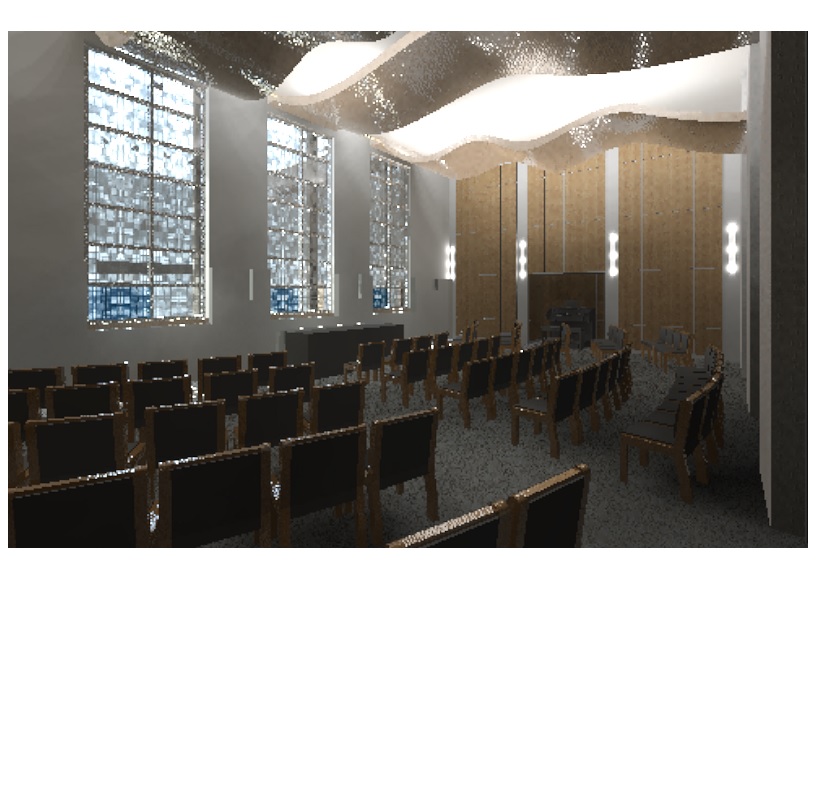

the second is what it looks like now.



Attached Images


This user is offline



Tue, Feb 28, 2017 at 7:22:01 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


What you want / was done/ was not done with a material.  This was either a decal or was added with photoshop.

Read again the post I linked.  It suggested one full pain of glass for the entire window to host the decal.  A decal has to be fully hosted and you don't want to mess with 14 decals, just one.   The muttons can be modeled in place or a CW in the same place with empty panels.


This user is offline



Tue, Feb 28, 2017 at 8:00:09 PM | Revit 2015 Revit is NOT rendering the image color correctly, it renders it GRAY

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Here is a tutorial on how to use a material image .... NOTE - The image has to be equal to or larger than your window glass because you don't want tiling.


This user is offline
