Forums >> Revit Building >> Technical Support >> Stair step detail

phongaigigi

active

Joined: Tue, Feb 7, 2017
0 Posts
No Rating

Hi guys.

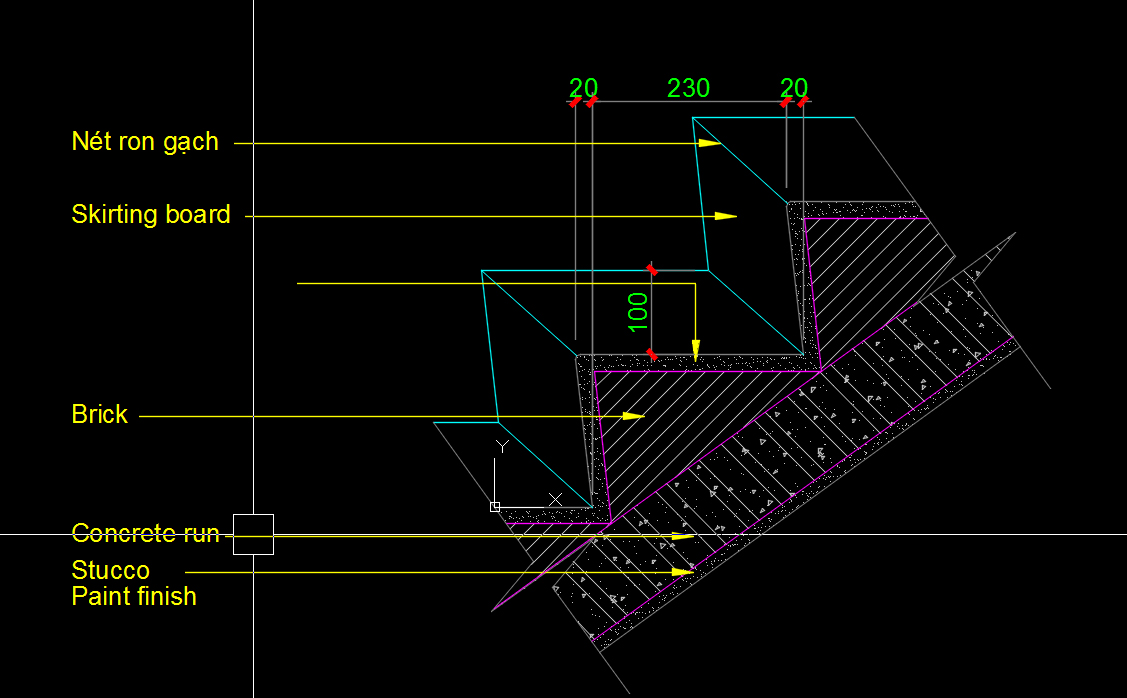

The image attacked is the details I need make by revit. But I can't find the way to do this.

Anybody know how?

P/s: I mean draw this detail by "real" modeling objects. Not just a 2D detail imported from autocad...

Sorry about my English.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

There is no way to do this with the stair tool.

Why do you feel a nead to model rather than detailing?

This user is offline

pijpiwo

active

Joined: Fri, Sep 3, 2010
0 Posts

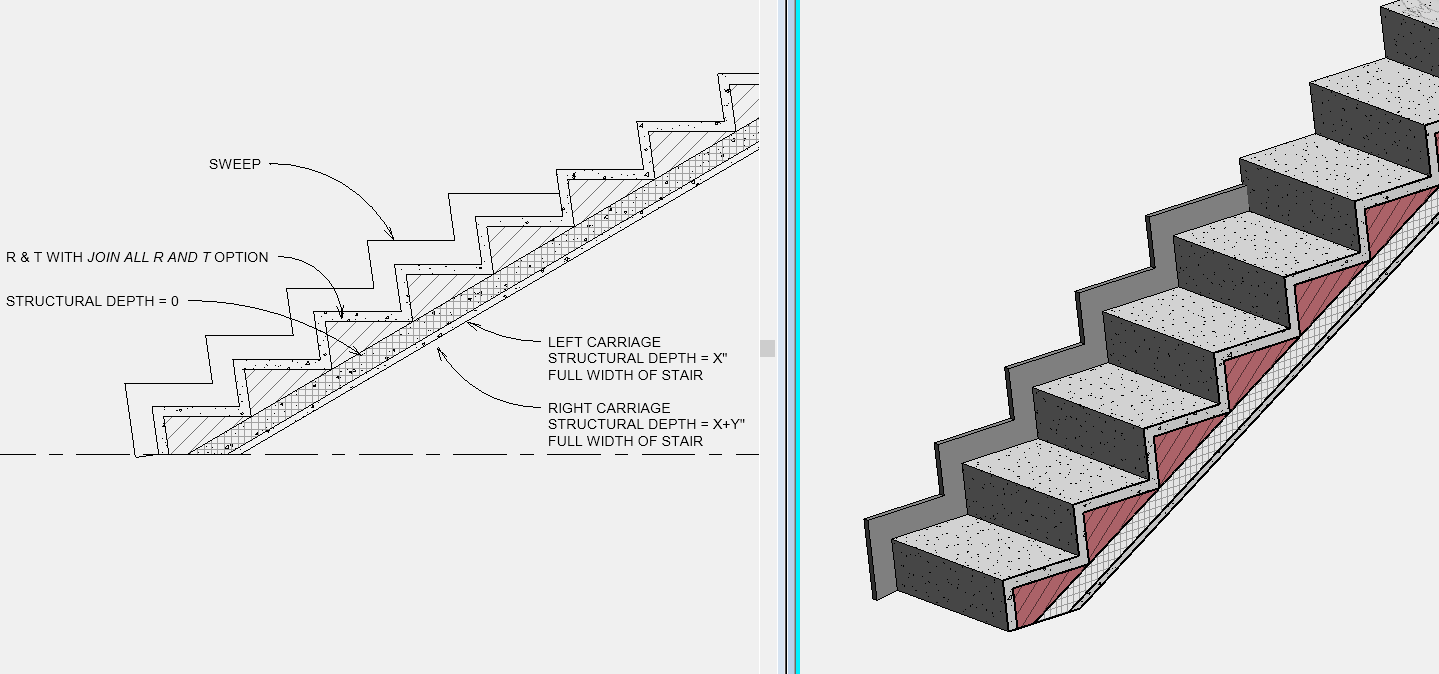

If it really needs to be modeled (vs detailing) and If you don’t mind a very minor hacking…

Attached Images

Attached Files 152878_STAIR.rvt

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

That's some hacking - good job.

This user is offline

phongaigigi

active

Joined: Tue, Feb 7, 2017
0 Posts
No Rating

Thanks for your help. But I think too complicated to make a classic architecture detail. Imagine, what happend when you need adjust your staircase when you follow that way?

I imagined about revit is a software help me solved all trouble in my job. But not, hopeless.

This case just a small case make me confused about revit.

Anyway, thanks for your help.
