Forums >> Revit Building >> Technical Support >> Colouring of Generic Model Patern Based Wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 10, 2017 at 4:12:14 PM | Colouring of Generic Model Patern Based Wall

#1

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating


Hi everyone,

I'm new to Revit and new to this community as well, plus English isn't my first language so please bare with me.

I'm working with Revit Architecture 2017.

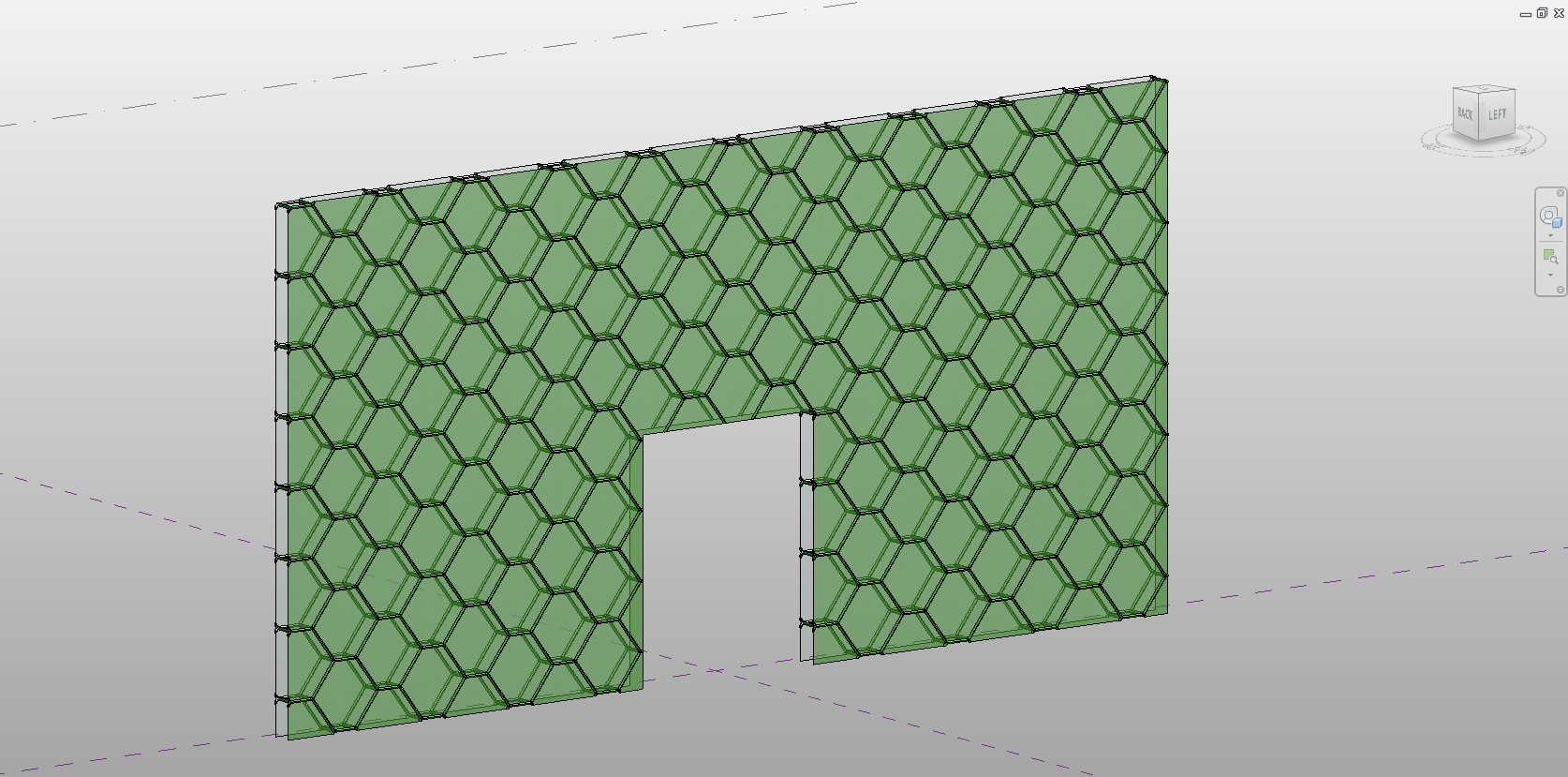

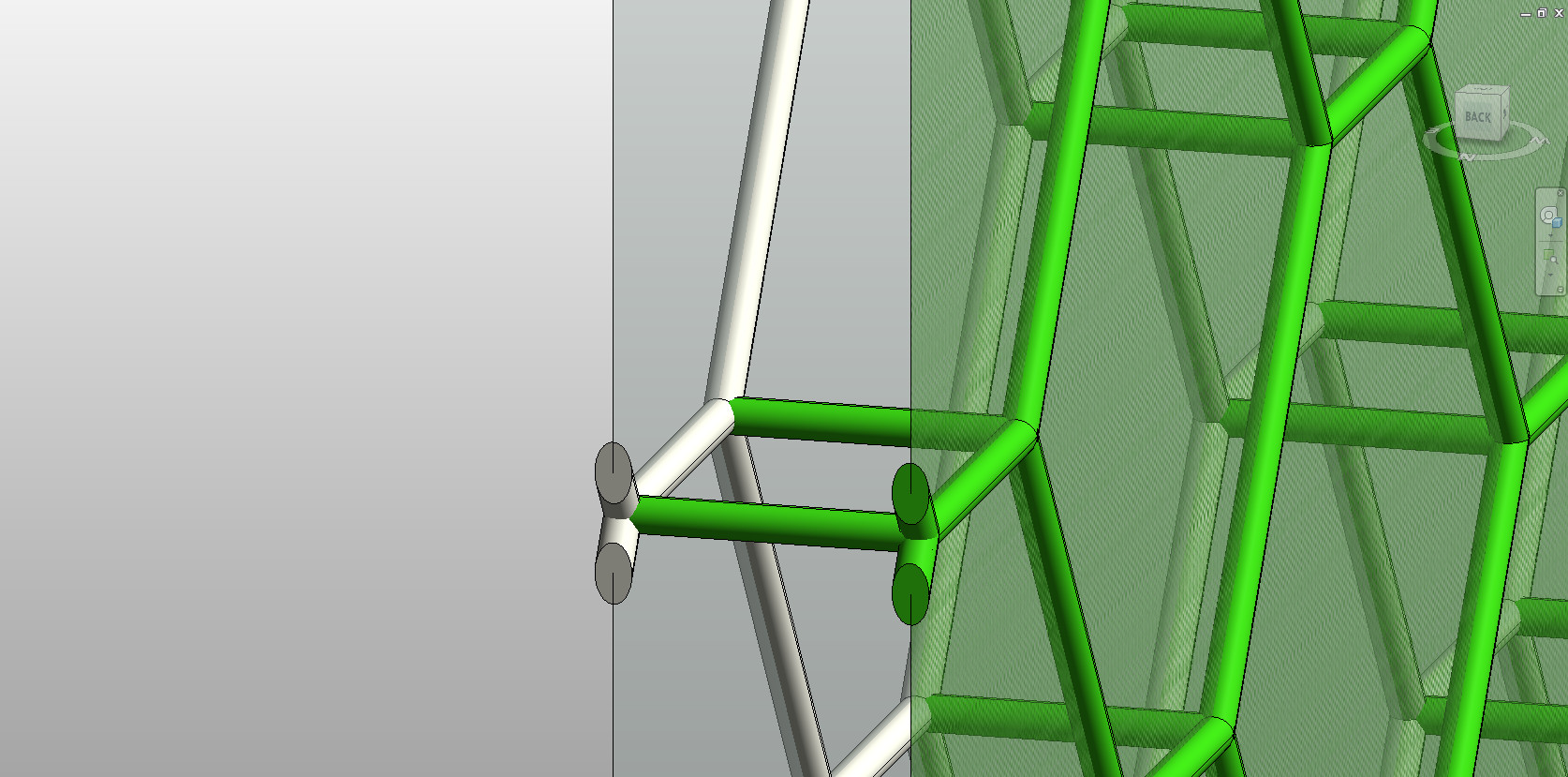

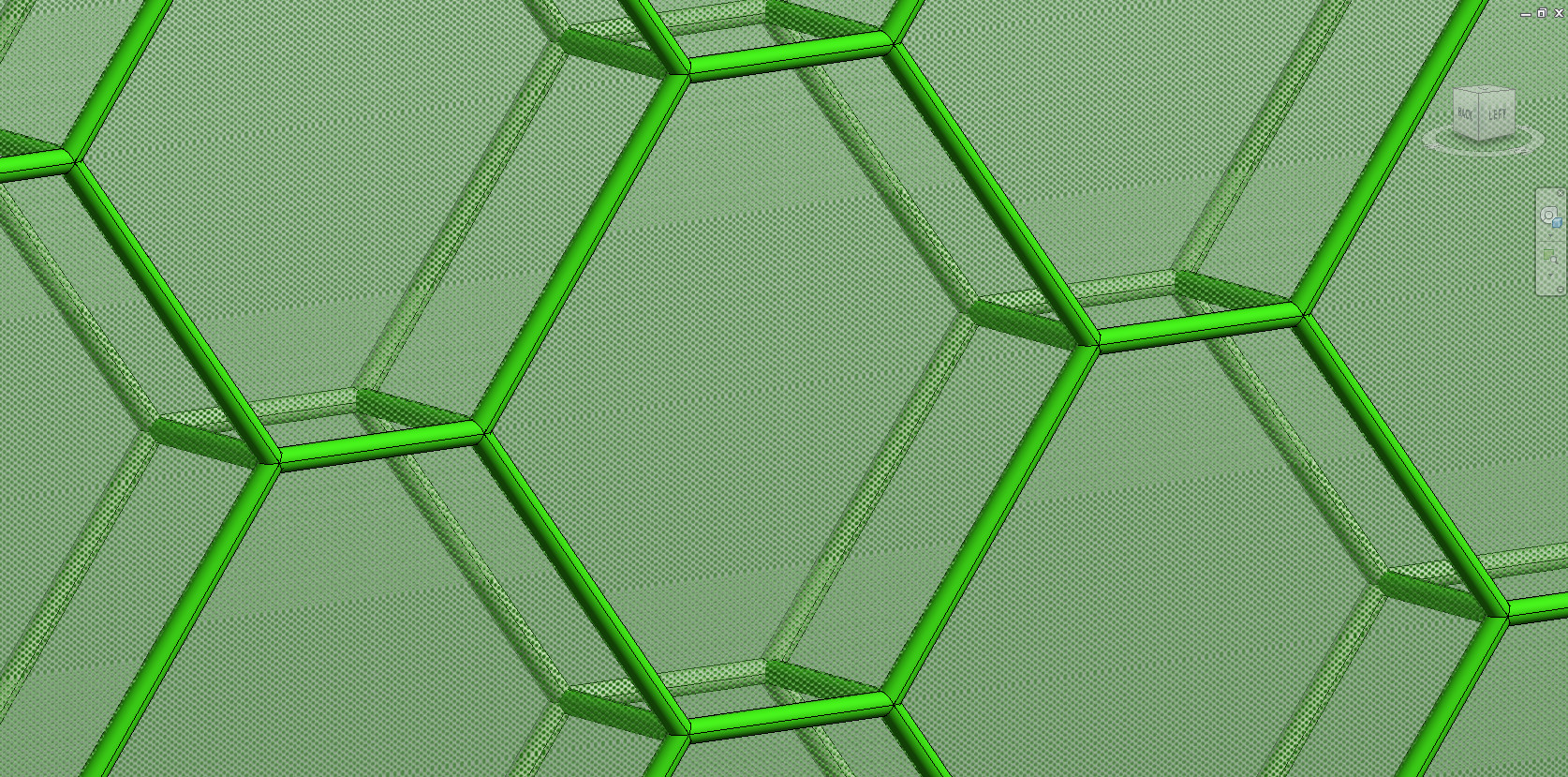

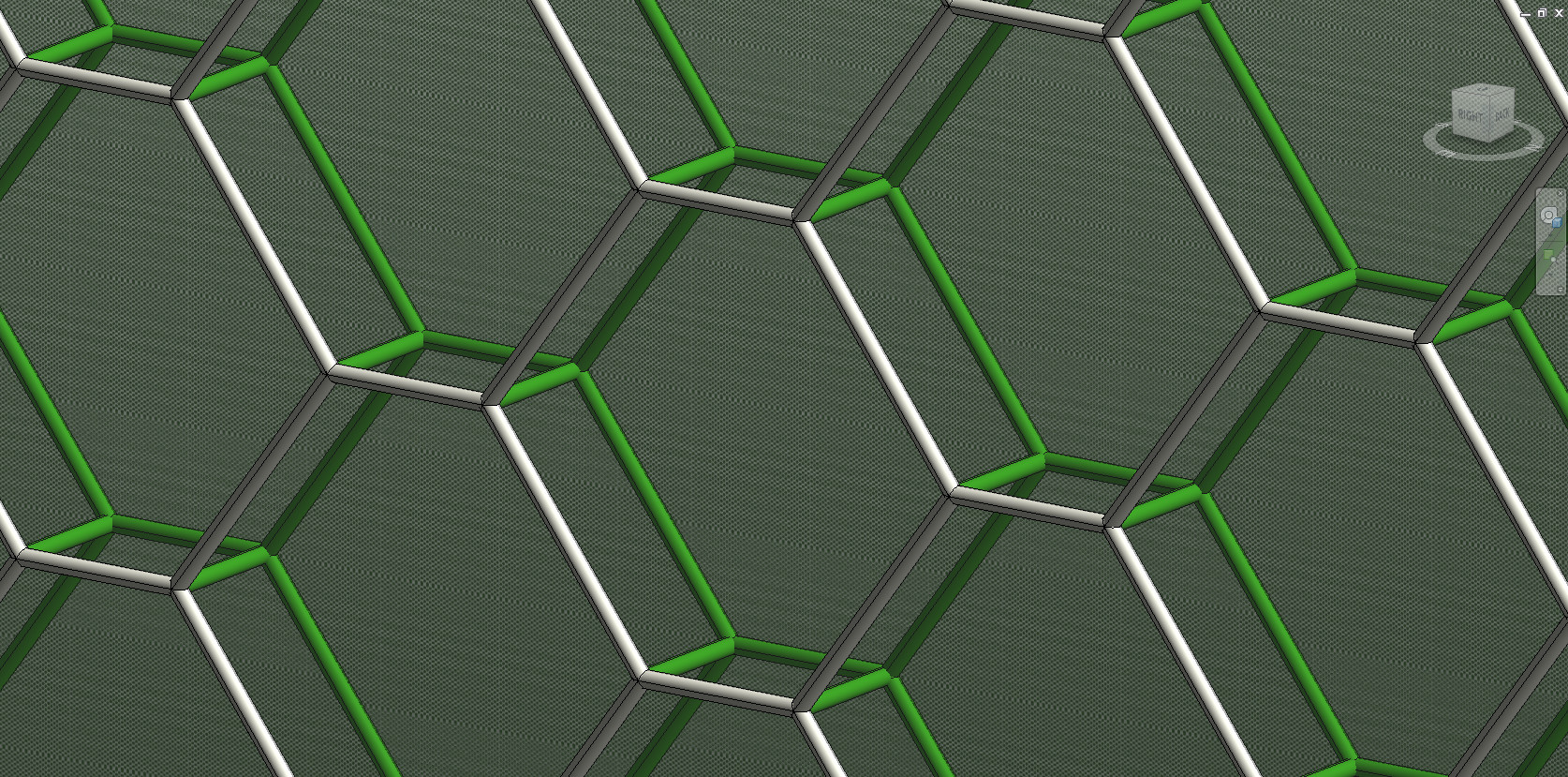

I created a hexagonal wall pattern in the conceptual massing place with the help of the Metric Generic Model Pattern Based family. It is a curtainwall with a steel mesh front of the curtain wall. Both pattern of the curtainwall and the mesh is identical (please see the attached snaps).

What I would like to do is to colour the mesh with 2 different colours front of the curtainwall so that I could draw a dividing line which follows the pattern.

How can I do that?



Attached Images


This user is offline



Tue, Jan 10, 2017 at 4:30:46 PM | Colouring of Generic Model Patern Based Wall

#2

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating

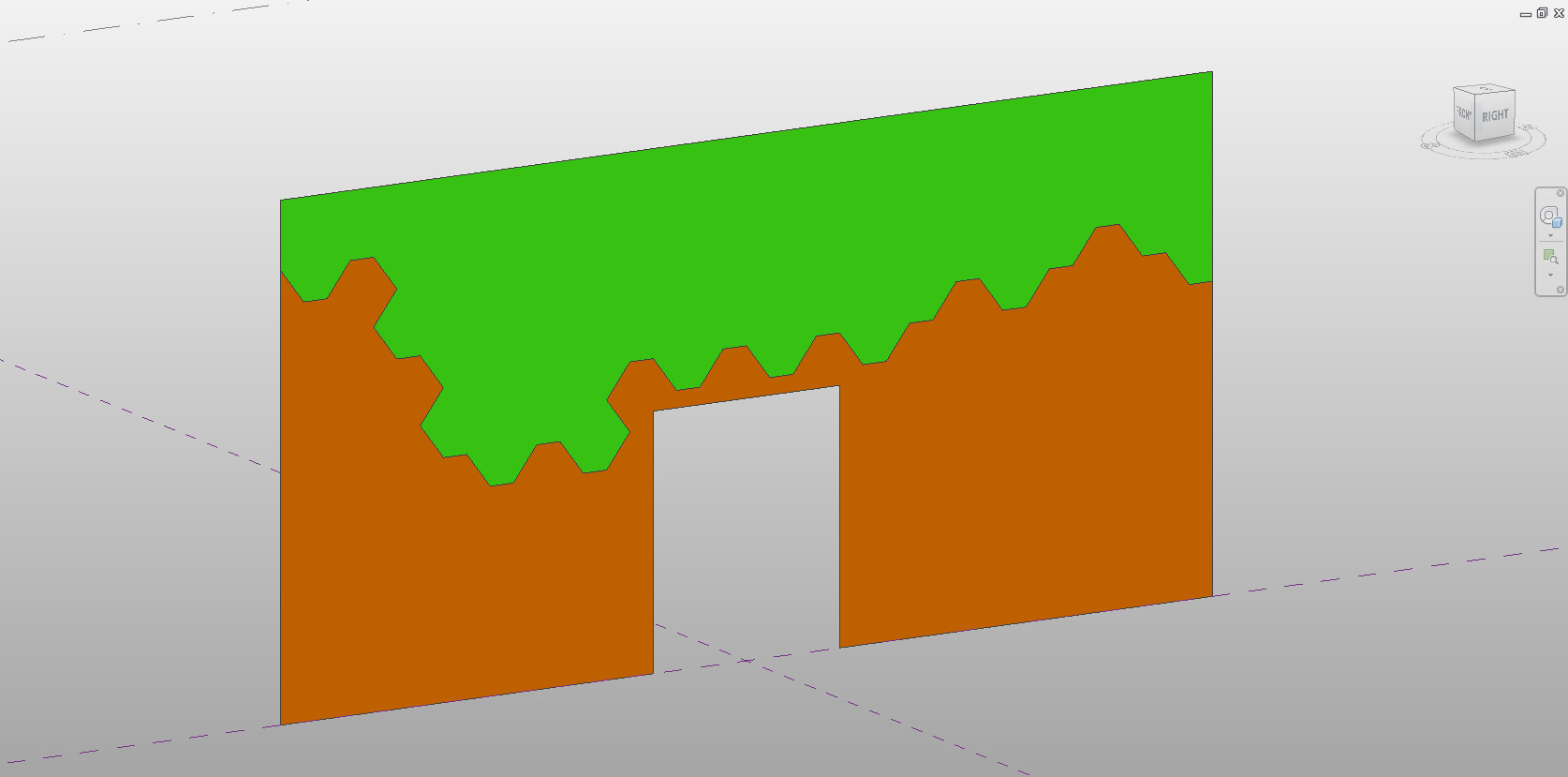

This is how I'd like to colour that wall pattern I created: along a dividing line that follows the pattern. And obviously just the mesh fron of the curtain wall.



Attached Images


This user is offline



Tue, Jan 10, 2017 at 7:21:26 PM | Colouring of Generic Model Patern Based Wall

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 296 Votes


You would have to split the wall along that line and add a different model material on each side.


This user is offline



Tue, Jan 10, 2017 at 7:57:43 PM | Colouring of Generic Model Patern Based Wall

#4

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating

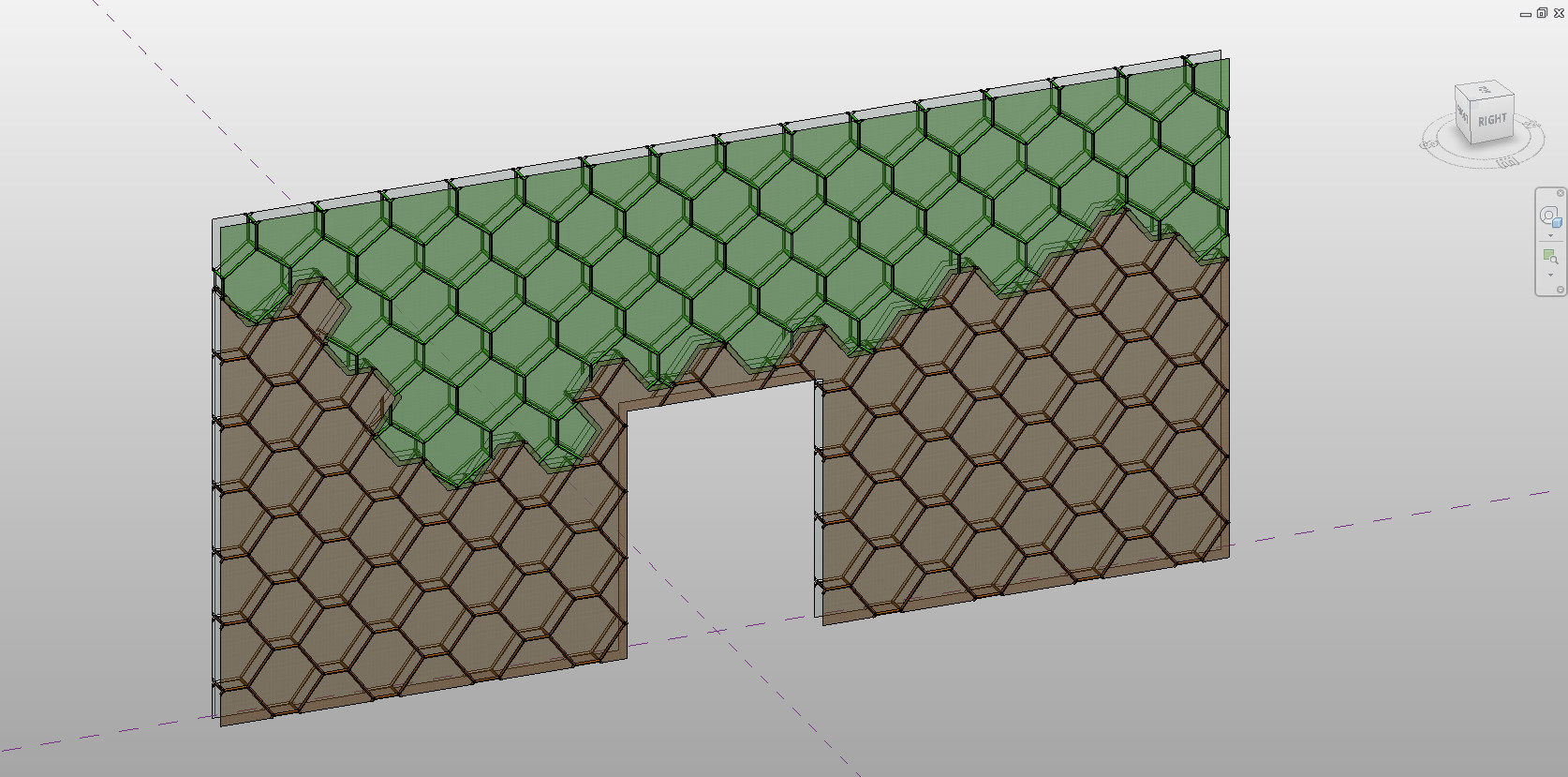

Hi WWHub, thanks for the reply. I did that - that was my first initial though - but the problem is that the pattern is breaking up.

I can't fit them... any thoughts?



Attached Images


This user is offline



Tue, Jan 10, 2017 at 10:24:22 PM | Colouring of Generic Model Patern Based Wall

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 296 Votes


The pattern is not breaking up.   Assuming these materials are built correctly with an associated 2D pattern, and you will probably have to move them to match up correctly on the line working in a normal elevation view.   NOT 3D!.


This user is offline



Wed, Jan 11, 2017 at 7:06:35 PM | Colouring of Generic Model Patern Based Wall

#6

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating


Could you please describe how I should do that? I tried everything I could, searched and searched all over the internet but I haven't been able to find any relevant information about the problem i'm haveing.

I also found out that the reason why my pattern breaks up because I cut the original wall in two parts along that line so these are functioning as two induvidual wall above each other and both calculates their pattern from a different point. Is there a way I could solve this problem?


This user is offline



Wed, Jan 11, 2017 at 7:23:23 PM | Colouring of Generic Model Patern Based Wall

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 296 Votes


Your material should have a model pattern assigned to it that is locked to the 3D material image.  Open an elevation  view - shaded - you will see your model pattern.  This is what you would have used to cplit face the wall material.  Follow the instructions below to move the material - NOT THE WALL.

Read this HELP.


This user is offline



Wed, Jan 11, 2017 at 8:54:16 PM | Colouring of Generic Model Patern Based Wall

#8

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating


I'm sorry, I tried to do it but no luck. Do you mind to take a look at my files? This is what I created so far...



This user is offline



Wed, Jan 11, 2017 at 9:53:22 PM | Colouring of Generic Model Patern Based Wall

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 296 Votes


I looked back at your originl post and I think I misunderstood your process.   My advice was based on a standard type of wall.



I will have to defer to someone else that can help you here.  Sorry


This user is offline



Thu, Jan 12, 2017 at 9:18:17 AM | Colouring of Generic Model Patern Based Wall

#10

benjoe80


active

Joined: Wed, Dec 21, 2016
0 Posts
No Rating


Thanks for trying...


This user is offline



Thu, Jan 12, 2017 at 12:31:33 PM | Colouring of Generic Model Patern Based Wall

#11

Elnazer2


active

Joined: Thu, Feb 18, 2016
0 Posts
5 Stars: 1 Votes


i dont know if i got your question right but if you need to separate 2 part with 2 different colors , you can make 2 types of the curtain panel each with a different material and assign each type on the designated area of the wall , but you will be constained with the spacings of the panels



hope this helps


This user is offline



Thu, Jan 12, 2017 at 6:24:32 PM | Colouring of Generic Model Patern Based Wall
