Forums >> Revit Building >> Technical Support >> Sweep Created in wall type doesn't always mitre properly - Help!

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 9, 2017 at 2:42:38 PM | Sweep Created in wall type doesn't always mitre properly - Help!

#1

Dakota63


active

Joined: Mon, Jan 9, 2017
0 Posts
No Rating


I am using revit 2017.  I created my wall type and added a custom wall sweep. Some of them mitre correctly and some don't - I am not sure what I did right to make it work or what I am doing wrong.  I have attached two pictures to show what is happening.  I have been searching for days.  I am also a bit of a newbie.



Attached Images


This user is offline



Mon, Jan 9, 2017 at 3:53:48 PM | Sweep Created in wall type doesn't always mitre properly - Help!

#2

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4 Stars: 4 Votes


In plan have you checked to make sure the grip ends of those 2 sweeps are connected?


This user is offline



Mon, Jan 9, 2017 at 9:43:50 PM | Sweep Created in wall type doesn't always mitre properly - Help!

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 299 Votes


These are in the wall definition, not added to the walls as wall sweeps?  There is a difference.


This user is offline



Tue, Jan 10, 2017 at 2:04:35 PM | Sweep Created in wall type doesn't always mitre properly - Help!

#4

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4 Stars: 4 Votes

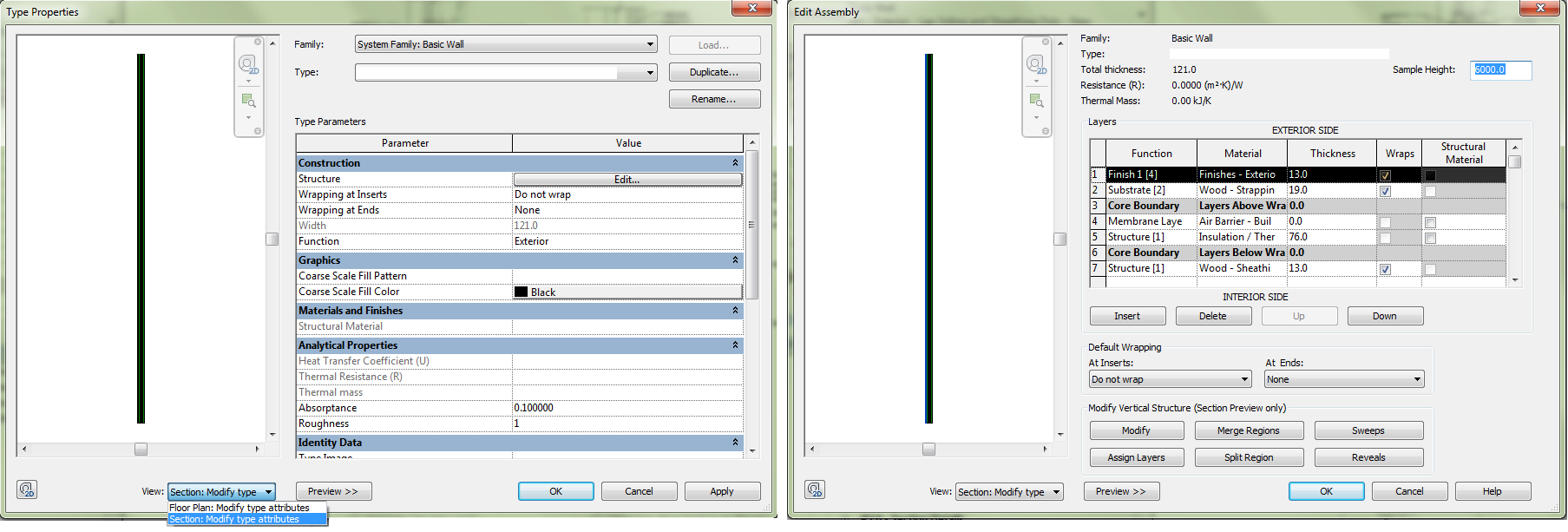

As WWHub said you can have a sweep as part of the wall definition. To do so you need to edit the wall type, expand the preview button at bottom left, make sure you are looking at the section view (default is plan view), then click the edit structure button. There you can add sweeps to the wall definition. See attached image



Attached Images


This user is offline



Tue, Jan 10, 2017 at 2:32:00 PM | Sweep Created in wall type doesn't always mitre properly - Help!

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 299 Votes


If you are doing in-place wall sweeps rather than wall defined, you must do them as one entity - not seperate sweeps.  Start the process and continue placing legs until finished.  If you need to, you can always pick a sweep that is alreadfy in-place and you will be given the option to add new legs or remove them.  These sweeps will always miter correctly and even close properly at the end if a full loop is picked.
