Hi.

I try to make a roof and I cant manage to make it like I want.

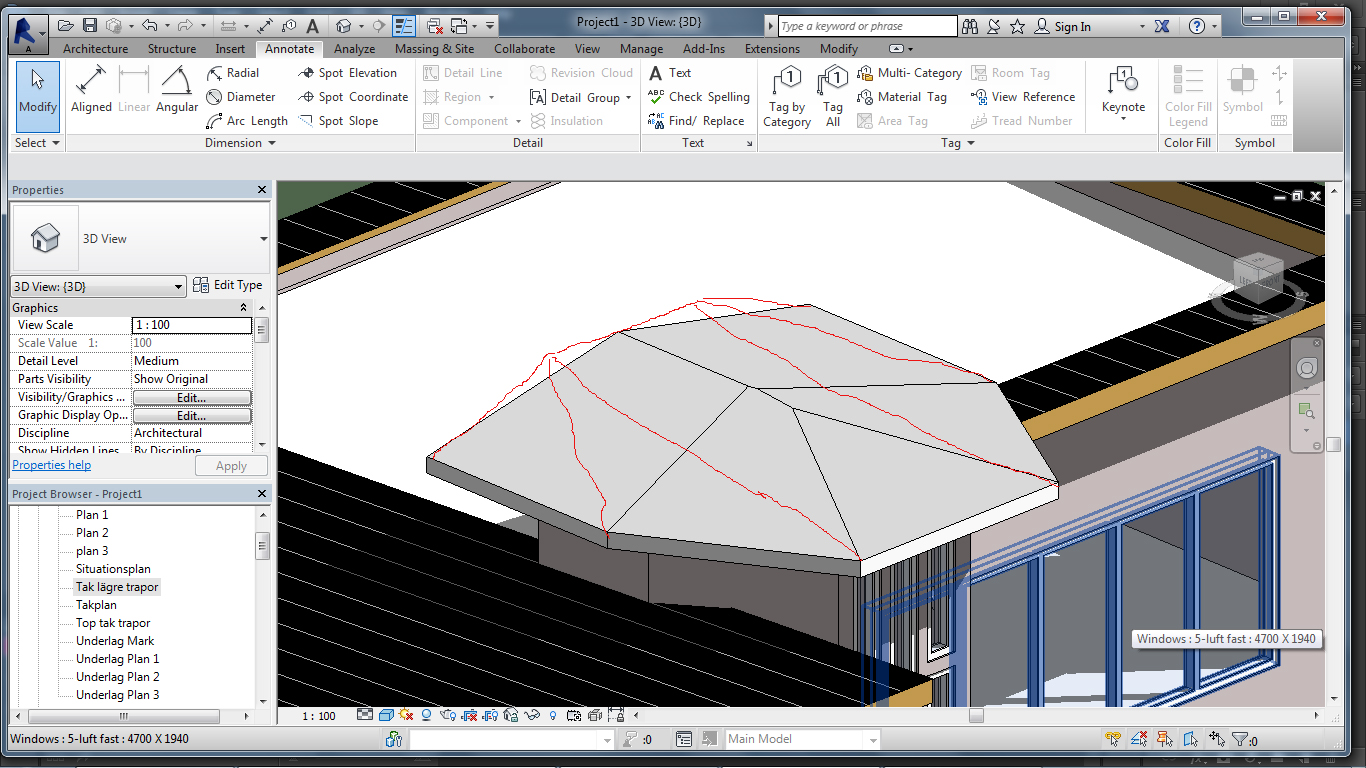

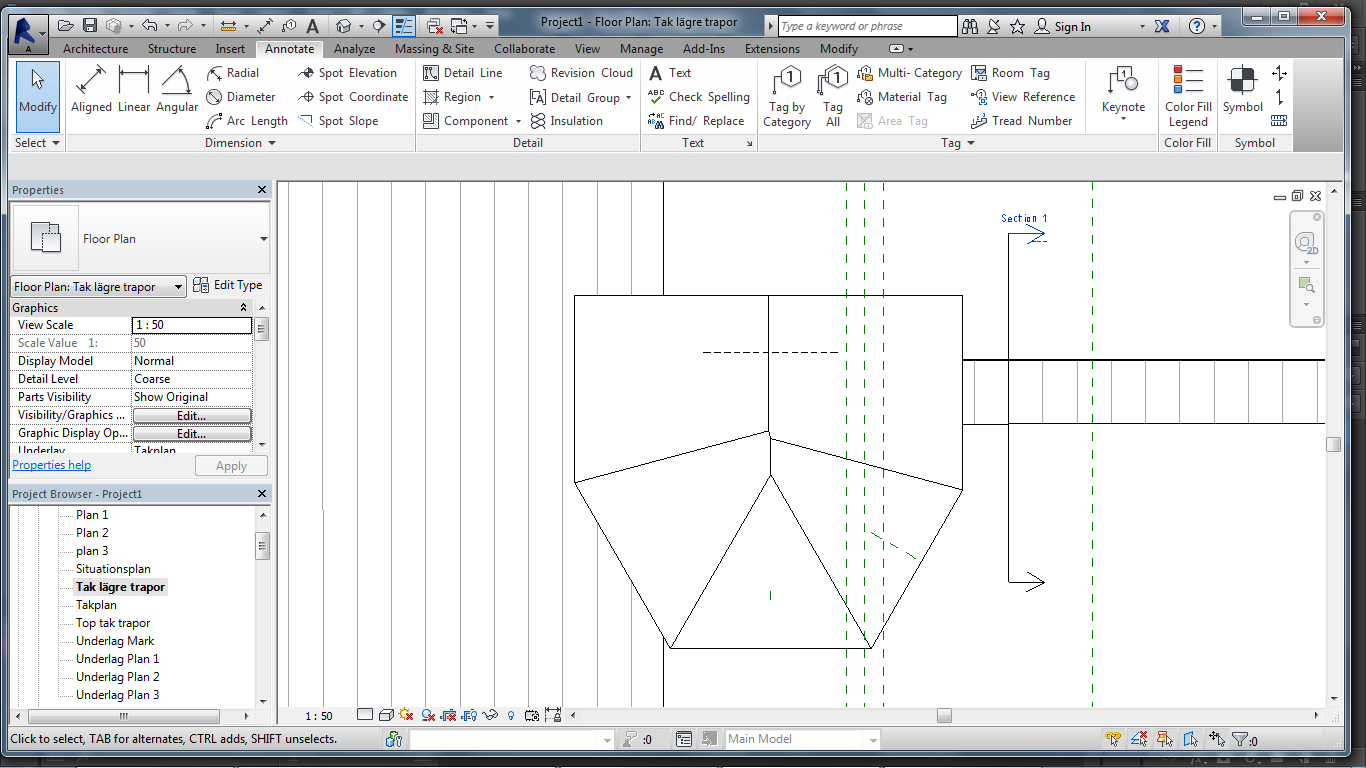

I include few photos like Revit make the roof and with red lines what I would like to make it.

The lines 1,2,3,4 I have put them only to help you understand better what I want to make.

Can anybody help me or ask me if something is not very clear?

Thank you and have a happy new year.



Edited on: Fri, Dec 30, 2016 at 5:28:28 PM

Attached Images

152225_With_red_lines_what_I_want_to_do..jpg152225_This_like_the_roof_SHOULD_like_if_watched_from_the_front..jpg152225_The_roof_like_it_comes_out.jpg152225_I_have_put_the_lines_1234_only_to_help_you_understand_what_I_want_to_do.jpg

This user is offline



Fri, Dec 30, 2016 at 10:44:08 PM | I have difficulty to make a roof like I want.

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

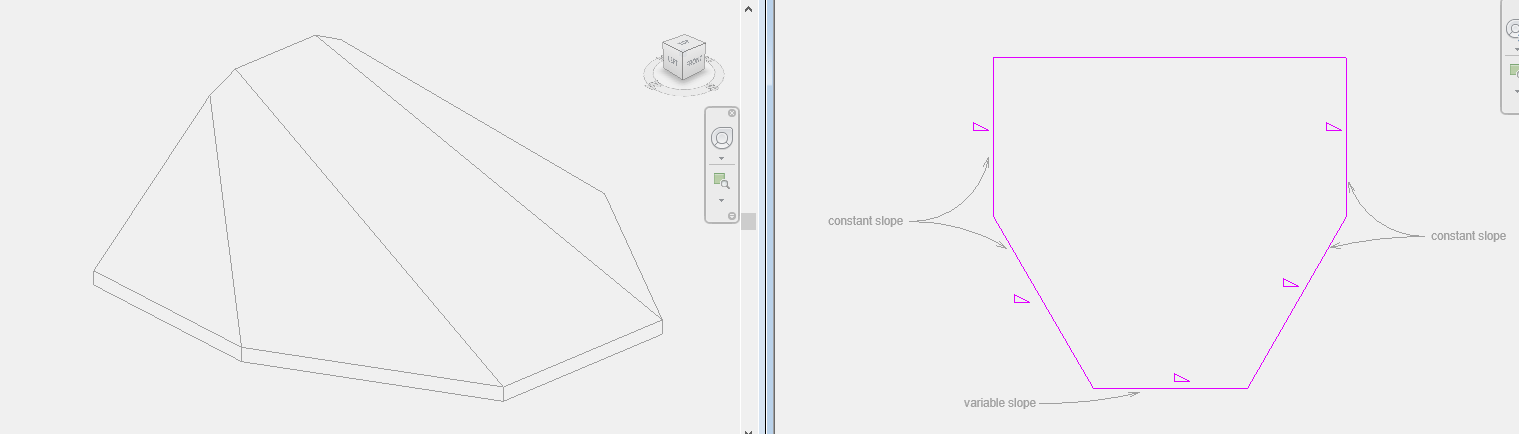

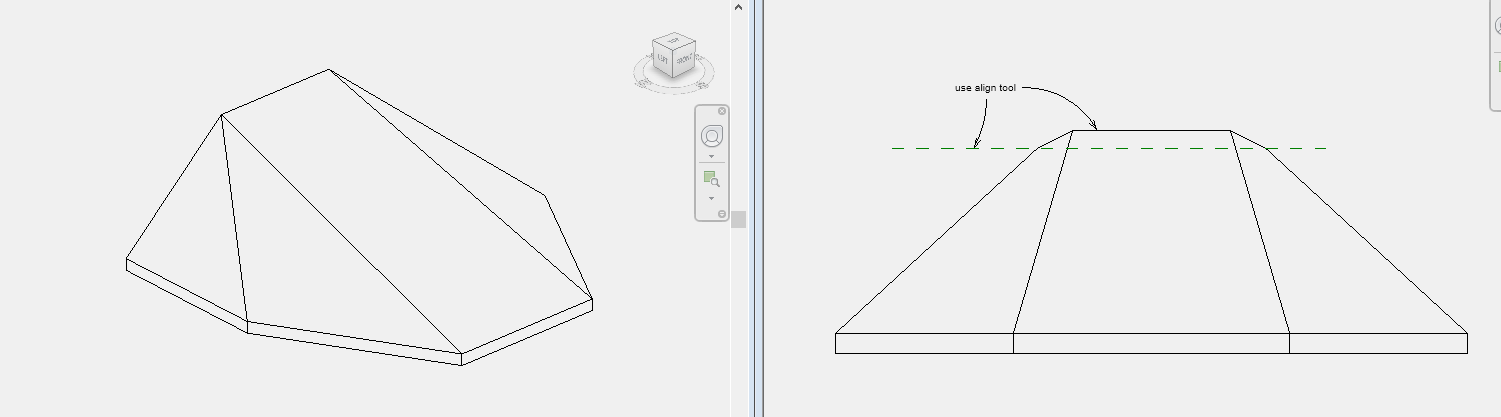

Start with the shape as on pic 1. Set your constant slope as desired. Don’t worry about the variable slope, just make sure you get the flat ridge at the top, exactly as per pic 1. In the elevation view, use align tool to adjust the height as per pic 2.



Attached Images


This user is offline



Sat, Dec 31, 2016 at 4:09:49 AM | I have difficulty to make a roof like I want.

#3

giovanni22


active

Joined: Wed, May 14, 2014
0 Posts
No Rating


Thak you very much. Hou did you managed to make it so quickly?  It took while for me change here and there the various angles.

Have a happy new year.


This user is offline



Sat, Dec 31, 2016 at 10:29:17 AM | I have difficulty to make a roof like I want.

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


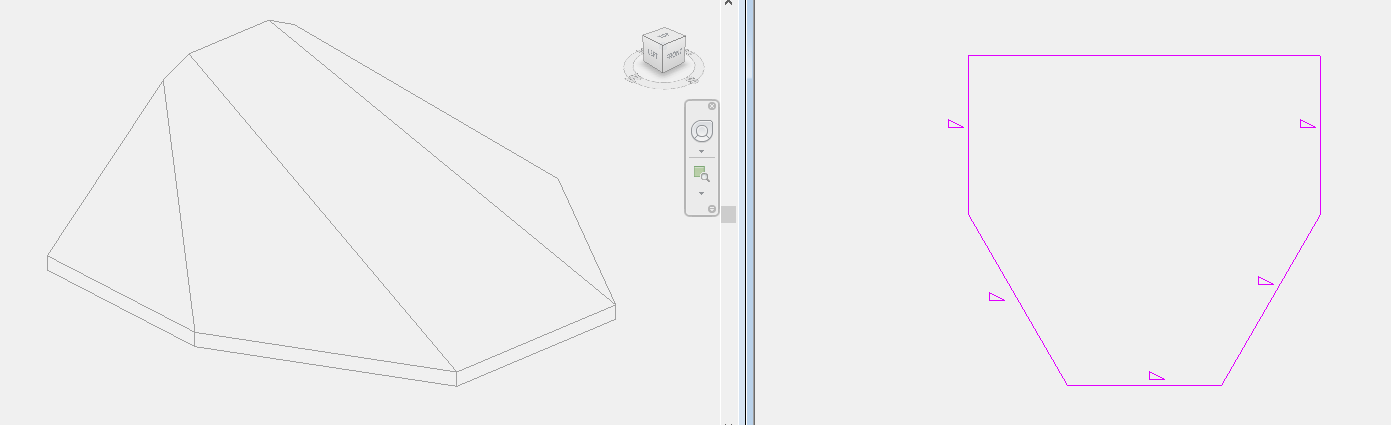

I’m sorry, …I just realized I’ve posted wrong pic #1. The correct one, could’ve made things easier I suppose. I’m glad you made it work though.



Happy New Year to you too. Cheers.
