Forums >> Community >> Newbies >> Roof Issues (Dutch Roof?)

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 9, 2016 at 7:27:45 PM | Roof Issues (Dutch Roof?)

#1

Bennydablade


active
Bennydablade Avatar

Joined: Mon, Aug 24, 2015
0 Posts
No Rating

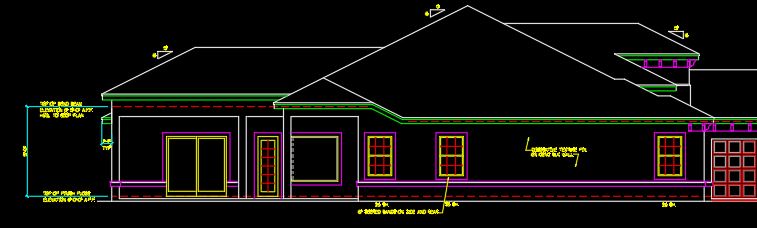

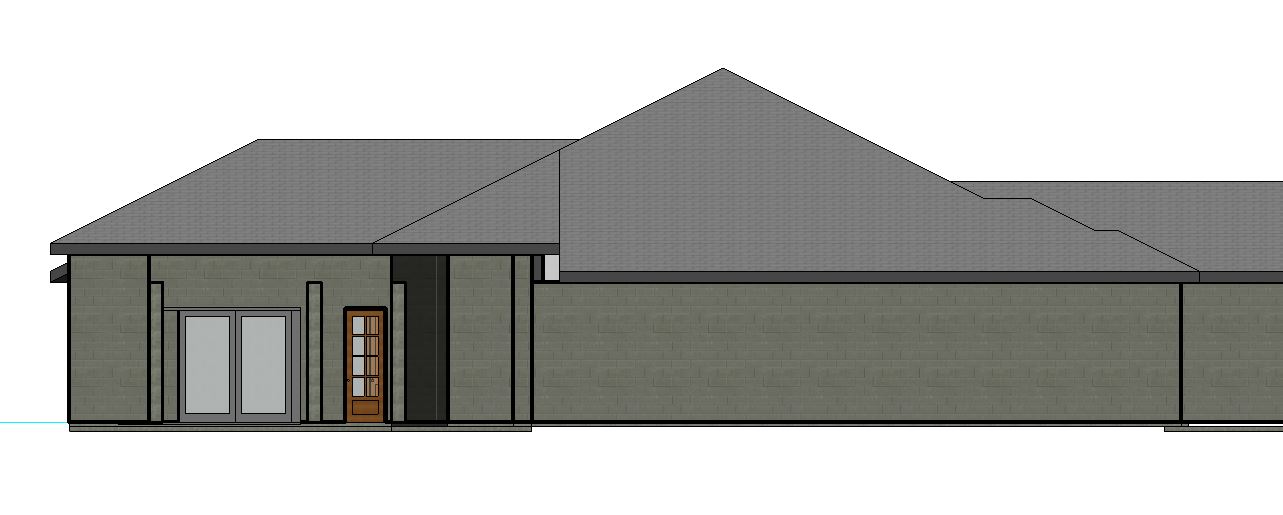

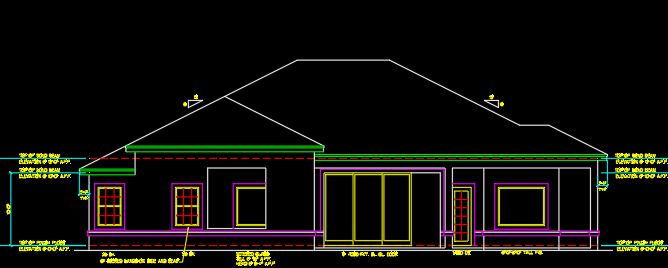

I am creating a residential roof where the lanai roof is higher than the rest. I have combed the forums looking for a solution and found the Dutch Roof/ Gable, which seems close but not quite right in that I can offset from base. The problem is that it doesn't make it a smooth transition. I have attached a few pics of what I have and what I am trying to accomplish.



Attached Images


-----------------------------------

DO or DO NOT, There is no try!

This user is offline



Sat, Dec 10, 2016 at 1:18:50 AM | Roof Issues (Dutch Roof?)

#2

mansell5


active

Joined: Sun, Jun 14, 2009
68 Posts
3.5 Stars: 4 Votes


check out this video on youtube

https://www.youtube.com/watch?v=gd5zXYCubts



also search up cadclips,

by darryl gregoire, he has heaps of very helpful learning videos.


This user is offline



Sat, Dec 10, 2016 at 11:49:07 AM | Roof Issues (Dutch Roof?)

#3

archigrafix


active

Joined: Fri, Jul 5, 2013
38 Posts
5 Stars: 4 Votes


Thank you for the video.


-----------------------------------

Marc Faber

BIM Solutions Developer

goto.archi | Oslo, Norway

revit trees | revit cars | revit people | revit graphics | revit plugins

This user is offline

View Website

Mon, Dec 12, 2016 at 2:57:50 PM | Roof Issues (Dutch Roof?)

#4

Bennydablade


active
Bennydablade Avatar

Joined: Mon, Aug 24, 2015
0 Posts
No Rating

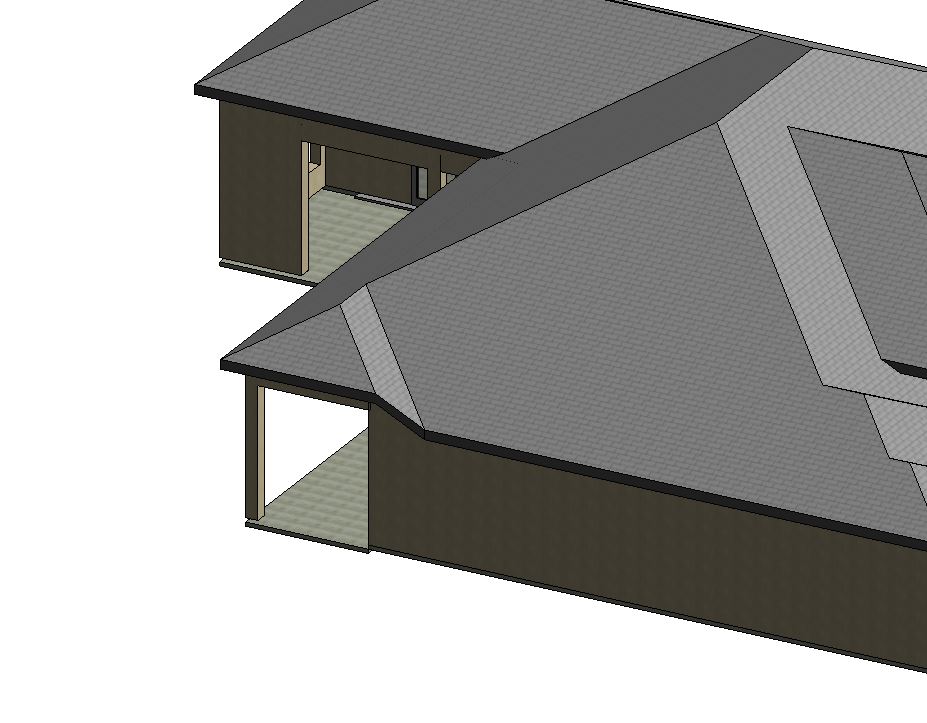

mansell5 Thanks for the link, I am familiar with joining roofs and cutting the geometry, and that was very informative. The issue I am having is the facia folllowing the slope if the roof "up" to the next level. I created a fill region to show what I am trying to accomplish.





Attached Files

-----------------------------------

DO or DO NOT, There is no try!

This user is offline



Mon, Dec 12, 2016 at 5:08:49 PM | Roof Issues (Dutch Roof?)

#5

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4.5 Stars: 10 Votes


Are you trying to create this all as one roof? This can be done quite easily by making the roof out of just a few different pieces.


This user is offline



Mon, Dec 12, 2016 at 8:02:10 PM | Roof Issues (Dutch Roof?)

#6

Bennydablade


active
Bennydablade Avatar

Joined: Mon, Aug 24, 2015
0 Posts
No Rating

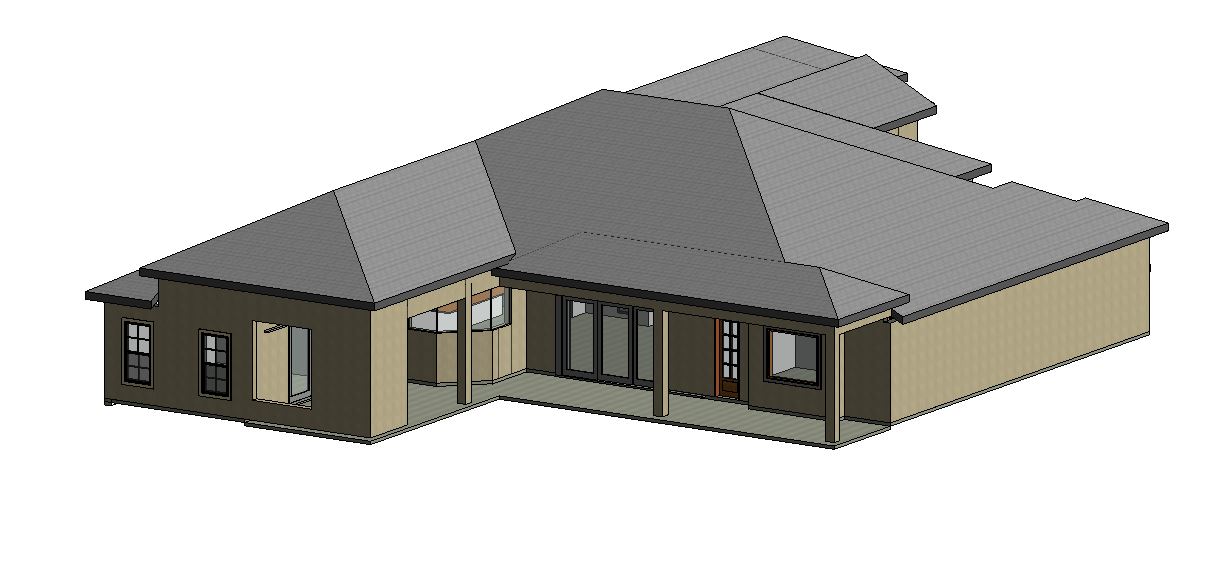

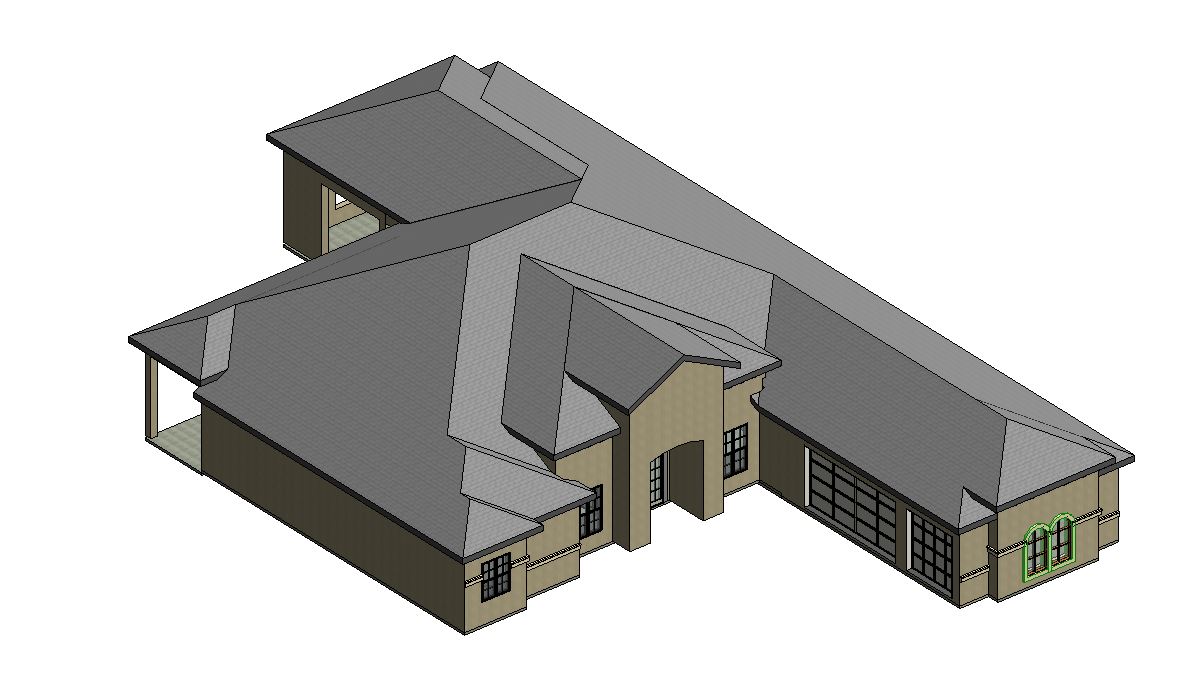

marmiketin1 I have created the whole roof (see attached images) with 7 different roofs, which have been joined and cut to create the one big roof. The previous post shows a fill region depicting what I am trying to accomplish. Do I need to create another roof to get the sloped fascia I am looking for?

Attached Images


-----------------------------------

DO or DO NOT, There is no try!

This user is offline



Mon, Dec 12, 2016 at 8:13:59 PM | Roof Issues (Dutch Roof?)

#7

Bennydablade


active
Bennydablade Avatar

Joined: Mon, Aug 24, 2015
0 Posts
No Rating

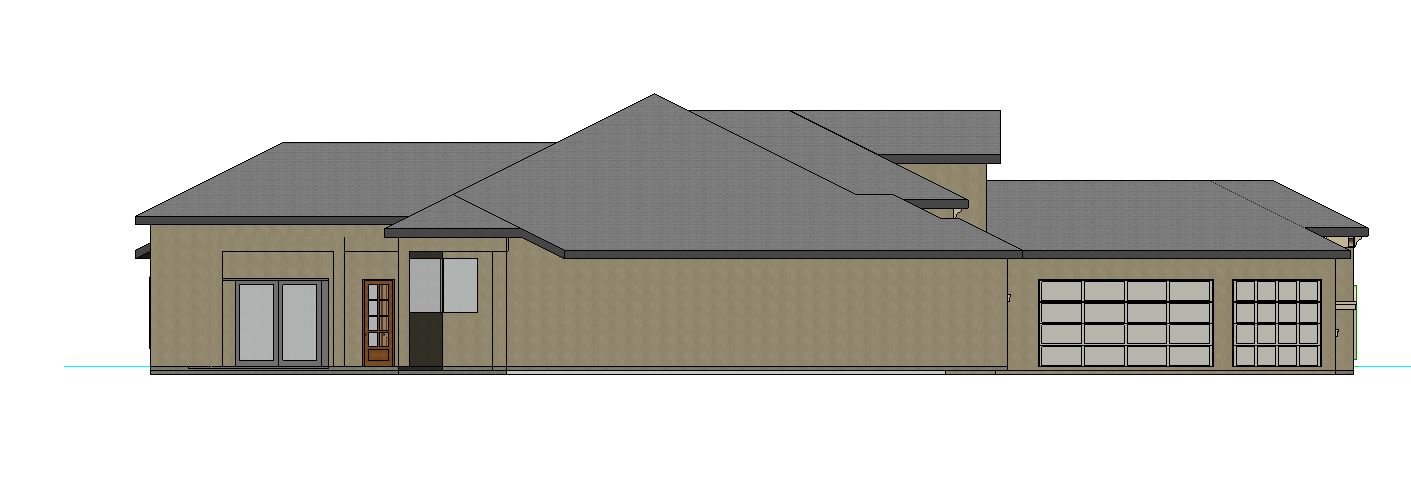

Figured it out! The final piece of my puzzle was done as a roof by extrusion to create the sloped fascia I was looking for. Thanks for the help!! Until next time...





Attached Images


-----------------------------------

DO or DO NOT, There is no try!

This user is offline



Fri, Dec 16, 2016 at 10:24:00 PM | Roof Issues (Dutch Roof?)

#8

misobim


active

Joined: Fri, Dec 16, 2016
0 Posts
No Rating


Thanks for linking to that video!


This user is offline
