Hello,

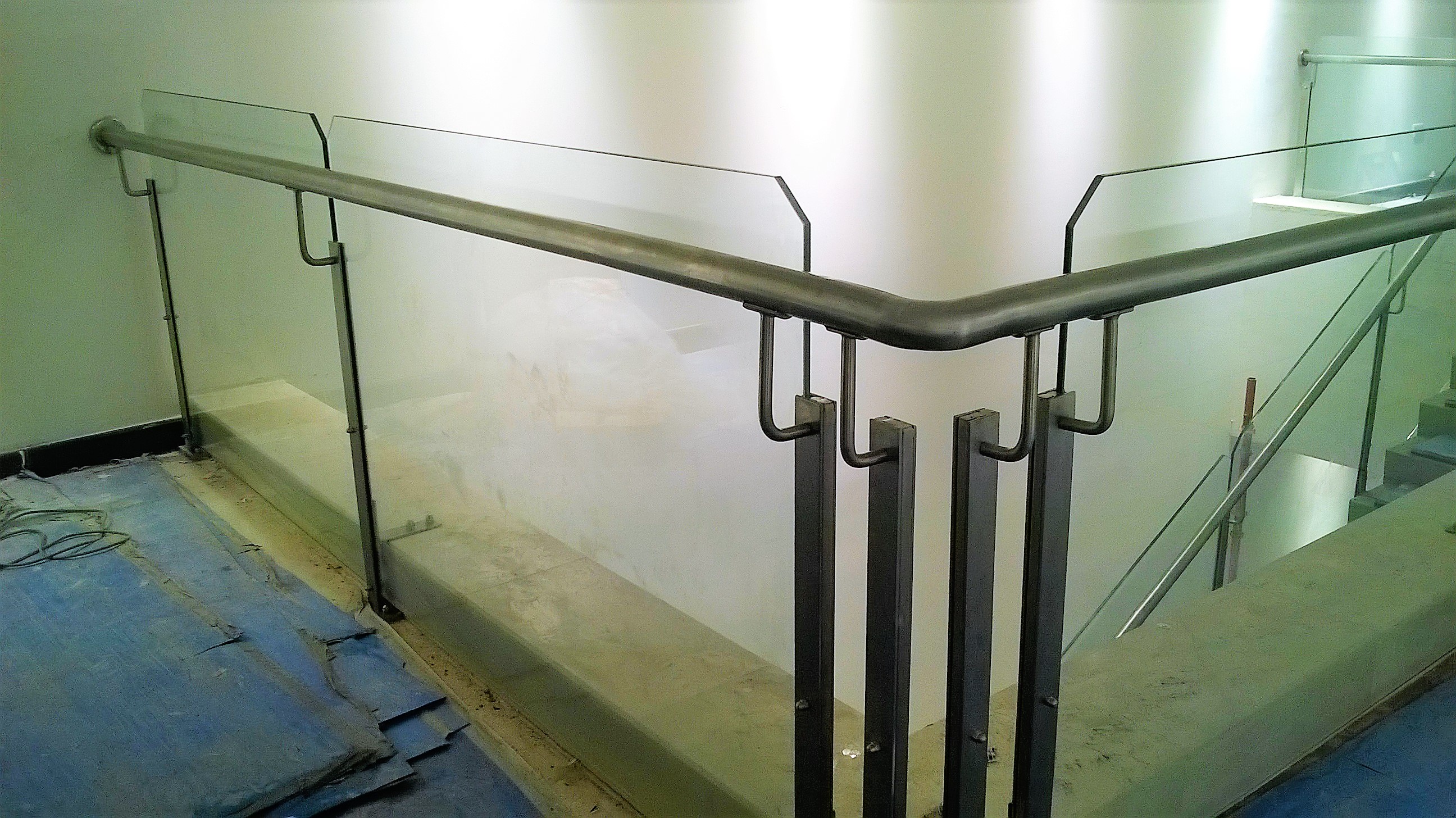

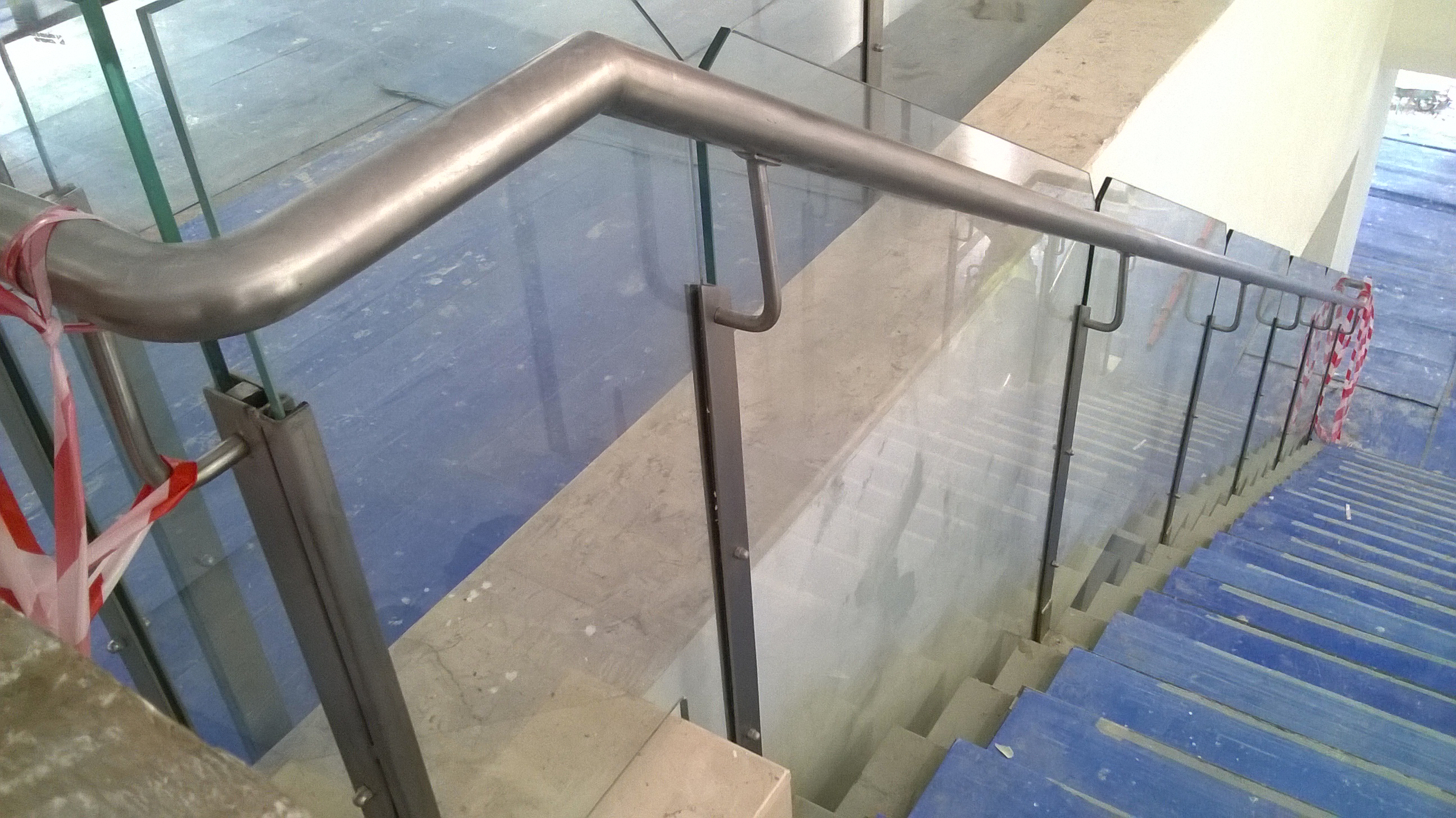

I want to create a handrail like shown in the attachment.

The important things to be considered are :

1. Steel pipe handrail in some specific distance from the glass panel

2.Support from steel pipe handrail to vertical post of the handrail

3. Corner joints to be continued either in sharp or filleted shape. ( Mainly it should be continued from level 0 to whereever it ends)

Note : If you can create a simple model for my question and upload it would be simple enough to understand

Thank you.

Attached Images

This user is offline

archigrafix

active

Joined: Fri, Jul 5, 2013
38 Posts

Another task that is a strong candidate for model in place?

-----------------------------------

Marc Faber

BIM Solutions Developer

goto.archi | Oslo, Norway

This user is offline

View Website

Dheena14asian

active

Joined: Sat, Oct 8, 2016
0 Posts
No Rating

Hi,

Thanks for you support.

i have used model in place as you said.

But it was taking lot of time for me.

Thanks.

Attached Images

This user is offline

Dheena14asian

active

Joined: Sat, Oct 8, 2016
0 Posts
No Rating

This user is offline
