Forums >> Revit Building >> Technical Support >> Cleaning up a handrail/ stringer join

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Nov 3, 2016 at 4:21:06 PM | Cleaning up a handrail/ stringer join

#1

kellyd94


active

Joined: Fri, Apr 20, 2012
6 Posts
No Rating


Hello all,

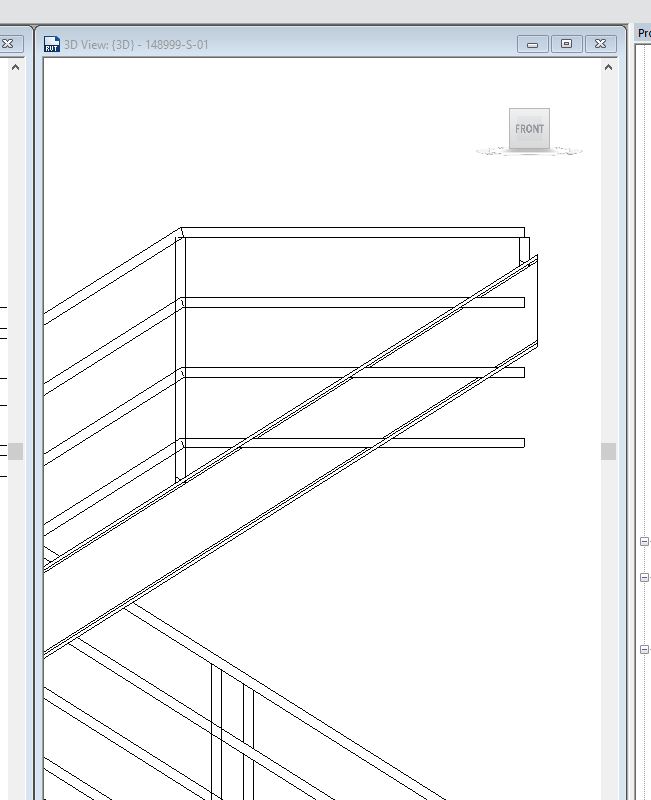

I am using '15 and I am having trouble with a handrail (weird, huh?). Does anyone know if there is a way to "trim" a handrail so it matches a stringer profile? I have attached a screenshot and basically I need to trim the rails at the stringer, instead of having them continue through the stringer. Any help would be much appreciated. Thanks!



Attached Images


This user is offline



Thu, Nov 3, 2016 at 6:09:06 PM | Cleaning up a handrail/ stringer join

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


What are you doing there?  There would be no flat handrail over the sloping stringer.


This user is offline



Thu, Nov 3, 2016 at 6:16:55 PM | Cleaning up a handrail/ stringer join

#3

kellyd94


active

Joined: Fri, Apr 20, 2012
6 Posts
No Rating


The stairs lead up to an access hatch and the handrails cannot extend above said hatch. Please see the attached image. Thank you.



Attached Images


This user is offline



Thu, Nov 3, 2016 at 6:49:39 PM | Cleaning up a handrail/ stringer join

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


The standard handrail will not do what you want here.   You will probably have to do something in place for that portion of the railing.


This user is offline



Sat, Nov 26, 2016 at 7:00:38 AM | Cleaning up a handrail/ stringer join

#5

Dheena14asian


active

Joined: Sat, Oct 8, 2016
0 Posts
No Rating


Try model in place.

You can model as you want.




This user is offline



Sat, Nov 26, 2016 at 7:04:26 AM | Cleaning up a handrail/ stringer join

#6

Dheena14asian


active

Joined: Sat, Oct 8, 2016
0 Posts
No Rating


Split the railing then remove the portion to repair.

Use model in place to create a new one ( You can apply material to it later )




This user is offline
