Forums >> Revit Building >> Technical Support >> Problem: wall's extrusion profile covers windows and doors

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Oct 26, 2016 at 8:42:24 AM | Problem: wall's extrusion profile covers windows and doors

#1

unnbe


active

Joined: Wed, Jan 13, 2016
0 Posts
No Rating


Hi everyone!

I've added an extrusion profile to a wall, to create a sort of boiserie (h: 2 meters). Actually, this profile "close" every opening of the room (windows and doors). From the extrusion profile dialog box I've checked "cuttable" but nothing changed...

How can I figure it out?



Thanks


This user is offline



Wed, Oct 26, 2016 at 8:46:51 AM | Problem: wall's extrusion profile covers windows and doors

#2

unnbe


active

Joined: Wed, Jan 13, 2016
0 Posts
No Rating


(I suppose this is depending by the window and door family that I uploaded in my project...)


This user is offline



Wed, Oct 26, 2016 at 2:55:49 PM | Problem: wall's extrusion profile covers windows and doors

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


You must not have done what you said.  The below assumes only one wall - not mutltiple walls.

  1. If you added an extrusion to the wall definition, then that would have been cut automatically by windows or doors.
  2. If you added a wall sweep to the wall then that too would be cut at windows and doors.
  3. So instead, you must have added an in-place sweep.   That will not be cut, you will have to add a void to cut that or use seperate sweeps.

This user is offline



Wed, Oct 26, 2016 at 3:18:05 PM | Problem: wall's extrusion profile covers windows and doors

#4

unnbe


active

Joined: Wed, Jan 13, 2016
0 Posts
No Rating


I made a 100% profile wall extrusion.

Instead, I uploaded a new window familly and it works... So... there should be a problem with the previous familiy...

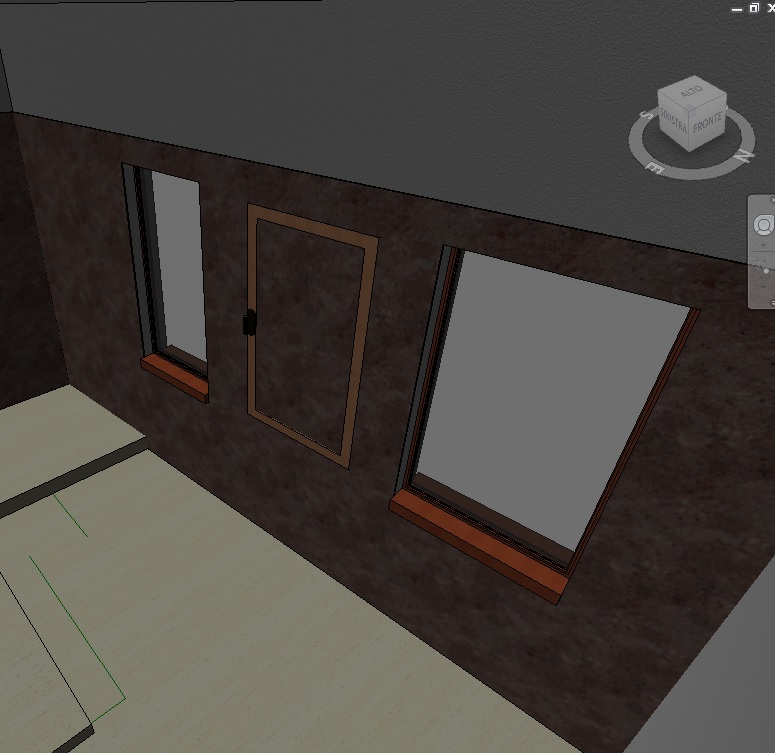

In the picture attached, the "old" window is in the middle.



Edited on: Wed, Oct 26, 2016 at 10:21:50 AM

Attached Images


This user is offline



Wed, Oct 26, 2016 at 3:41:53 PM | Problem: wall's extrusion profile covers windows and doors

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


I guess I don't see the wall extrusion you were having problems with unless you mean the multi-colored area.   If you did an extrusion for this then I have a better solution for you.  Use a thin wall and join that wall to the other wall.   We do that all the time for wall veneers like tile and stone.


This user is offline



Wed, Oct 26, 2016 at 3:47:26 PM | Problem: wall's extrusion profile covers windows and doors

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


Check out this thread for my explanation of using this thin wall.


This user is offline



Wed, Oct 26, 2016 at 3:57:18 PM | Problem: wall's extrusion profile covers windows and doors

#7

unnbe


active

Joined: Wed, Jan 13, 2016
0 Posts
No Rating


Yes, the "multi-colored area" is the stone cladding, that is the profile extrusion.

I will learn your method, many thanks!


This user is offline
