Forums >> Revit Building >> Technical Support >> CURVED WALLS AND CHANGING THE PROFILE

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Apr 14, 2006 at 5:22:49 PM | CURVED WALLS AND CHANGING THE PROFILE

#1

gdoorn


active

Joined: Thu, Jan 26, 2006
118 Posts
1 Stars: 1 Votes


I HAVE A CURVED WALL WITH A GRAND STAIR WRAPPING UP AND AROUND EACH SIDE. HOWEVER THE STAIRS ARE BEING SUPPORTED BY A WALL UNDERNEATH THE OUTER EDGE. I KNOW I CANNOT ATTACH A WALL TO THE UNDERSIDE OF THE STAIR, BUT IT APPEARS LIKE I CA NOT EDIT THE PROFILE EITHER. ARE THERE ANY WAYS TO DO THIS?

This user is offline



Fri, Apr 14, 2006 at 6:13:15 PM | RE: CURVED WALLS AND CHANGING THE PROFILE

#2

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


see MR. Spot tutorial in the tutorials section titled "Triming walls to the underside of stairs using voids" HTH Post edited on 2006-04-14 13:13:35

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Fri, Apr 14, 2006 at 9:13:39 PM | RE: CURVED WALLS AND CHANGING THE PROFILE

#3

gdoorn


active

Joined: Thu, Jan 26, 2006
118 Posts
1 Stars: 1 Votes


thanks, that is exactly what i am looking for. thanks to Mr. Spot too!

This user is offline



Thu, Nov 6, 2014 at 12:14:18 PM | CURVED WALLS AND CHANGING THE PROFILE

#4

Rachit


active

Joined: Mon, Apr 9, 2012
7 Posts
3 Stars: 2 Votes


It indeed is a great technique by Mr. Spot. I have managed to edit the curved walls under the sloping roof. Going further in developing the model I needed to have a few curtain curved curtain walls also that are terminating under the sloping roof. I've tried working on the same principle but it doesn't work. I would like to know a way around the same. Thanks P.S. Any way we could tag Mr. Spot in this conversation for us all to have his input too.

This user is offline



Thu, Nov 6, 2014 at 1:58:51 PM | CURVED WALLS AND CHANGING THE PROFILE

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 369 Votes


You can attach the top of a curtain wall to a reference plane.

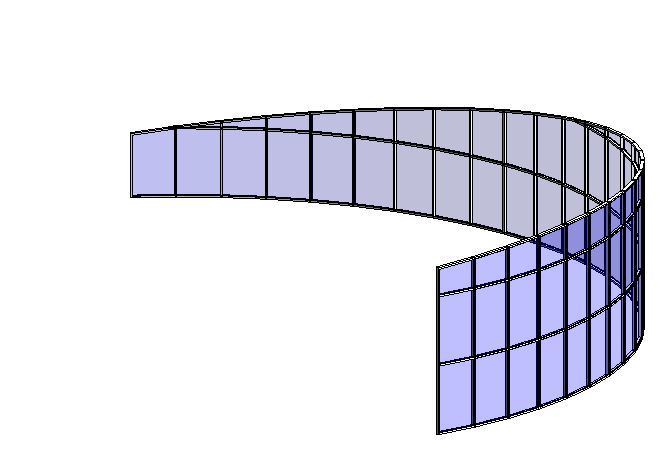

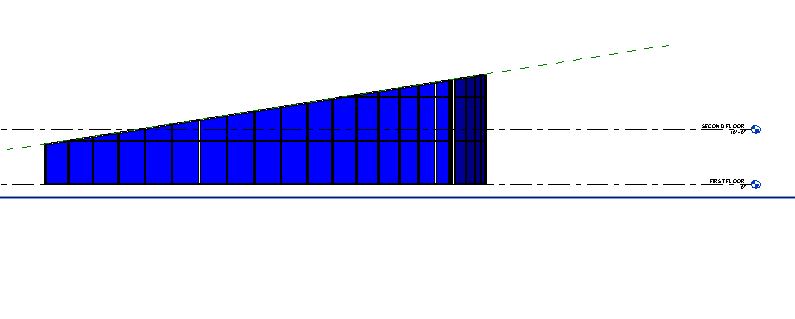

Attached Images
