Forums >> Revit Building >> Technical Support >> how do you make this wall boundary ?
|
|
|
active
Joined: Tue, Apr 4, 2006
4 Posts
No Rating |

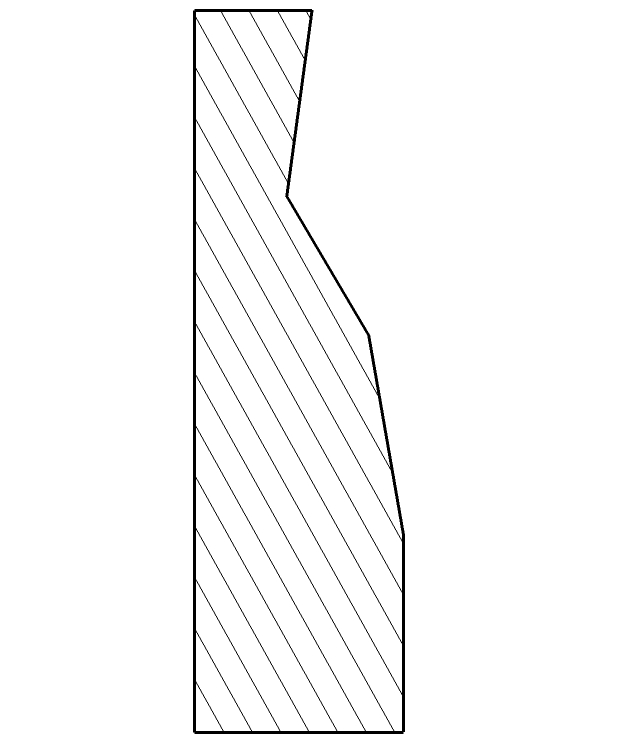

This is a problem I am facing .. please look at the attached .jpg and tell me how do I make a wall that has the boundary shown.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Mon, Mar 14, 2005
777 Posts
 |
can't access the jpeg for some reason...
-----------------------------------
Integrator Architectural Engineering Construction KarelCAD |
This user is offline |
View Website
|
|
|
active
Joined: Tue, Apr 4, 2006
4 Posts
No Rating |
"can't access the jpeg for some reason..."
Yep me too...
Anyhow it is a non-rectangular wall in plan. ( its faces aren't parallel... )
|
This user is offline |
|
|
|
active
Joined: Thu, Dec 16, 2004
792 Posts
 |
Pets, host the image on tinypic.com and post the link here. That should help till revitcity gets it's act together.
-----------------------------------
-//------------------------
Carl - rkitecsure[at]gmail.com
Need help? I'm probably in my chat room!
You fell victim to one of the classic blunders. The most famous is never get involved in a land war in asia, but only slightly less well known is this! Never go in against a Sicilian when death is on the line! |
This user is offline |
View Website
|
|
|
active
Joined: Wed, Jun 29, 2005
4 Posts
No Rating |
a way of doing this could be:
Go to modelling, then click on create a wall, solid form , by extrusion, where the depth will be the length of the wall, define the z axis, and then describe the section of the wall in one of the elevation views.
Untill you can find an easier method you can use the file attached,
|
This user is offline |
|
|
|
