Thu, Sep 8, 2016 at 10:09:01 AM | Hatch Pattern Help

teafoe5

site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes

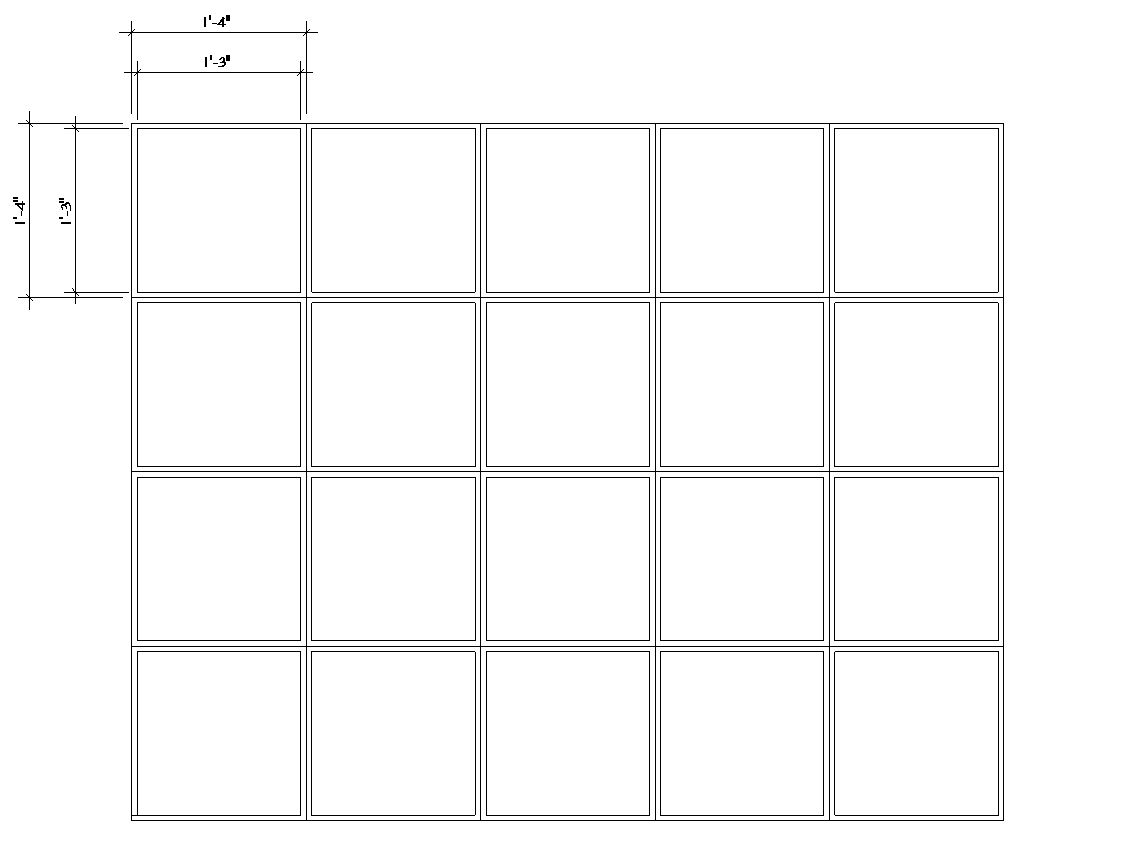

Can anyone help me create the attached hatch pattern? I'm pretty rough when it comes to creating custom hatches. It's just a repeating pattern of a 16"x16" square with a 15"x15" square inside of it.

Attached Images

This user is offline

View Website

Thu, Sep 8, 2016 at 12:51:30 PM | Hatch Pattern Help

marmiketin1

active

Joined: Wed, Aug 19, 2015
0 Posts
4.5 Stars: 10 Votes

heres the pattern you wanted.

Attached Files

pat File 147226_Square_Tile_Pattern.pat

This user is offline
