Forums >> Revit Building >> Technical Support >> Varying roof thickness by slope change

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Sep 2, 2016 at 1:10:42 PM | Varying roof thickness by slope change

#1

W0228724


active

Joined: Mon, Nov 24, 2014
0 Posts
No Rating

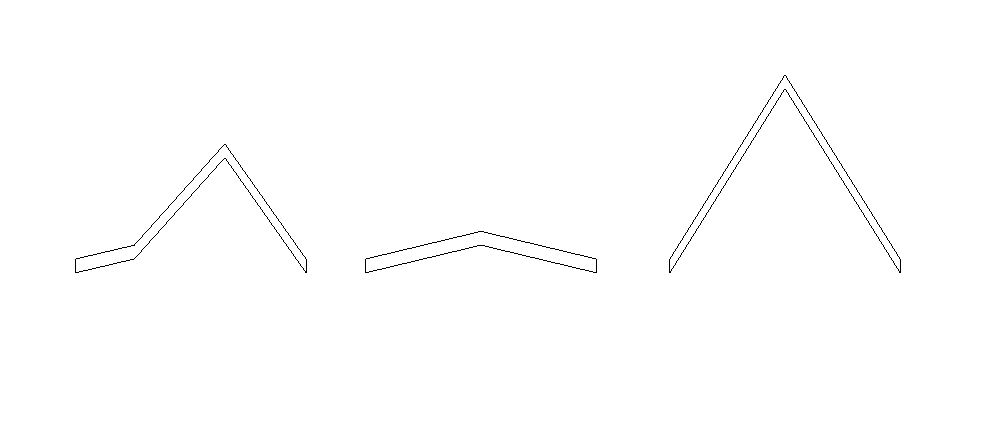

I am currently using Revit 2015, and cannot seem to find a fix for my roofs. Revit seems to be displaying roofing materials thicknesses as a vertical measurment regardless of slope as opposed to perpendicular to the roof face. I attached an image I just did up quickly showing 3 roofs, varying slopes, low slope and steep slope. I used the exact same roof type for all 3, but you can clearly see the the different thicknesses. Does anyone have a solution to fix this? I feel as though it should be a simple setting change but I do not see an option anywhere. Thanks!



Attached Images


This user is offline



Fri, Sep 2, 2016 at 2:36:28 PM | Varying roof thickness by slope change

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


Revit doesn't do what you show when you do a roof sketch.  You need to show us your roof properties and tell us your process.  Are you doing these as extrusions?


This user is offline



Fri, Sep 2, 2016 at 6:20:39 PM | Varying roof thickness by slope change

#3

W0228724


active

Joined: Mon, Nov 24, 2014
0 Posts
No Rating

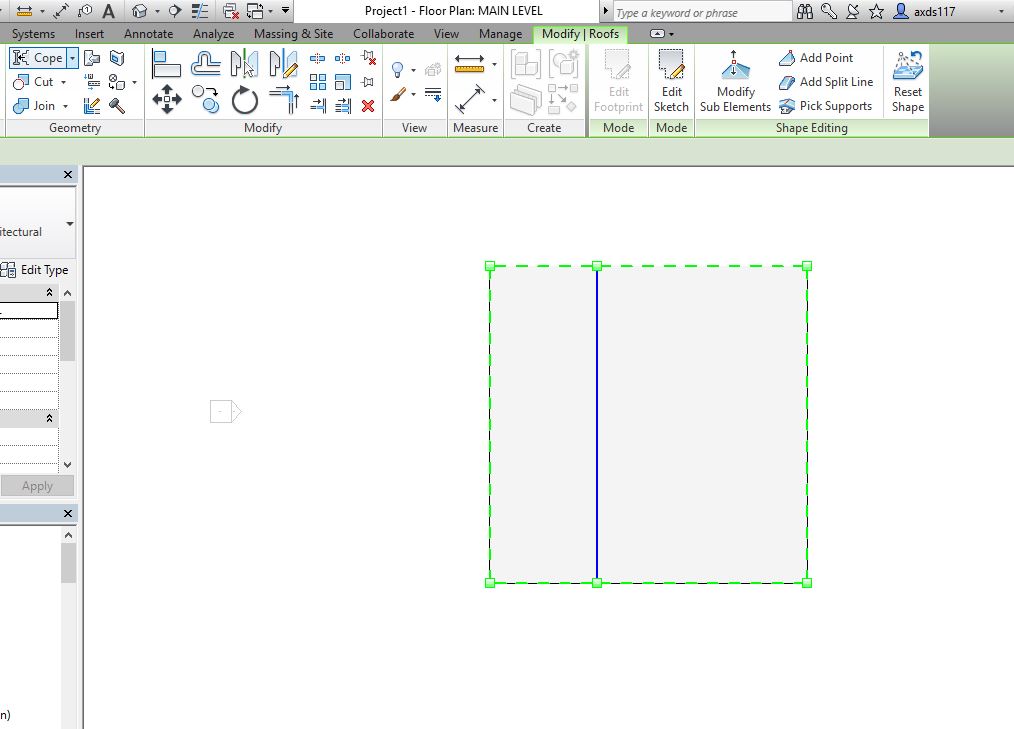

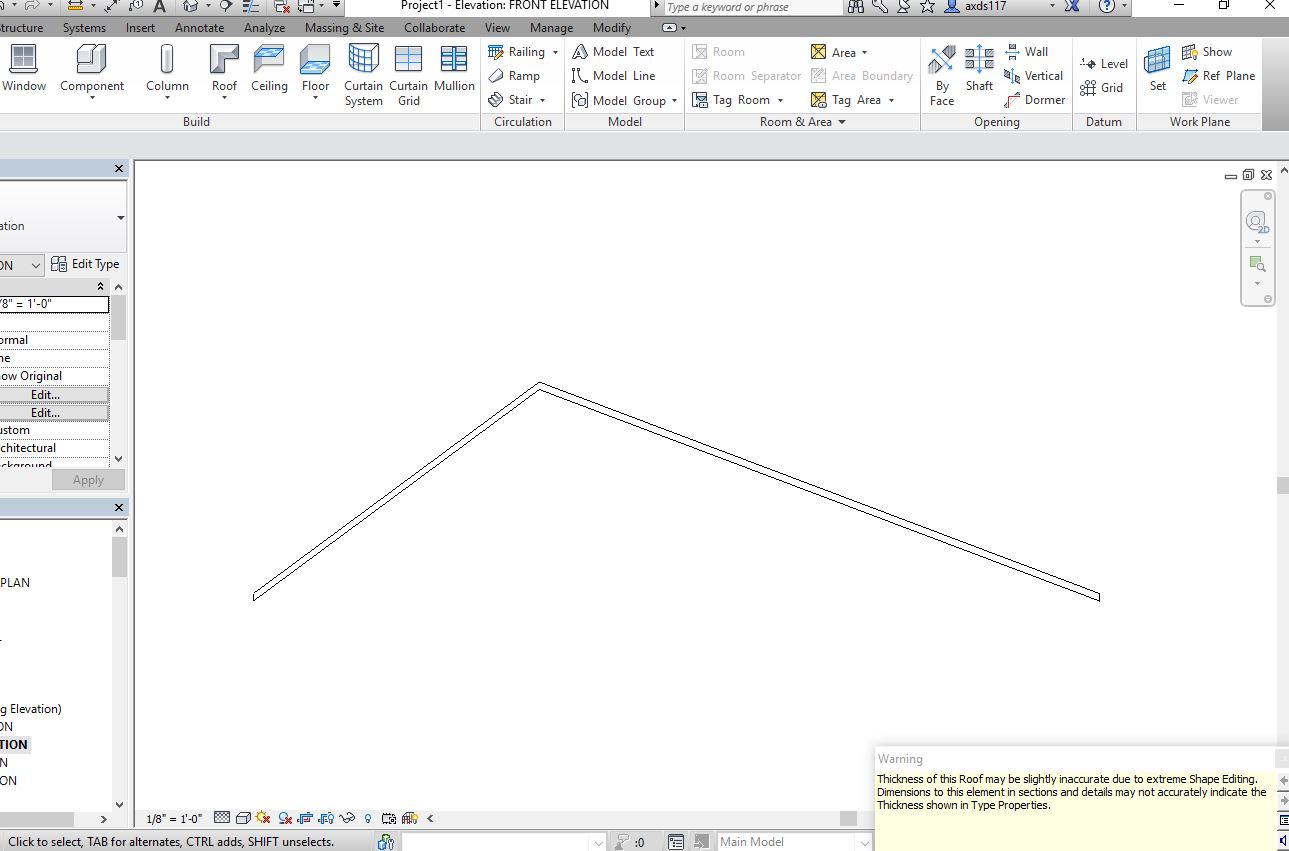

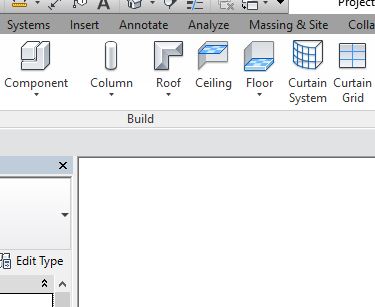

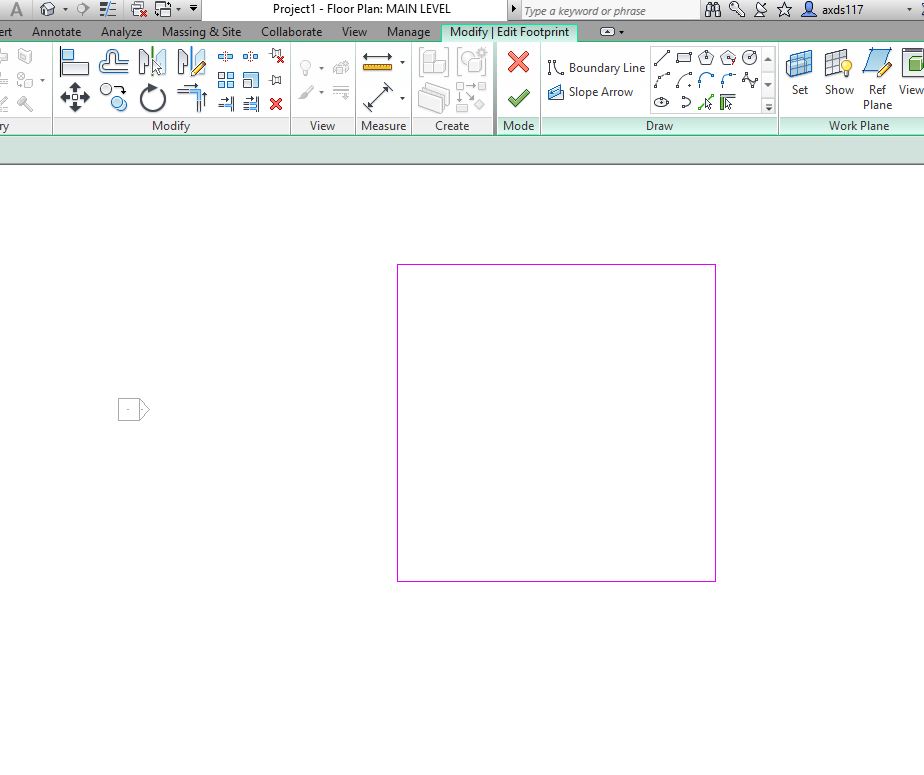

I took a snip of each step in creating the roof. See attached images.



Attached Images

147161_Step_1.JPG147161_Step_2.JPG147161_Step_3.JPG147161_Step_4_-_Warning.JPG147161_Step_5_-_Elevation_View.JPG

This user is offline



Fri, Sep 2, 2016 at 6:23:28 PM | Varying roof thickness by slope change

#4

W0228724


active

Joined: Mon, Nov 24, 2014
0 Posts
No Rating

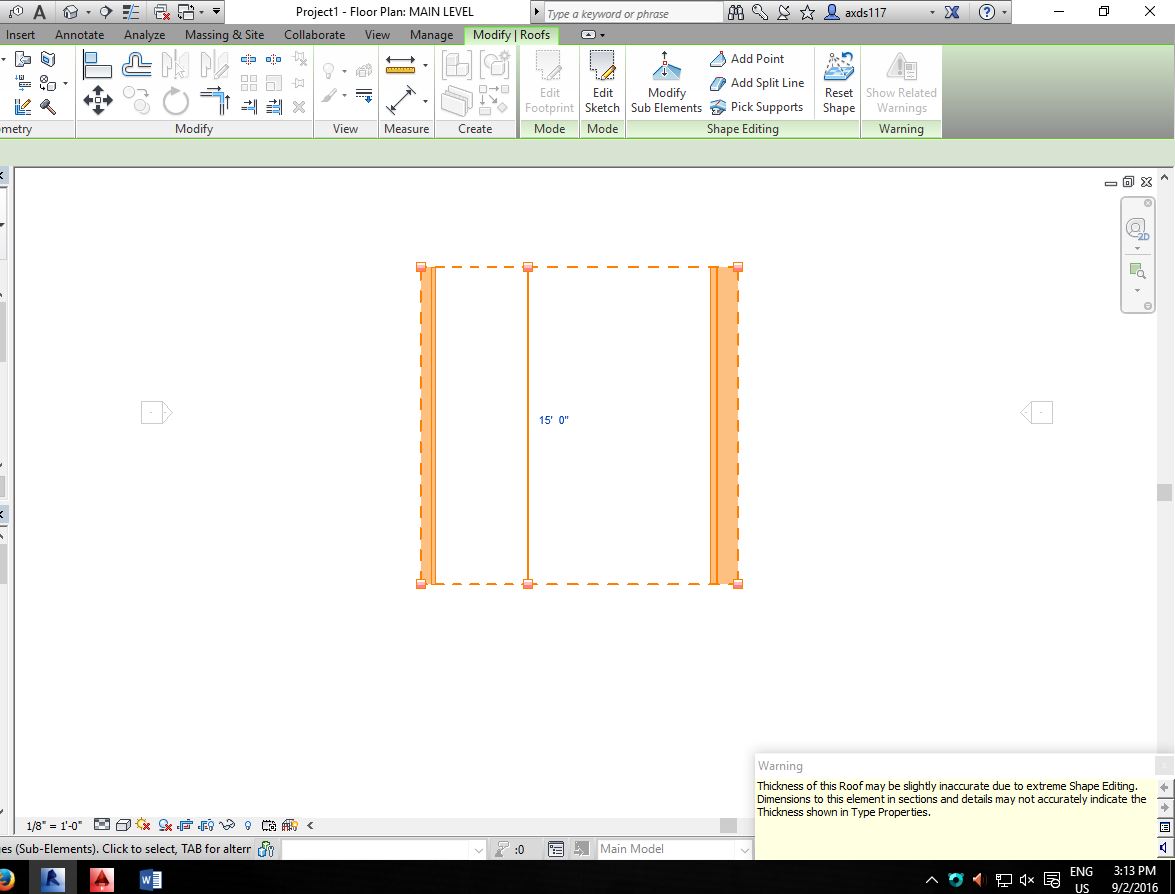

In the first step I use roof by footprint. Drew a 60x60 square. Added a split line off-center to create different slopes and set the height to 15'. I'm not sure if I'm missing a step or doing something wrong but I get the warning message often.


This user is offline



Fri, Sep 2, 2016 at 6:25:38 PM | Varying roof thickness by slope change

#5

W0228724


active

Joined: Mon, Nov 24, 2014
0 Posts
No Rating

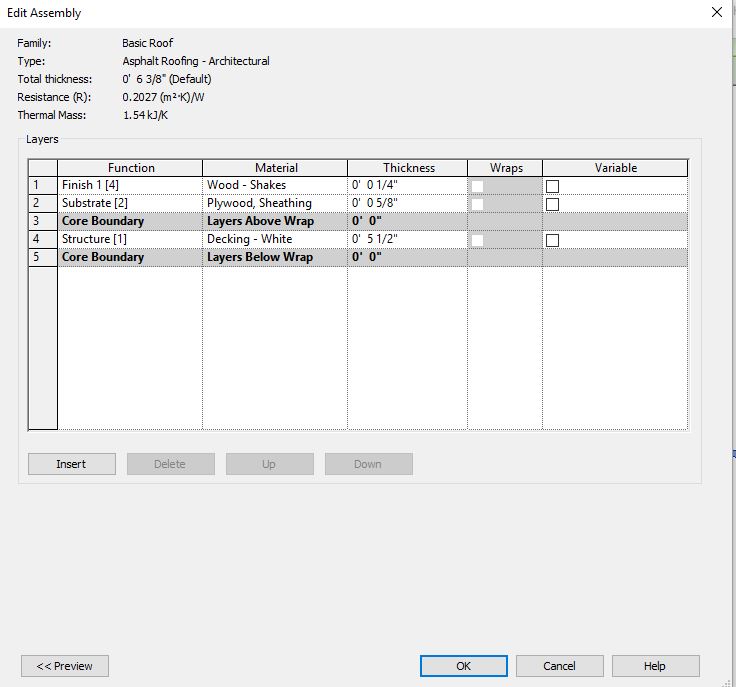

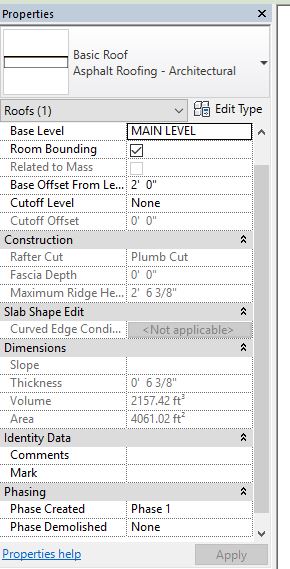

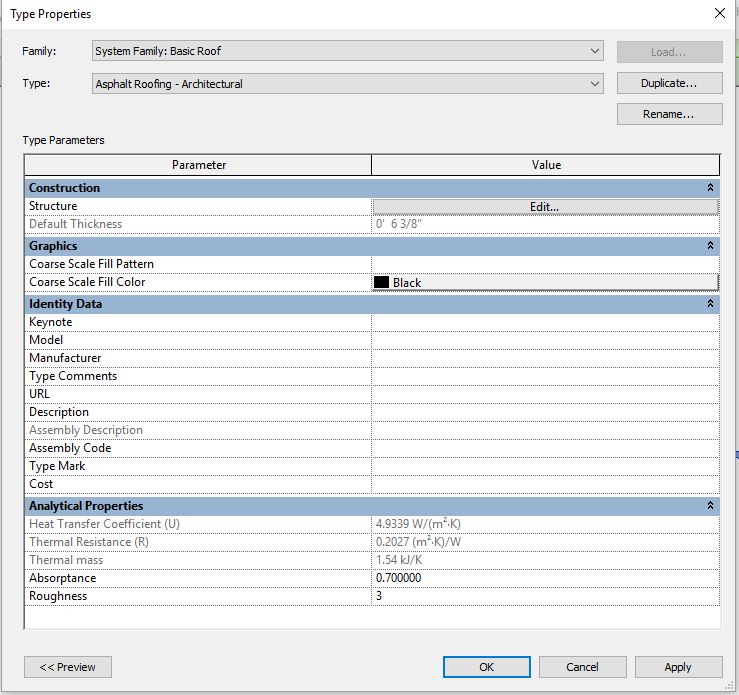

I attached the roof properties and assembly below



Attached Images


This user is offline
