Forums >> Revit Building >> Technical Support >> Texts not within text boundary

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Aug 4, 2016 at 9:01:17 PM | Texts not within text boundary

#1

annateo301


active

Joined: Tue, Aug 4, 2009
70 Posts
No Rating


Hi,

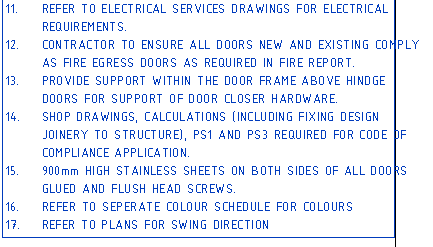

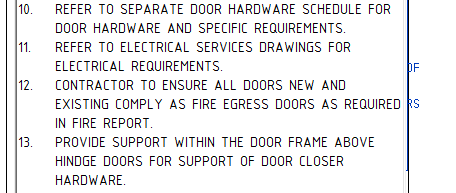

Has anyone come across this problem where the texts seemed to be within the text boundary in Editing Mode. But when you are done with editing, the texts appear to cross over the boundary. I've attached a screenshot of what I'm trying to address here.



Thanks for the help in advance!



Attached Images


This user is offline



Thu, Aug 4, 2016 at 9:41:29 PM | Texts not within text boundary

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 359 Votes


This can be tricky so I feel some pain but those two images were not created with the same boundry so this is not a fair comparison.  Look at note 13 and the word hindge.   On the blue image were hindge fits on the line there is room for more characters.  On the black image, you might get hind but no more.  Obviously the boundry has been moved.


This user is offline
