Fri, Jun 24, 2016 at 3:57:02 AM | Trying to Import Filled Section Head

#1

skyeg3


active

Joined: Wed, Feb 22, 2012
0 Posts
No Rating

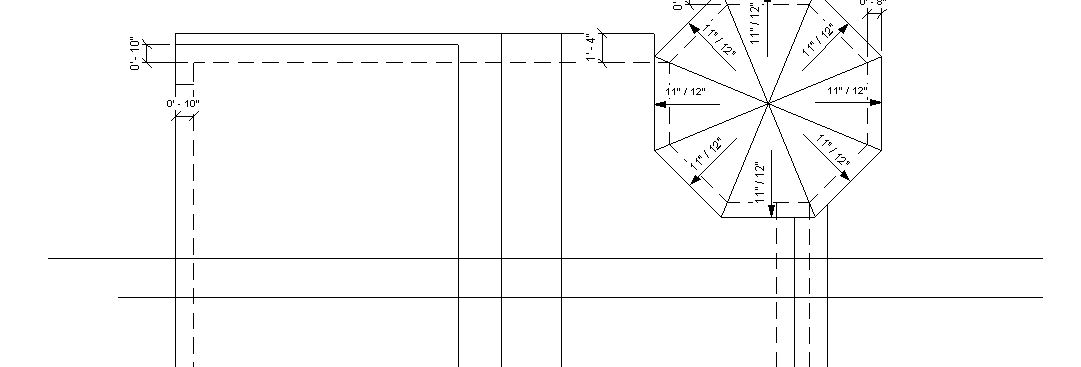

I have a project that is not showing the section heads, the sections just show up as lines in plan view. I have another project open that has the section heads the way I want them but I cant figure out how to get the section head and tail into the new project.  I've tried searching for the section head name (section head - filled) on the computer but nothing comes up strangely. Any ideas?



Thanks



Attached Images


This user is offline



Fri, Jun 24, 2016 at 12:20:09 PM | Trying to Import Filled Section Head

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


The correct section head may already be in your project.  Click on the cut and inspect the properties to see what other types are available to you.


This user is offline



Fri, Jun 24, 2016 at 7:18:48 PM | Trying to Import Filled Section Head

#3

skyeg3


active

Joined: Wed, Feb 22, 2012
0 Posts
No Rating

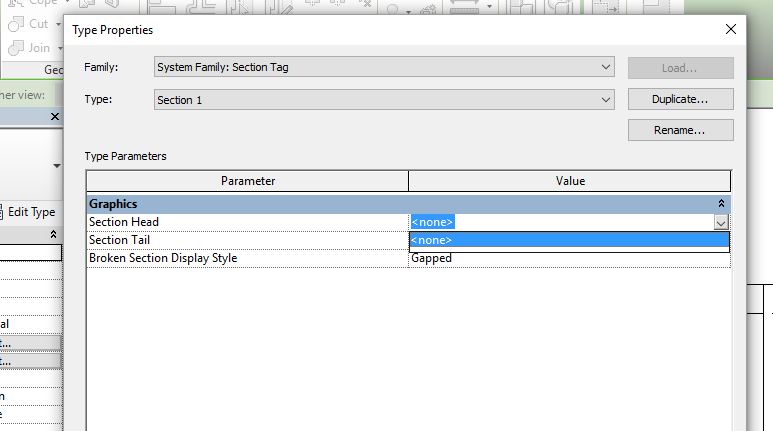

I have no section heads loaded into the project (see screenshot)



Attached Images


This user is offline



Fri, Jun 24, 2016 at 7:54:27 PM | Trying to Import Filled Section Head

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


That just means that this type, "Section 1", has no head or tail assigned to it.   Arfe there other type?  Click on the type pulldown.  For the Section 1 type, you can click on either the head or tail pulldown to see your choices.


This user is offline



Mon, Jun 27, 2016 at 6:18:49 PM | Trying to Import Filled Section Head

#5

skyeg3


active

Joined: Wed, Feb 22, 2012
0 Posts
No Rating


This is the only section type I have. There are no other head or tail options in the pull downs thats the problem. (did you see the screenshot?)


This user is offline



Mon, Jun 27, 2016 at 7:32:45 PM | Trying to Import Filled Section Head

#6

skyeg3


active

Joined: Wed, Feb 22, 2012
0 Posts
No Rating


Figured it out. Go to the project of that has the section. Find the section head and tail in the Project Browser under Families - Annotation Symbols. Then right click and choose edit which will open the family, then you can load it into whatever project you want.
