Forums >> Revit Building >> Technical Support >> residentail railing to past post

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jun 16, 2016 at 3:51:02 PM | residentail railing to past post

#1

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


REVIT 2016

Can't get a residentail railing to end at the post as needed.  See attached pdf.  Need the hand rail to extend slightly past the post.

Thanks,

JK





Attached Files

This user is offline



Fri, Jun 17, 2016 at 11:07:53 AM | residentail railing to past post

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 394 Votes


If just that top portion is the handrail, the handrail can be sketched to do that.  Another option is to use a handrail termination.

rail extension path

  1. Select the rail with the extension you wish to modify.
  2. On the Continuous Rail panel, click (Edit Rail).
  3. On the Tools panel, click (Edit Path).
  4. Optionally, display the Workplane Viewer and use the drawing tools to modify the extension path. See Define a Continuous Rail Extension.




This user is offline



Wed, Mar 29, 2017 at 10:48:09 PM | residentail railing to past post

#3

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


Still have not gotten anywhere with this.  I don't understand your answer.

I don't see and "edit rail" button to click on.  I have attacvhed a revit file  CryingREVIT 17 LT) of the offending railing.



Thanks,

JK



This user is offline



Thu, Mar 30, 2017 at 11:13:08 AM | residentail railing to past post

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

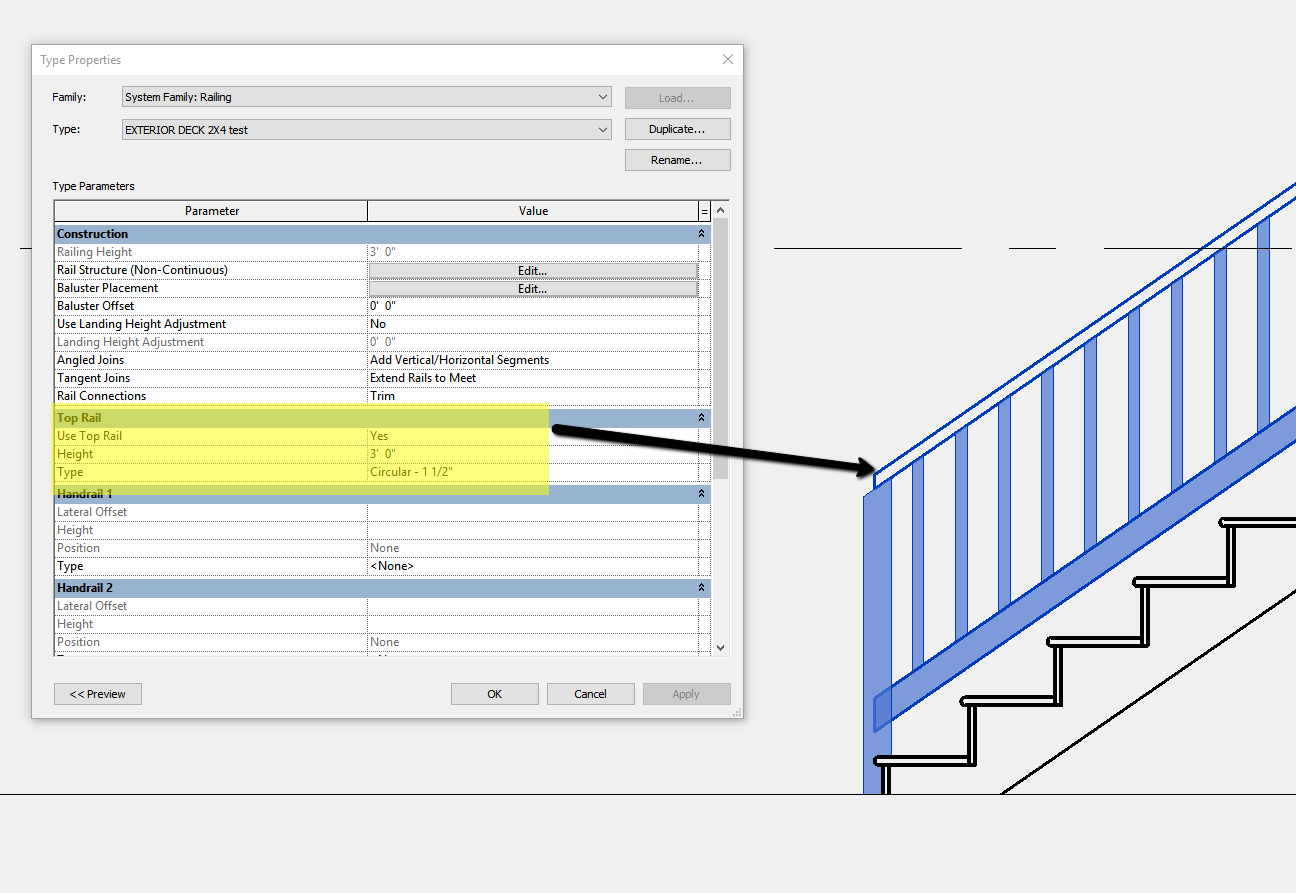

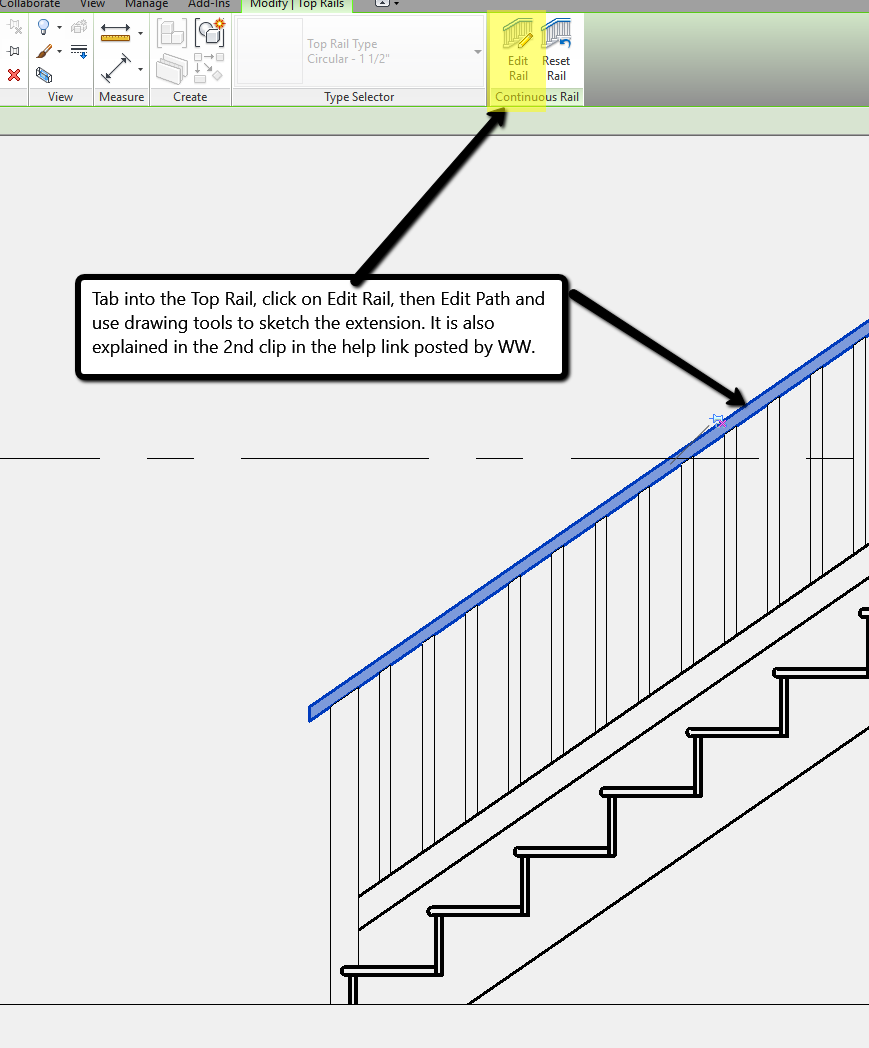

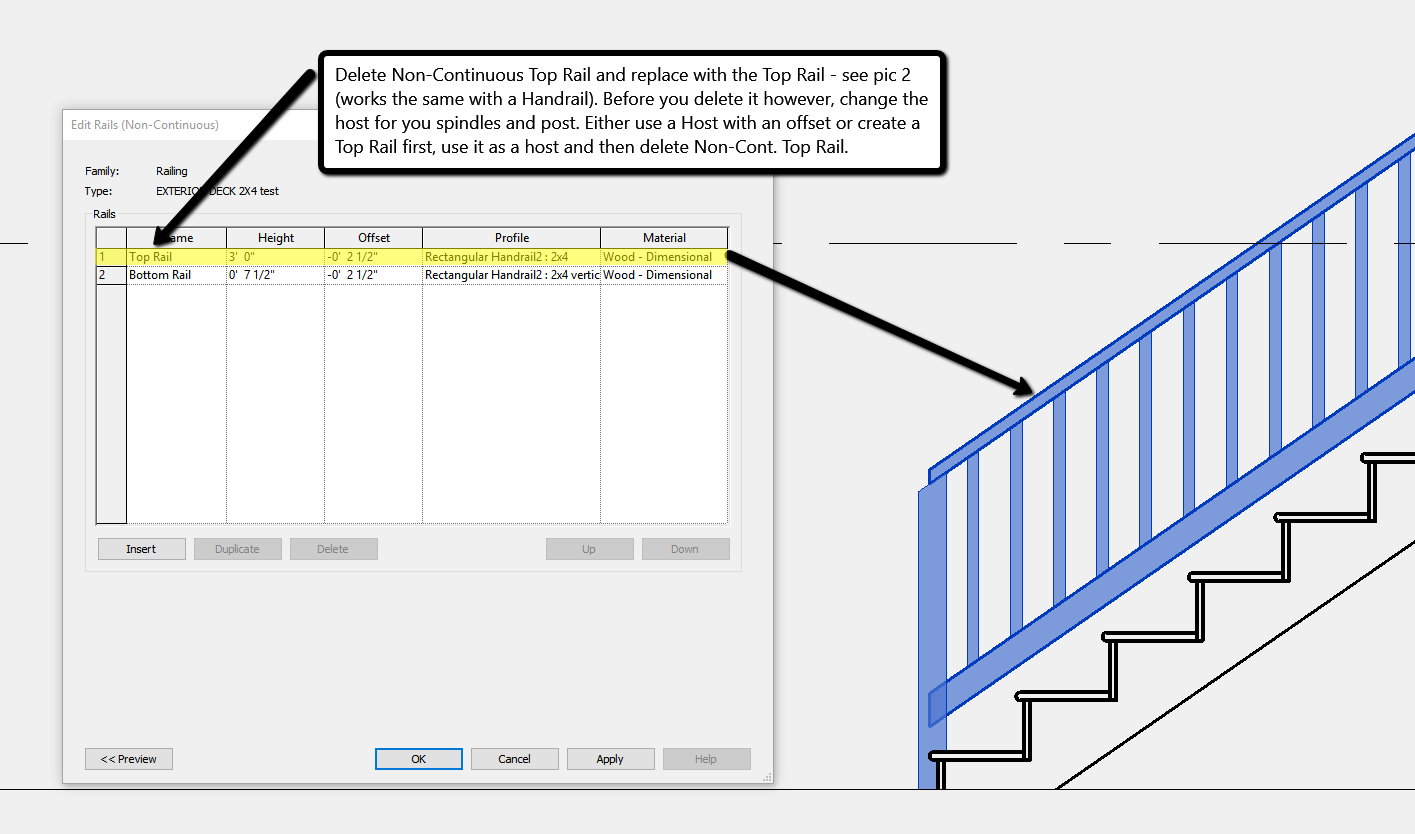

See pictures. I hope it works in 2017 LT as well.



Attached Images


This user is offline



Sun, Apr 2, 2017 at 10:32:31 PM | residentail railing to past post

#5

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


Pijpiwo -  Thank so much for the help!  Your post bridged the gap, the screen shots were great.

Yes, it did work the same way with LT.



Cheers!



This user is offline
