Forums >> Revit Structure >> Technical Support >> How to model long ground beam with piles?

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, May 15, 2016 at 7:22:56 PM | How to model long ground beam with piles?

#1

daer


active

Joined: Wed, Feb 26, 2014
0 Posts
No Rating

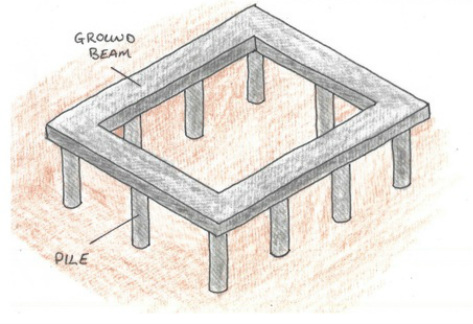

I uploaded a picture of what I want to model.

I have found a ways of modeling the gorund beam, using structural footing wall set in an underground level.

However, I have no idea on how to model piles beneath the ground beam. All pile families I have found are reduced to a cap with 2 piles only, whereas I want to be able to create a continuous and long linear pile array.

Please see picture attached.



Attached Images


This user is offline



Mon, May 16, 2016 at 6:51:14 PM | How to model long ground beam with piles?

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 39 Votes


Why not just use a round concrete column?


This user is online

View Website
