Forums >> Revit Structure >> Technical Support >> Need Help on Sloped Beam-Column Connection

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Apr 23, 2016 at 3:11:47 PM | Need Help on Sloped Beam-Column Connection

#1

jaiemm


active

Joined: Thu, May 7, 2015
0 Posts
No Rating


Hi,

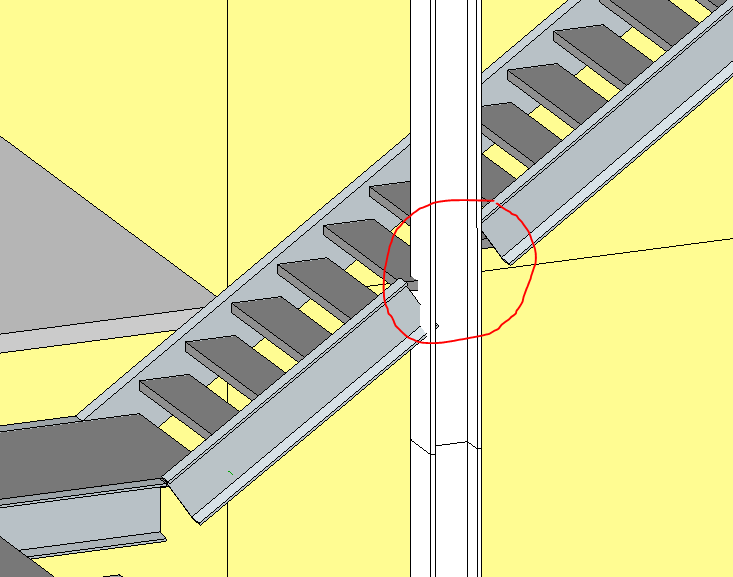

I'm having a problem on how to have a nice connection between a sloped steel beam and a steel column. I was wondering if it is possble to make the ends of the beams highlighted in the attached photo, to be cut vertically?

Thanks in advance!





Attached Images


This user is offline



Fri, Apr 29, 2016 at 6:50:43 PM | Need Help on Sloped Beam-Column Connection

#2

Johnzo142


active

Joined: Fri, May 8, 2009
47 Posts
No Rating

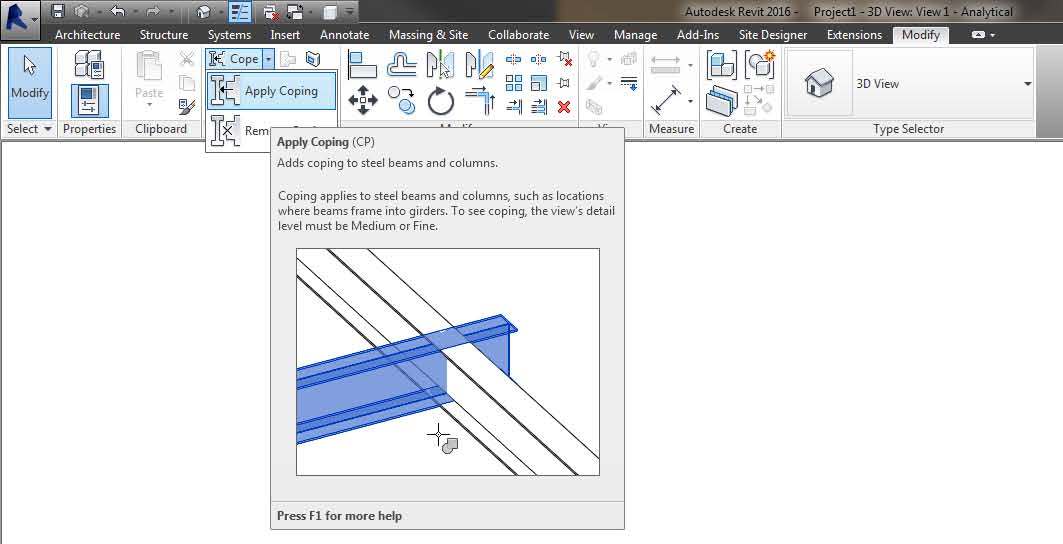

Use the coping tool.

Modify tab/Geometry/Cope



Edited on: Fri, Apr 29, 2016 at 1:55:43 PM

Edited on: Fri, Apr 29, 2016 at 1:58:43 PM



Edited on: Fri, Apr 29, 2016 at 1:59:14 PM

Attached Images


This user is offline
