Forums >> Revit Structure >> Technical Support >> Beams won't intersect or close-up to Structural Columns. Solution ?

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Apr 23, 2016 at 10:49:44 AM | Beams won't intersect or close-up to Structural Columns. Solution ?

#1

sentinelly


active

Joined: Fri, Feb 26, 2016
0 Posts
No Rating


Hi everyone, i've just been using Revit for 2 months now. Maybe i've been stuck with this problem for that same amount of time. Here's the problem :

No matter what i try, Concrete Beams won't ever do what i want : intersect to the Structural Concrete Columns, or close-up to them. What they always always do is stop at the columns and offset from them with a consistent distance of 13mm.

The only way i could find out is "Disallow Join" every single Beam, and then move it to the specific spot i want, which i find very time-consuming.

I find that Architectural Columns would allow what i need, but then again i need Structural Concrete Columns instead. My boss don't allow me to paint Architectural Columns with Concrete material either Sad.

I would like to ask everyone around here if, there is any way to allow beams join close-up to structural columns, or intersect with them too ?

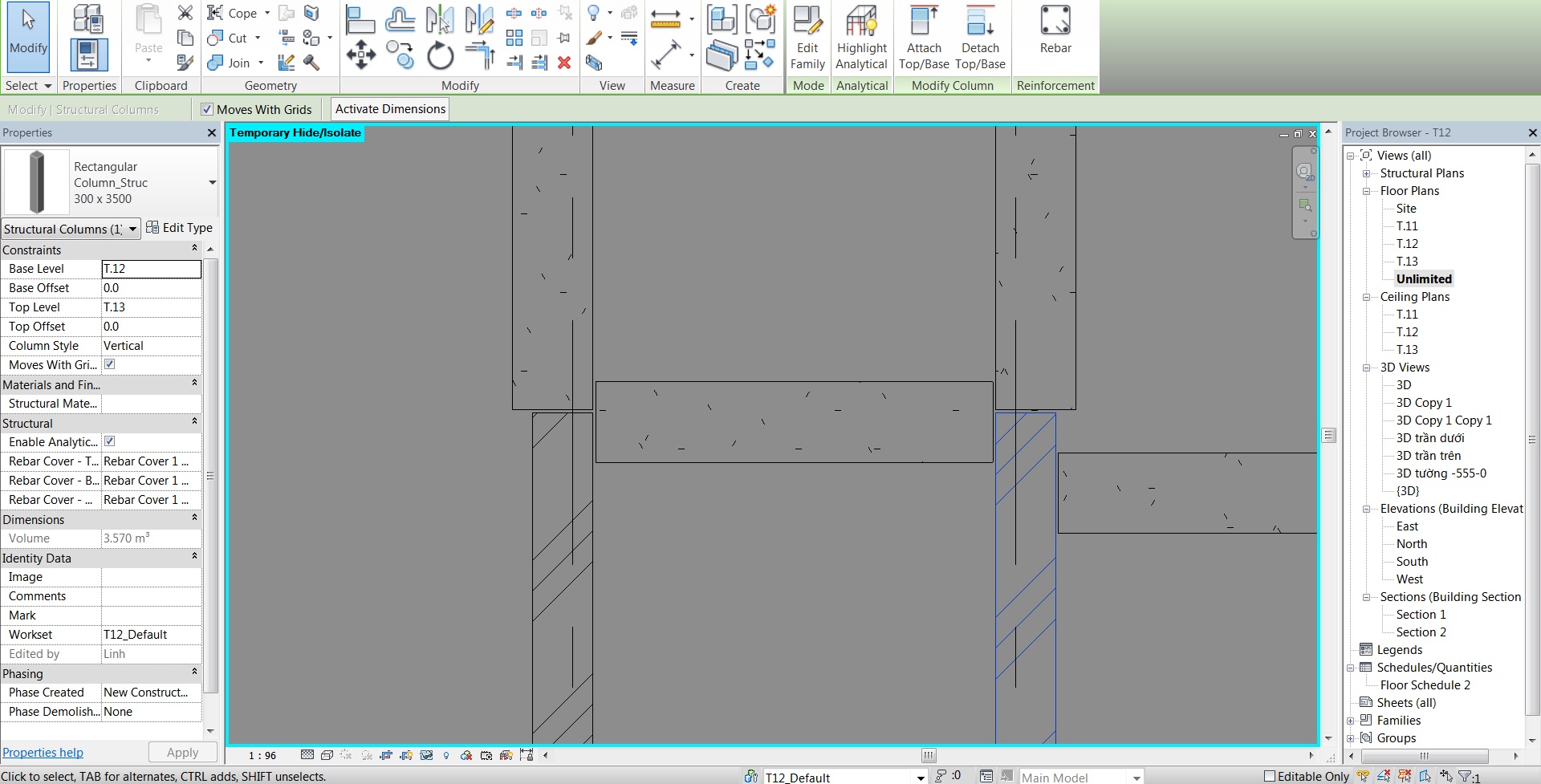

Attached Images


This user is offline



Tue, Oct 18, 2016 at 7:01:11 PM | Beams won't intersect or close-up to Structural Columns. Solution ?

#2

sllana


active

Joined: Wed, Mar 2, 2011
106 Posts
5 Stars: 2 Votes


http://help.autodesk.com/view/RVT/2016/ENU/?guid=GUID-D041CD85-9AEC-40C9-B991-AA6D00EEE4ED
