Forums >> Revit Building >> Technical Support >> Revit only showing 2 elevations

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Apr 11, 2016 at 1:01:10 AM | Revit only showing 2 elevations

#1

shahin912


active

Joined: Sun, Dec 13, 2015
0 Posts
No Rating


Hello,

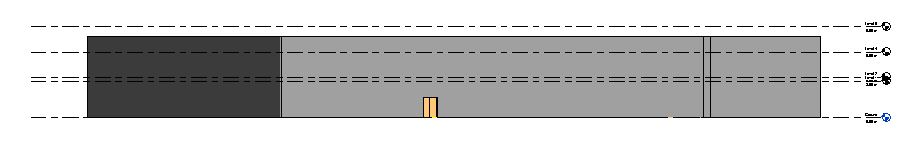

I see North/South/West/East listed on revit. But when I click on them, only East and South elevation show the building. I see the datum lines on all of them. But I dont see the actual building on West and North. I made sure that massing model is being shown in elevation



Attached Images


This user is offline



Mon, Apr 11, 2016 at 1:11:18 AM | Revit only showing 2 elevations

#2

shahin912


active

Joined: Sun, Dec 13, 2015
0 Posts
No Rating


I'm talking about exterior elevations btw.


This user is offline



Mon, Apr 11, 2016 at 2:59:51 AM | Revit only showing 2 elevations

#3

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


While in the elevation view in question on the view properties palette under Extents, make sure none of the boxes are checked and set Far Clipping to ‘no clip’.

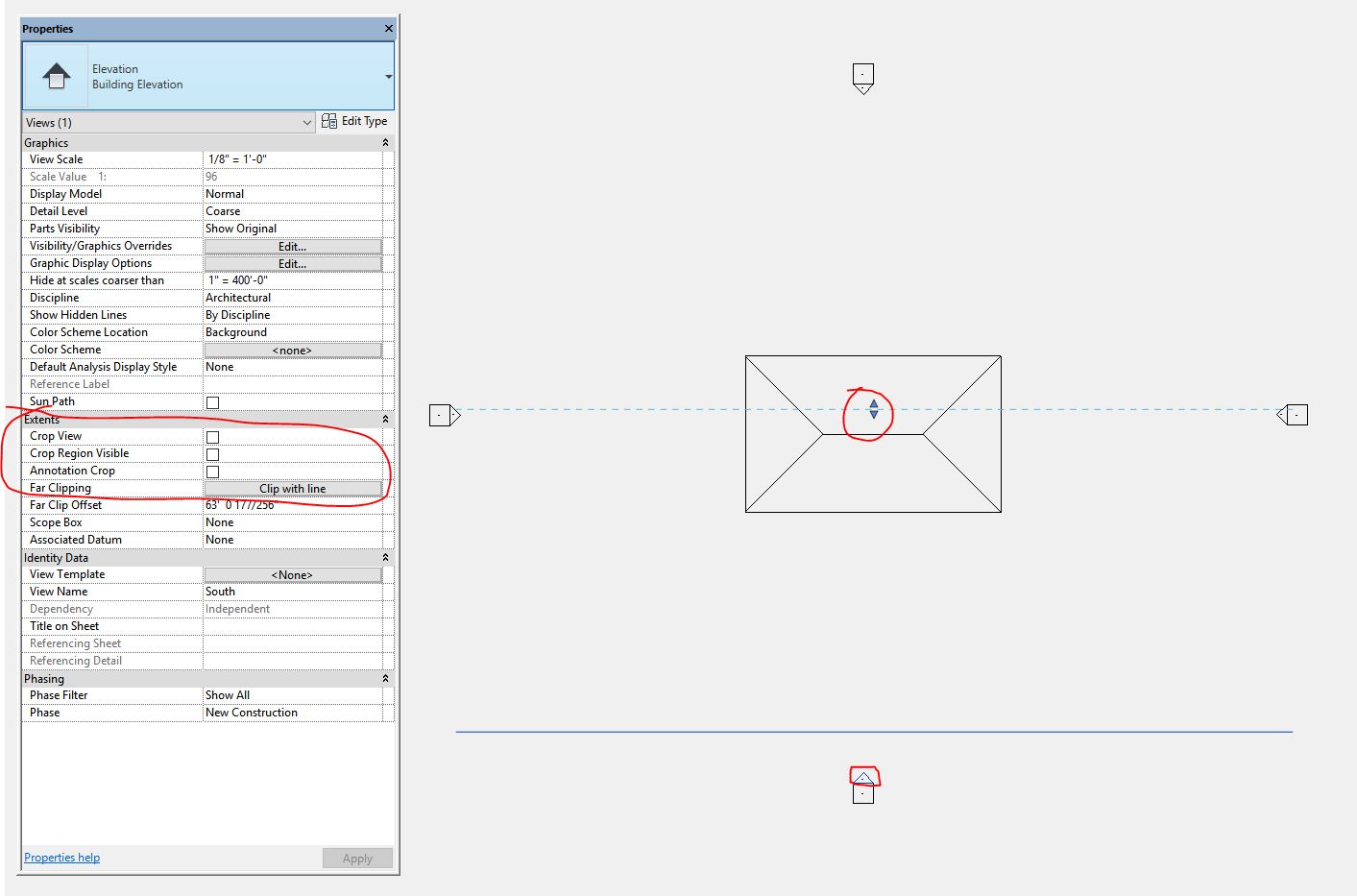

Or better yet, in the plan view select elevation marker, set far clipping to clip with line or clip without line and adjust the clipping (depth of view) by dragging the blue arrows (see pic). The blue dashed line is a boundary of how far the elevation view is able to 'see'.



Attached Images


This user is offline



Mon, Apr 11, 2016 at 3:17:18 AM | Revit only showing 2 elevations

#4

shahin912


active

Joined: Sun, Dec 13, 2015
0 Posts
No Rating

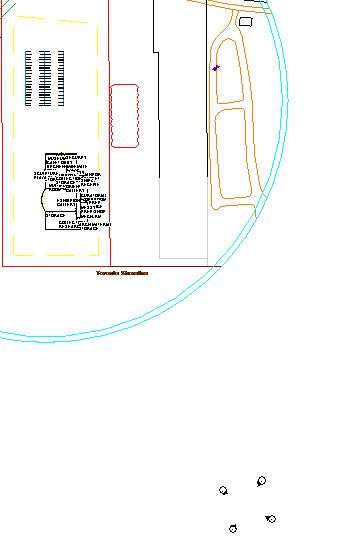

Not working. My Markers are away from my drawing. And I used the Clip with line thing, still not working.



Attached Images


This user is offline



Mon, Apr 11, 2016 at 3:22:54 AM | Revit only showing 2 elevations

#5

shahin912


active

Joined: Sun, Dec 13, 2015
0 Posts
No Rating


I fixed it. Thanks a lot.
