Forums >> Revit Building >> Technical Support >> Wall Type Graphic - Not Rotating with Wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Mar 24, 2016 at 6:49:05 PM | Wall Type Graphic - Not Rotating with Wall

#1

kgriendling


active

Joined: Fri, Sep 14, 2012
0 Posts
No Rating


Hi everyone,

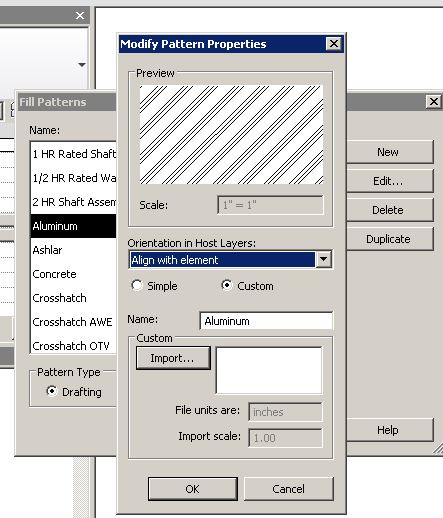

In Revit 2016, I have wall types that are made for smoke/sound and fire rated partitions. For some reason, the fire rated partition graphics are properly rotating with the wall type, however, the sound partition grpahic will not. All of the graphic patterns are drafting type patterns. I don't know what other settings to check.

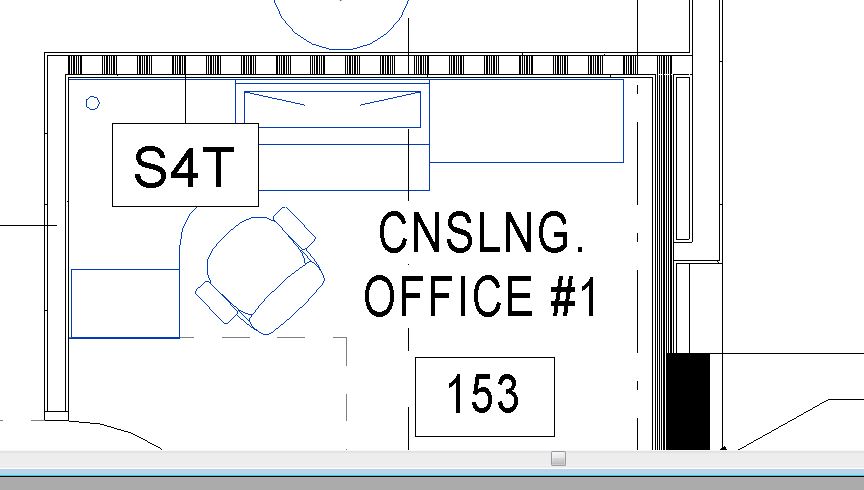

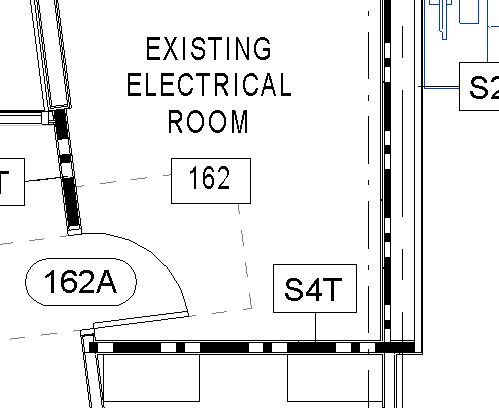

See below for the differences between the two. How can I get the smoke/sound graphic to rotate properly?





Edited on: Thu, Mar 24, 2016 at 1:50:02 PM

Attached Images


This user is offline



Thu, Mar 24, 2016 at 7:07:35 PM | Wall Type Graphic - Not Rotating with Wall

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


What are these "graphics" ?  I guess they are a material or a coarse fill pattern assignment?

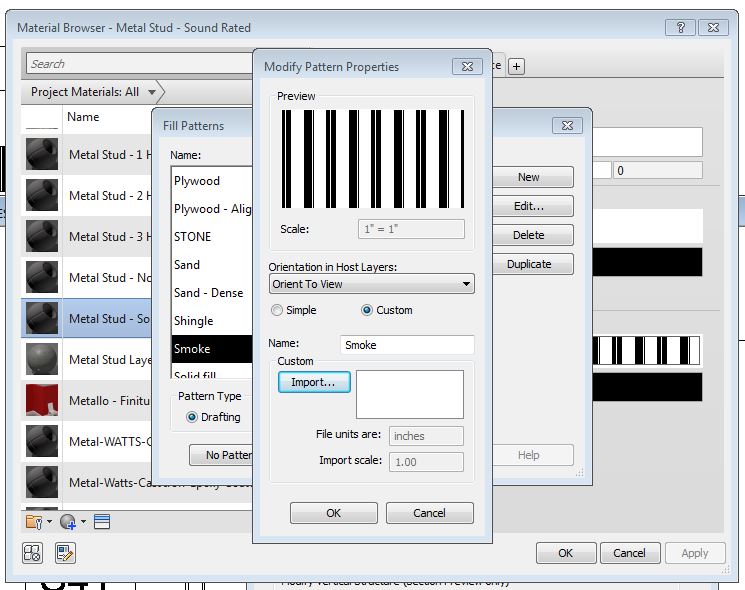

Look at your fill patter settigs as I show.



Edited on: Thu, Mar 24, 2016 at 2:17:04 PM

Attached Images


This user is offline



Thu, Mar 24, 2016 at 7:47:22 PM | Wall Type Graphic - Not Rotating with Wall

#3

kgriendling


active

Joined: Fri, Sep 14, 2012
0 Posts
No Rating


That did it. Excellent catch. Thank you.



Attached Images


This user is offline
