Forums >> Revit Building >> Technical Support >> Void Forms cut Revolve not successful and remove the line

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 7, 2016 at 8:17:04 PM | Void Forms cut Revolve not successful and remove the line

#1

Bogumil


active

Joined: Mon, Aug 11, 2014
0 Posts
No Rating

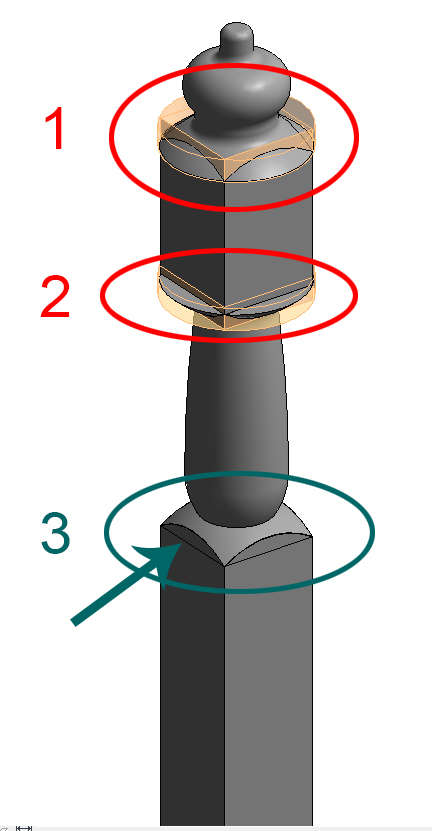

Hello everyone,I need your help and teach me how to do it.I create post for single bed. Please see the picture I create old shape post for single bed.1. Top: Revolve and add void forms to cut around it but not successful, see orange void.2. Second from top: Extrusion, it is easy to create Extrusion but I don't know how to remove the line after it merges with revolve (include void forms), See example 3. If I did it, Revit says, "Can't keep elemens jointed". :-/ I hope you understand with my English otherwise have a look it at *.rfa (2016) to open and see there.Many thanks,Bogumil



Attached Images


Attached Files

This user is offline



Mon, Mar 7, 2016 at 9:11:23 PM | Void Forms cut Revolve not successful and remove the line

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 350 Votes


The lines are because the faces are not aligned I aligned one side and the line goes away.



This is really too complicated.  Why not one simple vertical square extrusion with two void revolves?Look at what I did with your middlw upper void.  One rectangular void copied around.  This fixes the "can not join" issue.  << But you don't need this if you do a revolve void.



Attached Images


Attached Files

This user is offline



Tue, Mar 8, 2016 at 8:49:45 AM | Void Forms cut Revolve not successful and remove the line

#3

Bogumil


active

Joined: Mon, Aug 11, 2014
0 Posts
No Rating

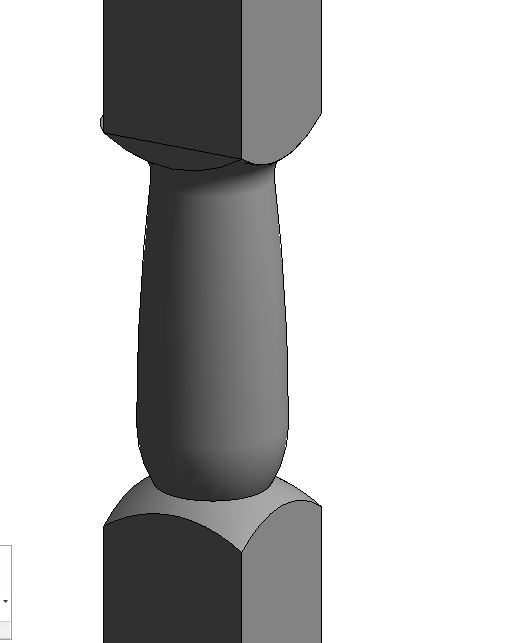

Thank you for explanation. I tried to open your file2 but it says, Data in file 144399_144397{postforSingleBed2.rfa is corrupt and needs to be manually recovered. Please can you resend it to me again. Thank you for your time and assistant. Kind regards, Bogumil

This user is offline



Fri, Mar 11, 2016 at 8:33:17 AM | Void Forms cut Revolve not successful and remove the line

#4

Bogumil


active

Joined: Mon, Aug 11, 2014
0 Posts
No Rating


Hello WWHub,

Please can you send me a file *.rfa. I need to have a look it how you works with it. I got your *.rfa but it is corrupted.

Thank you for your time.

Regards,

Bogumil


This user is offline



Fri, Mar 11, 2016 at 2:03:37 PM | Void Forms cut Revolve not successful and remove the line

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 350 Votes


That file is not corrupted - I just saved it to my system and opened it to check it.  You have to right click on it and do a save as.



But you really don't need that file.  Do as I suggested, a vertical extrusion with a void revolve.


This user is offline
