Forums >> Community >> Newbies >> Creating a "Compound" Profile

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Feb 11, 2016 at 3:45:07 PM | Creating a "Compound" Profile

#1

rcobbjr


active

Joined: Fri, Jul 27, 2007
76 Posts
3 Stars: 2 Votes


Is it possible to take a profile of a sill plate and "nest" or insert it into a profile of a cap block so I may generate a model of the sill plate on top of a cap block? I wish to do this so I may change the dimensions/parameters of the cap block and sill plate independently for custom needs.


This user is offline



Thu, Feb 11, 2016 at 4:22:24 PM | Creating a "Compound" Profile

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


I think teafoe answered you correctly in your other post.  The cap block should be part of the wall.   The sill plate cout be a sweep element but the cross section view of these items is far better off being just a detail element rather than an embedded detail item.



In this case, your foundation wall should be your block width with a thinner section at the top where the cap block is.  You can describe all of that in your wall type.


This user is offline



Thu, Feb 11, 2016 at 4:31:07 PM | Creating a "Compound" Profile

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes

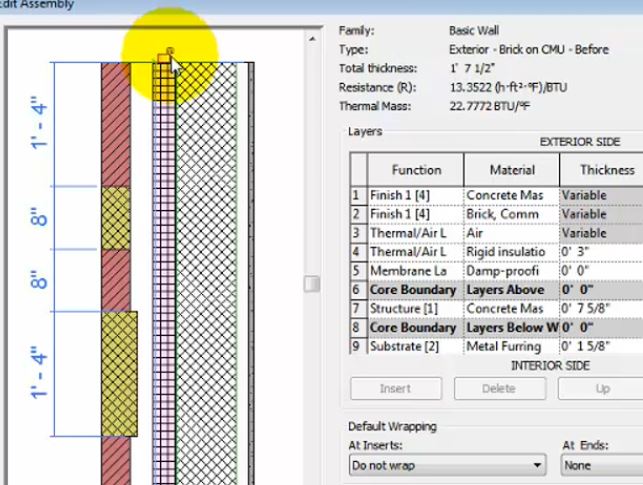

Watch the video here to learn how to modify your wall.
