Forums >> Revit Building >> Technical Support >> Extra Roof Lines in Section

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 28, 2016 at 12:05:09 PM | Extra Roof Lines in Section

#1

kittyj2345


active

Joined: Fri, Jul 17, 2015
0 Posts
No Rating


Hello! I'm using Revit LT 2014.

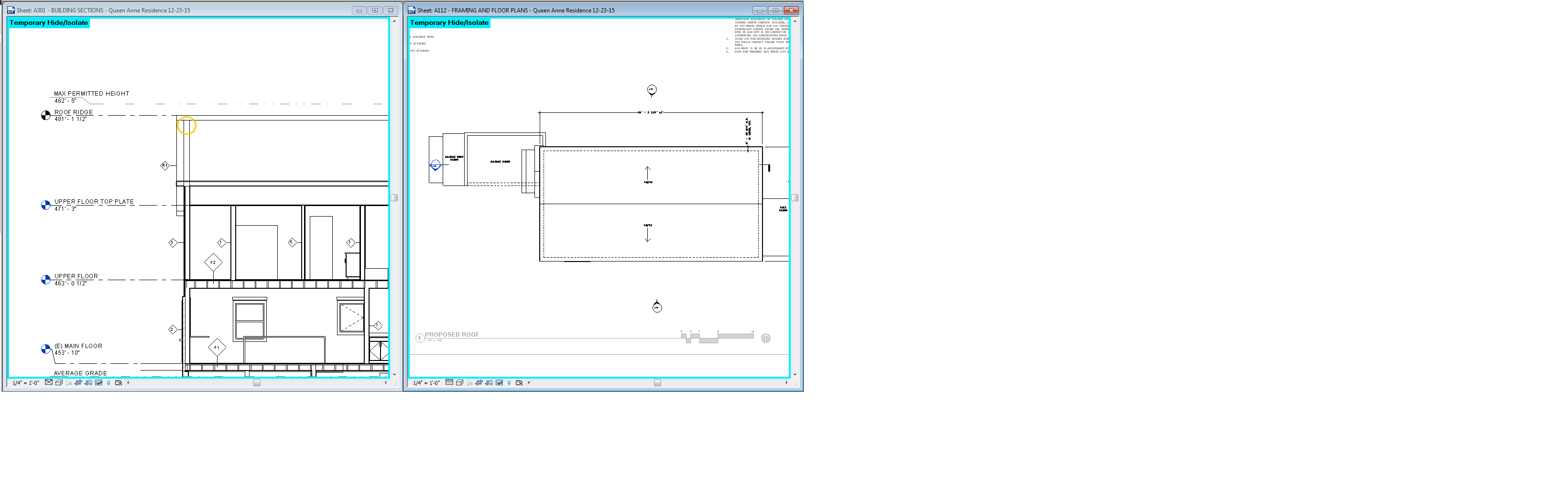

Please look at the attached image titled "extra roof lines." I have a section cut that is parallel to the ridge of a gable roof. The cut is north of the hip, looking south. In the section, you can see lines indicating the edges of the wall and the bottom edge of the roof. These lines are circled in yellow.

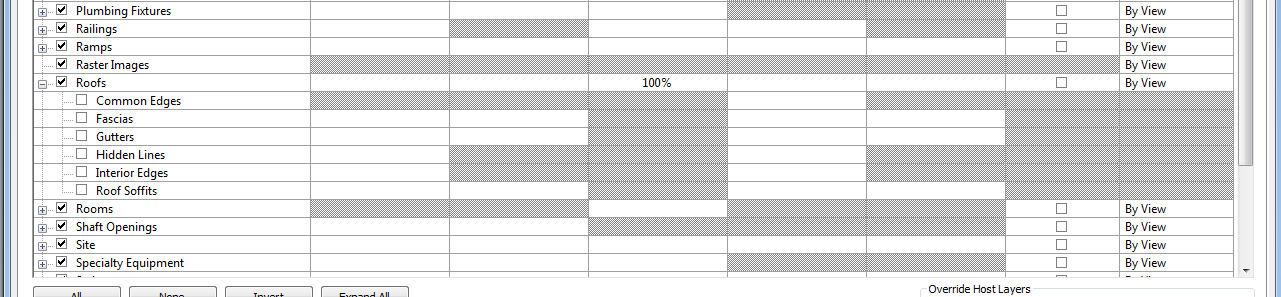

These lines should be obscured by the roof itself- we shouldn't see them. Any ideas about why they're visible? I've also included a screenshot of my VG settings for roof lines that shows everything other than the roof itself is turned off.

Thanks!



Attached Images


This user is offline



Thu, Jan 28, 2016 at 12:45:54 PM | Extra Roof Lines in Section

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


What hip?..This looks like its just a gable roof.  From what I see you are seeing what you should be.


This user is offline

View Website
