Forums >> Revit Structure >> Technical Support >> How To Create A Complex Sweep?
|
|
|
active
Joined: Tue, Jan 28, 2014
0 Posts
No Rating |

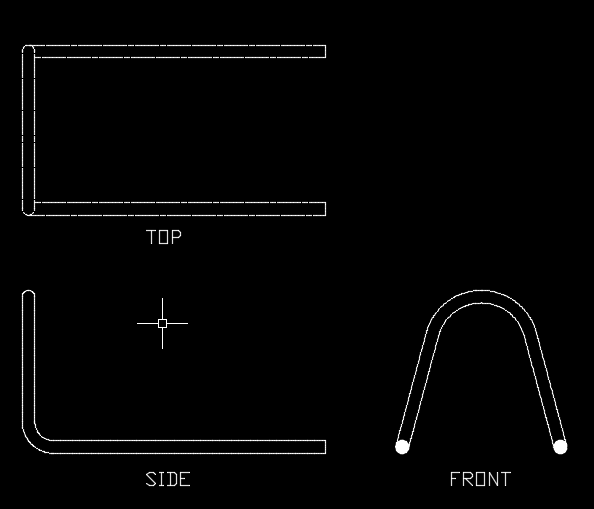

Hey guys, I'm using Revit 2015. I'm including a .png of the object I'm trying to model in Revit. This is a strand loop that we embed into precast pieces and use it to lift the piece for stripping or erection purposes.
I feel like it should be able to be done with the Swept Blend command, but I haven't been able to get it to work. Any ideas? Thanks ahead of time.
|
This user is offline |
|
 | |
|
|
active
Joined: Fri, Sep 3, 2010
0 Posts
 |
Take a look at this similar thread. Hope it helps.
|
This user is offline |
|
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
|
I don't see this as a Sweep Blend. Looks like a simple sweep, ending and sterting with a circle profile.
This is relatively easy to do. Create a path to follow with a Ref. or Model Line, then open the Sweep Command
and pick those lines for the path. Then go to edit profile and sketch your circle. Save and presto! Your Sweep complete.
|
This user is offline |
|
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
|

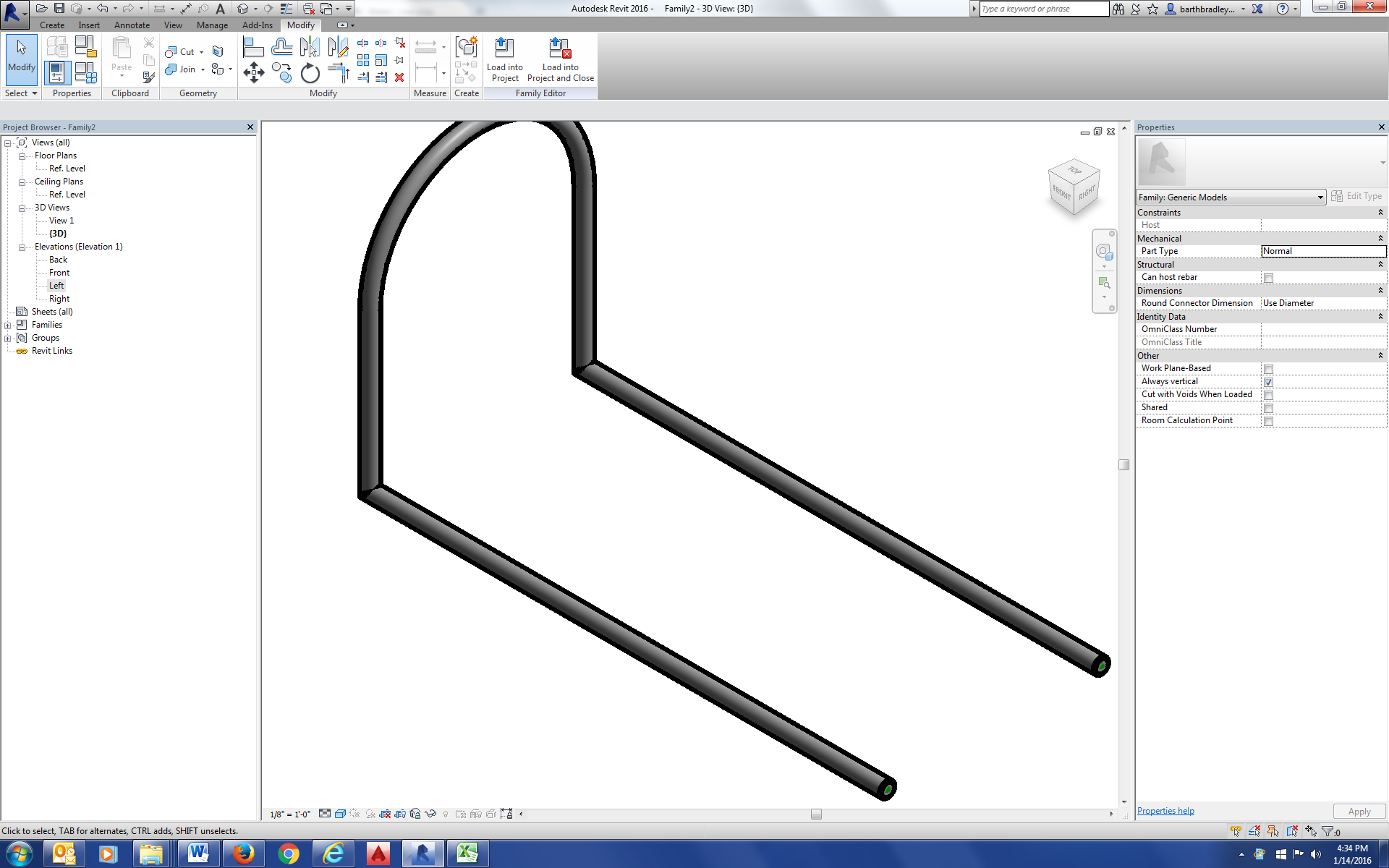

something like this quickie...
|
This user is offline |
|
|
|
active
Joined: Tue, Jan 28, 2014
0 Posts
No Rating |
Thanks pijpiwo!

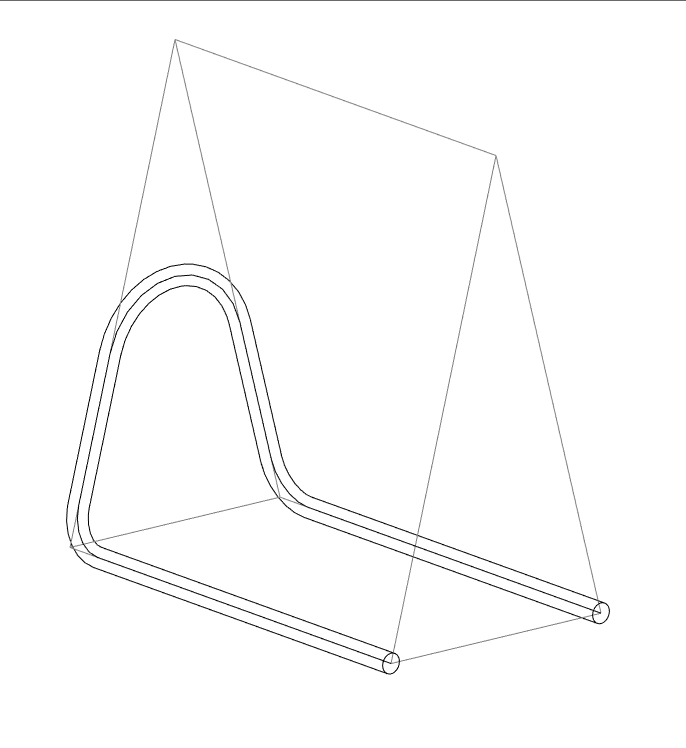

That link you put here was exactly what I needed. Here's an image of basically what I did. Using an extrusion's faces as the reference planes worked like a charm!
|
This user is offline |
|
|
|
active
Joined: Mon, Aug 6, 2012
0 Posts
|
...or you could do it the slower way if you're being paid by the hour.
|
This user is offline |
|
|
|
active
Joined: Mon, Jan 2, 2012
0 Posts
No Rating |
thanks, i did have the same thoughts too.
|
This user is offline |
|
|
|
