Forums >> Revit Structure >> Technical Support >> Section cut - Linked 3d-topography, dwg.

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Nov 25, 2015 at 6:37:10 AM | Section cut - Linked 3d-topography, dwg.

#1

sindreandal


Joined: Tue, Feb 3, 2015
0 Posts
No Rating


Hello.

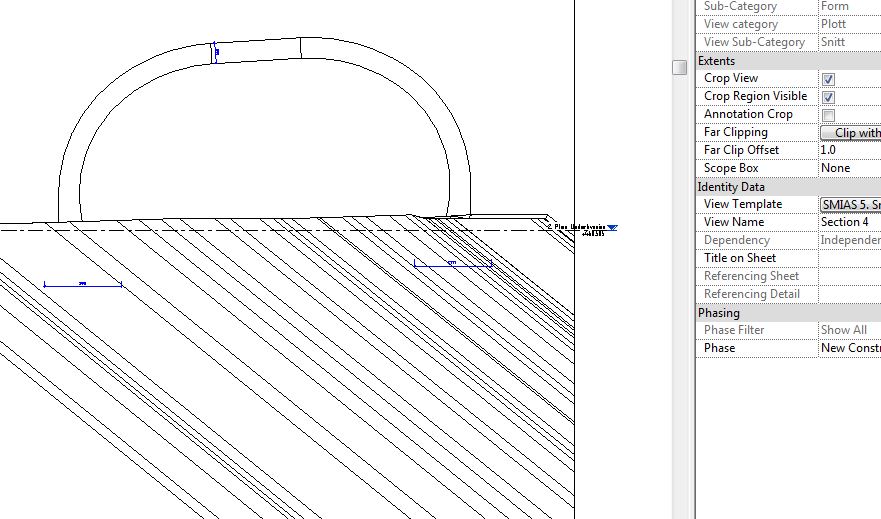

I've linked a dwg-3d model into my project. The problem is the section-cuts. They show endless terrain, wether the "far clip offset" is set to 1 mm.

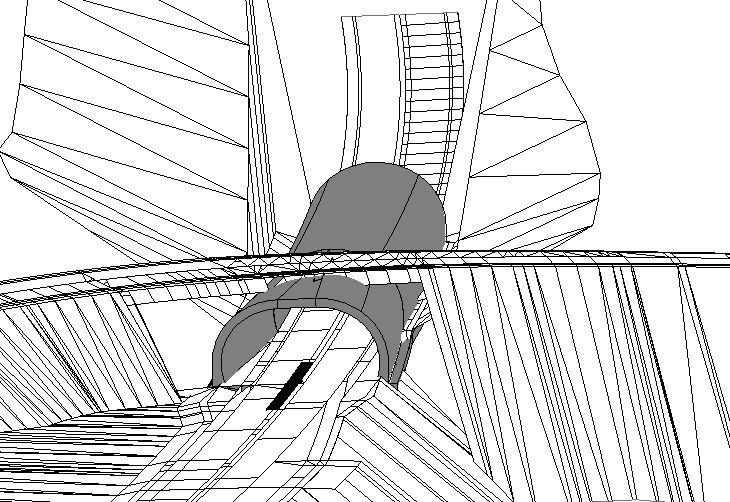

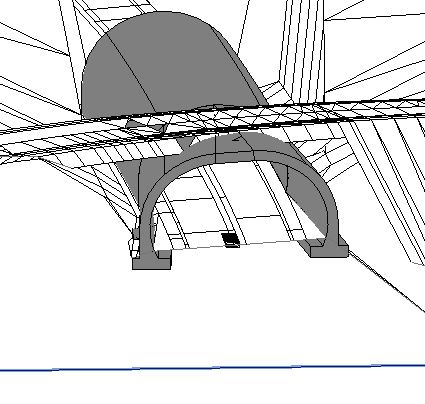

I've attached some pictures in the post. On of them shows my model in 3d-view with a scope box. That is the way I'd liked the 2d-section to be cut.

I greatly appreciate help.
