Forums >> Revit Building >> Technical Support >> Help with symbol (RAC 2014)

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Nov 24, 2015 at 12:25:01 PM | Help with symbol (RAC 2014)

#1

Bolt


active

Joined: Mon, Sep 7, 2015
0 Posts
No Rating


Hello fellow revit enthusiast. I've been using Revit for couple of years for modelling but now I involved in drawing documentation. (RAC 2014)

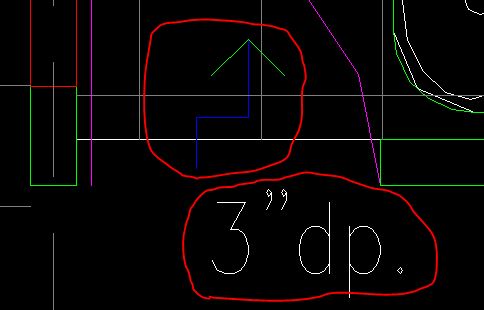

So, I need your help guys. Where can I find the floor drop symbol (see attachment). Usually used to indicate slight changes in floor level. I dont know what the other name of it but I hope you guys get the idea. Should I make a new symbol? Can somebody teach me how to do it? or are there other ways to put it in the drawing?

Sorry if this post is in the wrong topics.

Thanks in advance.

Cheers.



Attached Images


This user is offline



Tue, Nov 24, 2015 at 12:41:12 PM | Help with symbol (RAC 2014)

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes

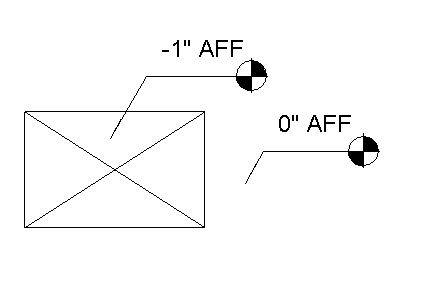

We use a spot elevation symbol that is set to relative to the floor - see attached.

BTW - This depression is a void family - floor based and fully parametric.



We set up or spot elevation so that it hat the target and the text 'AFF''.  You could alter yours to show/say what ever.



Attached Images


This user is offline



Tue, Nov 24, 2015 at 2:50:45 PM | Help with symbol (RAC 2014)

#3

Pitufo067


active

Joined: Fri, Apr 27, 2012
0 Posts
No Rating


We use the attached symbol in our drawings. You could easily change the revit family to match your drop symbol as you would like. Since the symbol you want to use seems fairly simple all you would have to do is open the attached Revit family and remove any hatching. Then use lines to make the symbol the way you want it to look. Once you are done save as. Make sure your project is open then "Load into Project".



This user is offline



Thu, Nov 26, 2015 at 1:44:44 AM | Help with symbol (RAC 2014)

#4

Bolt


active

Joined: Mon, Sep 7, 2015
0 Posts
No Rating


WWHub Pitufo067

I really appreciate the help from you guys. Both solutions work great for me. Thank you!
