Forums >> Revit Building >> Technical Support >> Double-Skin Facade as a "Curtain System" on a "Mass".

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Nov 20, 2015 at 11:24:29 AM | Double-Skin Facade as a "Curtain System" on a "Mass".

#1

AngeloDK


active

Joined: Tue, Jun 3, 2014
0 Posts
No Rating


Hi all.



Student here.

I've been struggling with the double-skin facade of our huge office building.

The building itself has been modelled from a Mass Model. I used Curtain System to create our glass panel walls. After this, I copied each Curtain System and offset it with 800mm, which we decided to be the distance between our two glass panels in the double-skin facade.

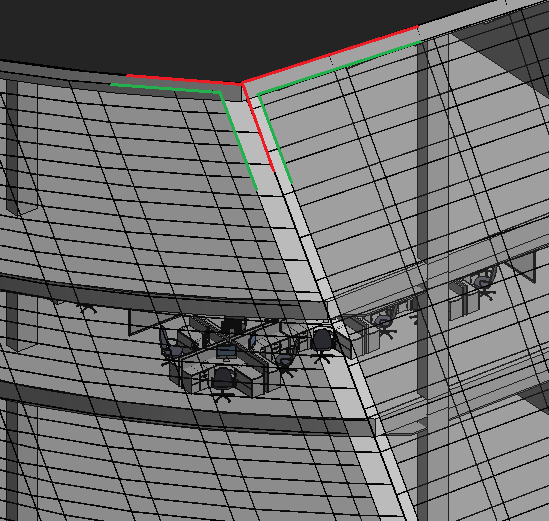

This is where I run in to trouble. As seen on the picture, the original Curtain System is marked in RED, and the offset Curtain System in GREEN. I can't use the tool "Join", because they are not drawn as regular walls.

Does anyone have any tips or tricks, as to how I can connect the two different systems?



Thanks in advance.



Kind regards,



Sebastian



Edited on: Fri, Nov 20, 2015 at 5:25:34 AM

Attached Images


This user is offline



Fri, Nov 20, 2015 at 2:15:14 PM | Double-Skin Facade as a "Curtain System" on a "Mass".

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


You will have to use two different masses.... And every time you need to change this, you will have to edit the appropriate mass.


This user is offline



Sat, Nov 21, 2015 at 1:10:28 PM | Double-Skin Facade as a "Curtain System" on a "Mass".

#3

AngeloDK


active

Joined: Tue, Jun 3, 2014
0 Posts
No Rating


#2



That was a quick and simple solution. Thank you very much.

Have a nice weekend.


This user is offline
