Forums >> Revit Building >> Technical Support >> Trim/align section lines

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Nov 9, 2015 at 3:05:30 PM | Trim/align section lines

#1

KimTaurus


active
KimTaurus Avatar

Joined: Fri, Apr 20, 2007
5 Posts
5 Stars: 3 Votes


For a large project were drawing a terrainsection which is segmented. The section lines have different angles, it's not a split section.

Is there a way to trim/align the section ends at their intersection? Same for the view box? Or will we have to do this manually? We feel like if we do it manually, it's not precise enough.

Also is there a way to have this done in every view, similar to "propagate extents" for grids and levels?

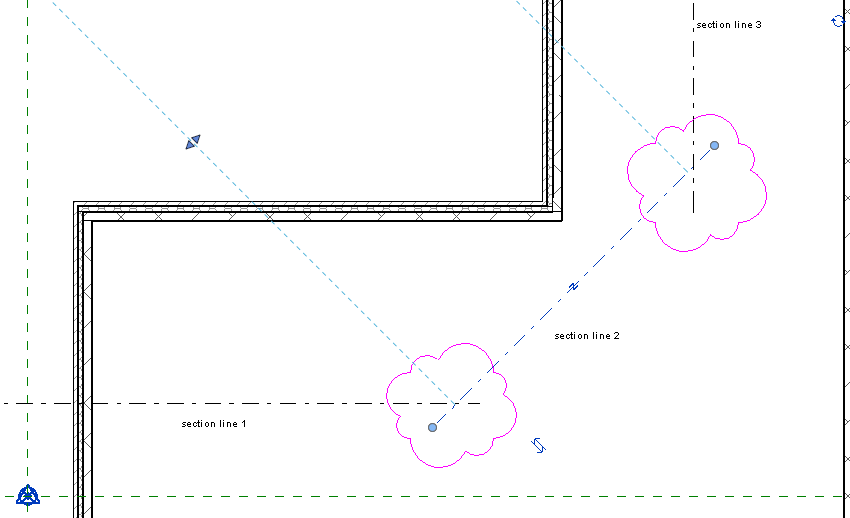

See attached images (not actual project, just an example).

Revit 2016



Attached Images


This user is offline

View Website

Mon, Nov 9, 2015 at 10:05:51 PM | Trim/align section lines

#2

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 35 Votes


Where's the resulting view point from ? Section 2 ? or do you want a 3D section ? or do you want an 'unfolded view' ? Just curious.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Tue, Nov 10, 2015 at 6:58:35 AM | Trim/align section lines

#3

KimTaurus


active
KimTaurus Avatar

Joined: Fri, Apr 20, 2007
5 Posts
5 Stars: 3 Votes


The result we want is what you call an "unfolded view". So the three view from the sections next to eachother.
