Forums >> Community >> Newbies >> Curtain wall not cutting through moulding

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Oct 22, 2015 at 12:17:37 AM | Curtain wall not cutting through moulding

#1

lavendert8


active

Joined: Thu, Mar 12, 2015
0 Posts
No Rating

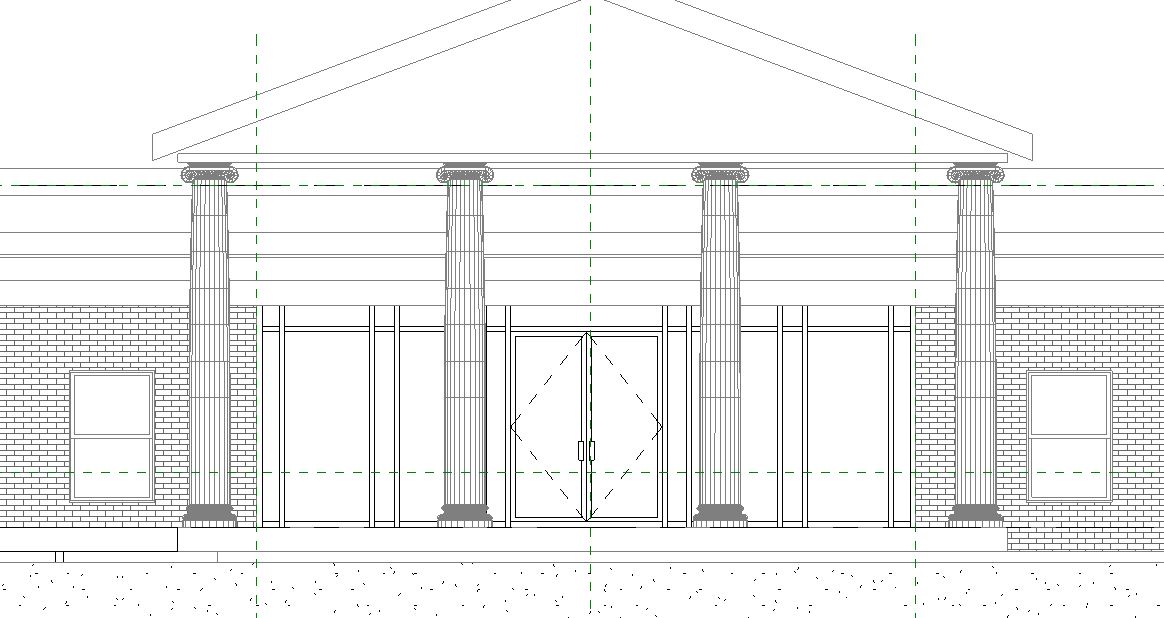

I am working on a renovation project where we are adding a curtain wall that cuts into the existing moulding at the top of the wall. However, when I place the curtain wall the moulding is not cutting out where the new curtain wall is. I created this wall myself with a sweep within the wall type.

Is there any way to get the moulding to cut out where the new wall is. Please see attached.



Attached Images


This user is offline



Thu, Oct 22, 2015 at 12:30:08 PM | Curtain wall not cutting through moulding

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 356 Votes


I am always surprised at users that post images without pointing out the problem.   I can see the CW but I don't have a clue as to where this 'moulding' is.



Should the moulding be copletely cut or only partially?  Communication is what this is all about.


This user is offline



Thu, Oct 22, 2015 at 4:49:27 PM | Curtain wall not cutting through moulding

#3

lavendert8


active

Joined: Thu, Mar 12, 2015
0 Posts
No Rating

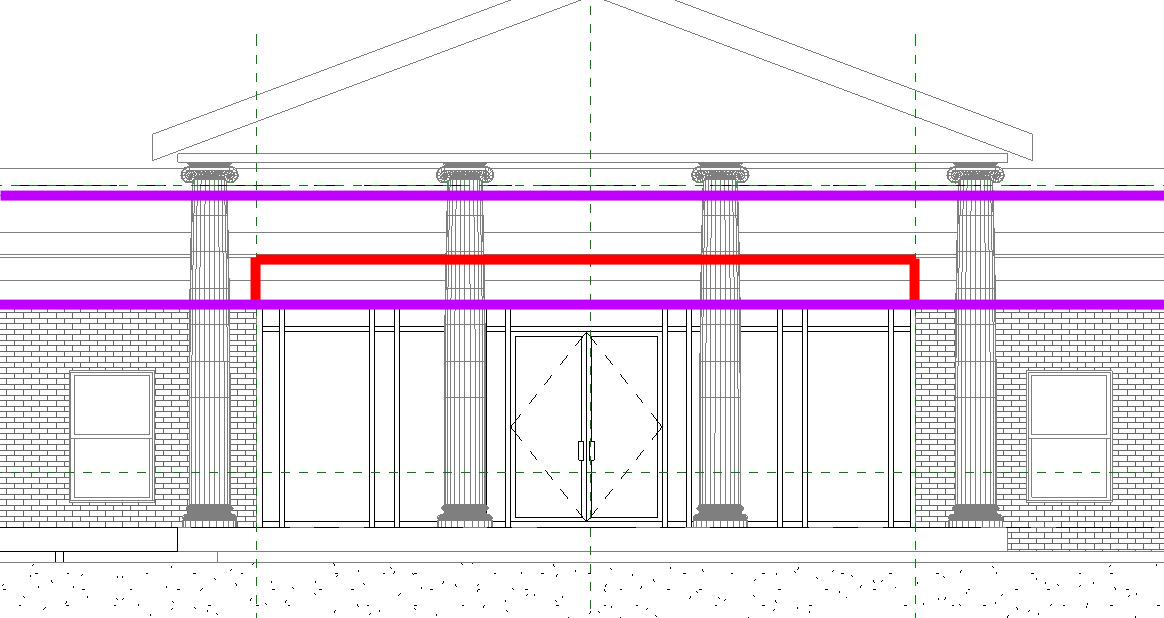

My apologies. Where the red line is is where it cuts into the moulding and the purple is where the moulding is. I hope this clears things up.



Attached Images


This user is offline



Thu, Oct 22, 2015 at 6:32:39 PM | Curtain wall not cutting through moulding

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 44 Votes


Can you attach a section through that area for us?


This user is offline

View Website

Thu, Oct 22, 2015 at 7:23:27 PM | Curtain wall not cutting through moulding

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 356 Votes


I kind of thought it may be what you point out but that is definitely NOT a moulding!  I've never seen a moulding larger than 8-10".



As it is now, your sweep will only cut all or nothing but to cut, the intersection has to be more than half way.



Edit your wall definition - the sweeps and set it to be cutable.


This user is offline



Thu, Oct 22, 2015 at 7:53:44 PM | Curtain wall not cutting through moulding

#6

lavendert8


active

Joined: Thu, Mar 12, 2015
0 Posts
No Rating


Making the sweep cuttable worked. Thank you.
