Forums >> Revit Building >> Tips & Tricks >> Simbolic Lines in CW Awning Windows

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Oct 15, 2015 at 8:12:31 PM | Simbolic Lines in CW Awning Windows

#1

mathikan


active

Joined: Fri, Feb 27, 2015
0 Posts
No Rating

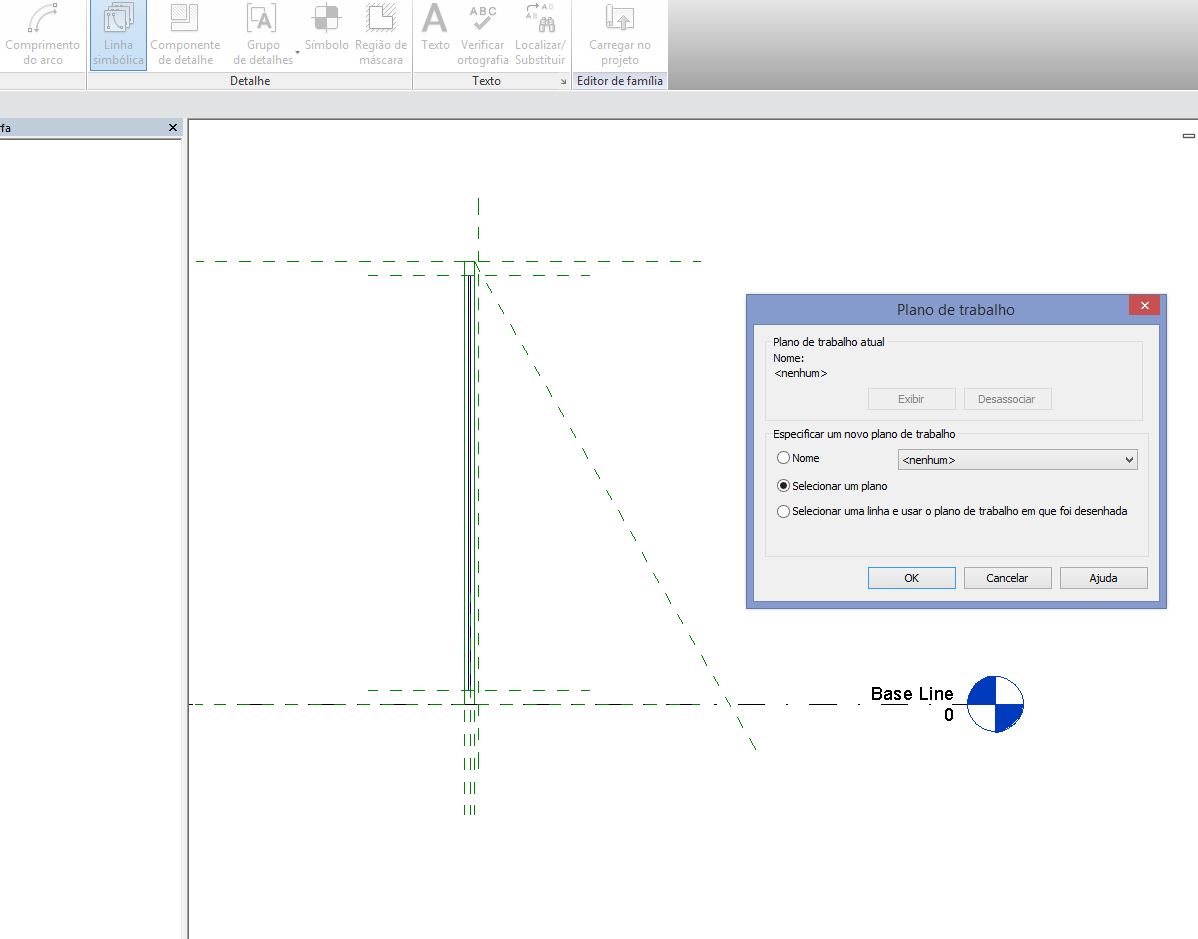

So, I can´t draw simbolic lines in the Left or Right Elevation in a CW Awning Windown family.Every time I try come up a request for me to specify a new work plan. As the image shows.Anyone knows how can i draw these simbolic lines in those specific views?



Attached Images


This user is offline



Thu, Oct 15, 2015 at 8:49:00 PM | Simbolic Lines in CW Awning Windows

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 369 Votes


Every once in awhile, Revit seems to want to do model lines even when you specifically pick symbollic.  Pick the front/back or left/right plane, draw the lines, then pick them and convert them to 2D.
