Forums >> Revit Building >> Technical Support >> Massing problem

3drulez

active

Joined: Tue, Sep 9, 2008
22 Posts

I am trying to model a mass family with a certain set of parameters . Initially starting with only ref planes and points i would later go on to model the forms . But i am stuck at the ref planes and points level itself .

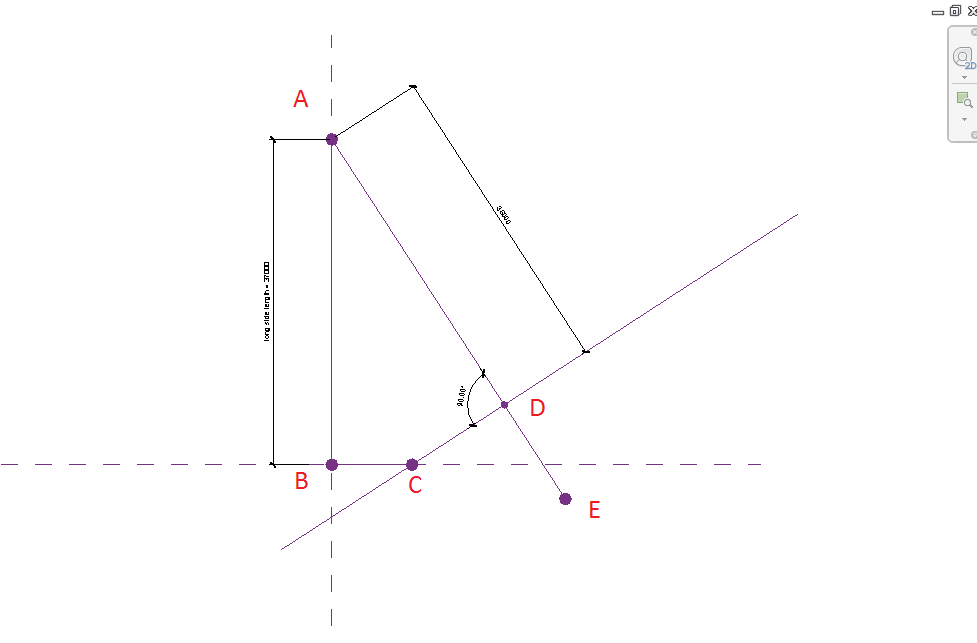

In the attached file the geometry has 4 ref planes in triangular form . Point D is hosted on line . The requirement is that the angle at D should remain 90 deg . And i should be able to adjust length AB and AD so that points A, C and D adjust according to the constraint .

Now i have been able to constrain angle at D to 90 deg . And set length AB as a parameter which flexes properly .

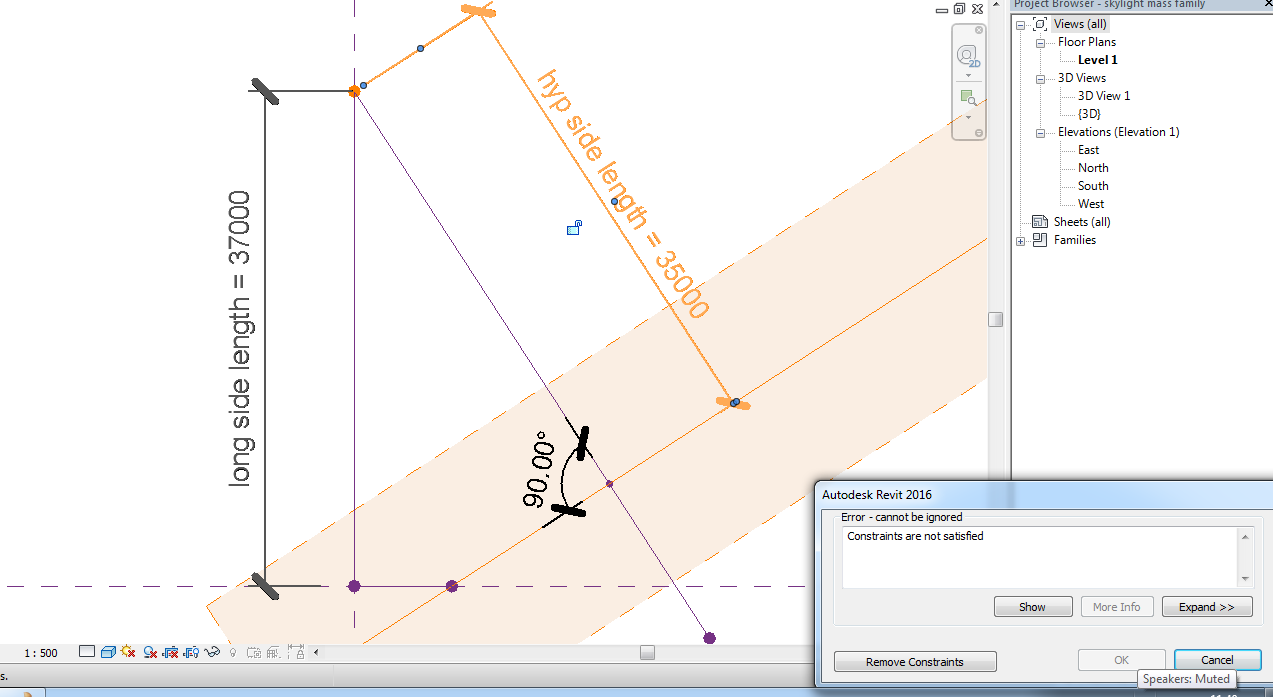

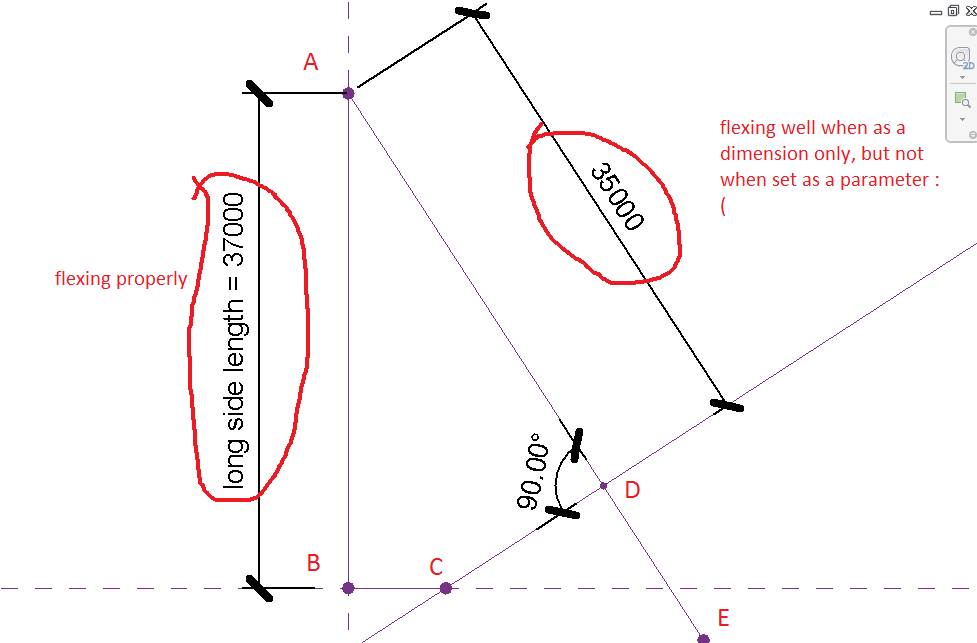

But length AD is not flexing when set as parameter. It flexes otherwise . But not when as a parameter . ( see images )

Attached Images

Attached Files 141909_skylight_mass_family.rfa
