Forums >> Revit Building >> Technical Support >> How to avoid ugly triangular lines on 3D model (shaded/realistic view/rendering?

PaleBluePixel

active

Joined: Fri, Oct 9, 2015
0 Posts
No Rating

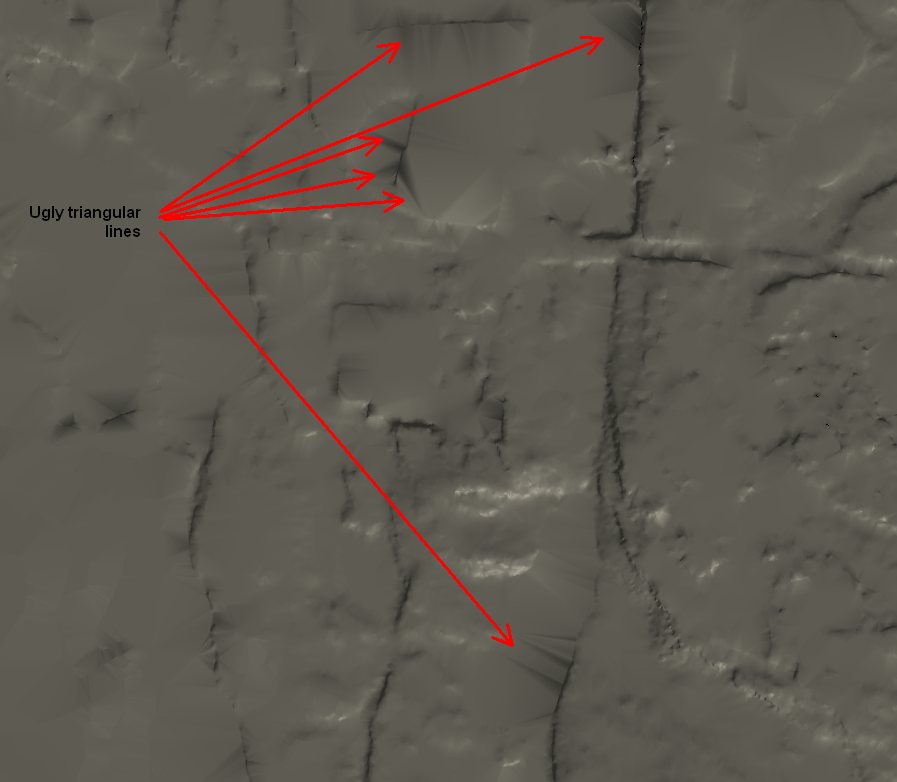

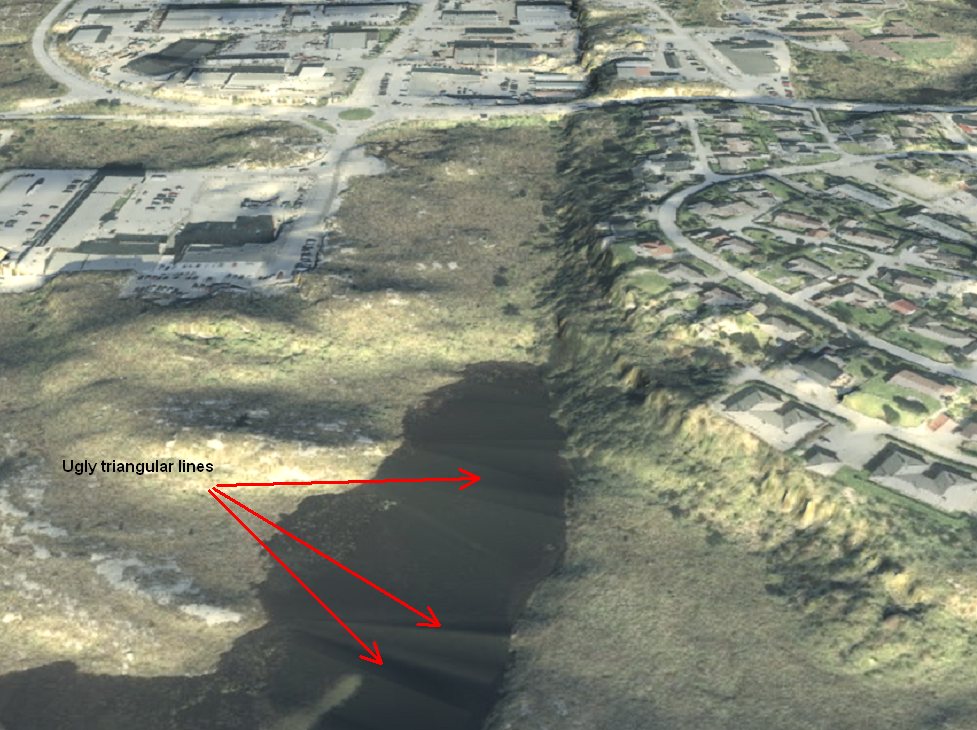

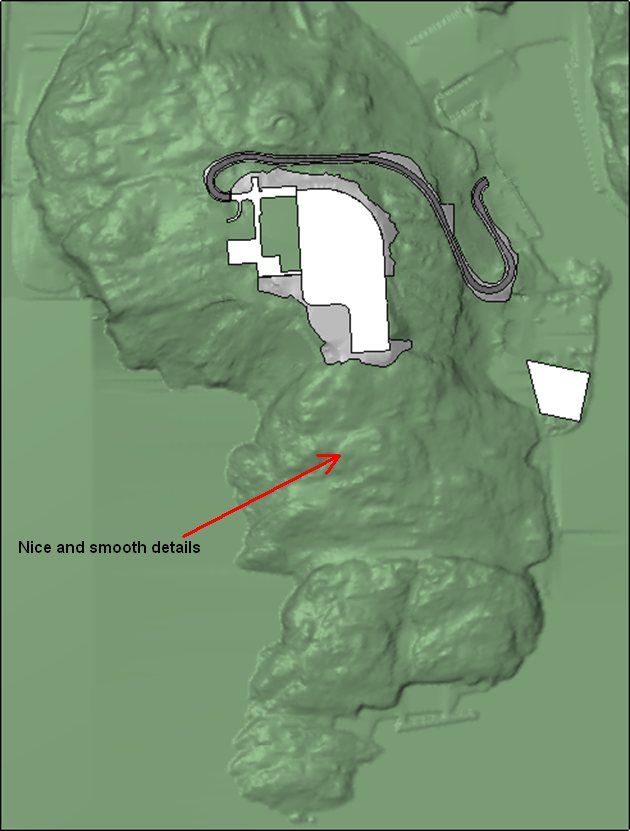

These lines always show up when I make terrain from DWG. Is there any way to make the terrain smoother like in attachment 3 or otherwise avoid these ugly lines?

Thanks!

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

You'll have to increase the number of points in those areas.

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
