Forums >> Revit Structure >> Technical Support >> Pouring A Slab on A Complex Surface

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Oct 6, 2015 at 6:49:51 PM | Pouring A Slab on A Complex Surface

#1

KraigZ


active

Joined: Wed, Feb 5, 2014
0 Posts
5 Stars: 1 Votes

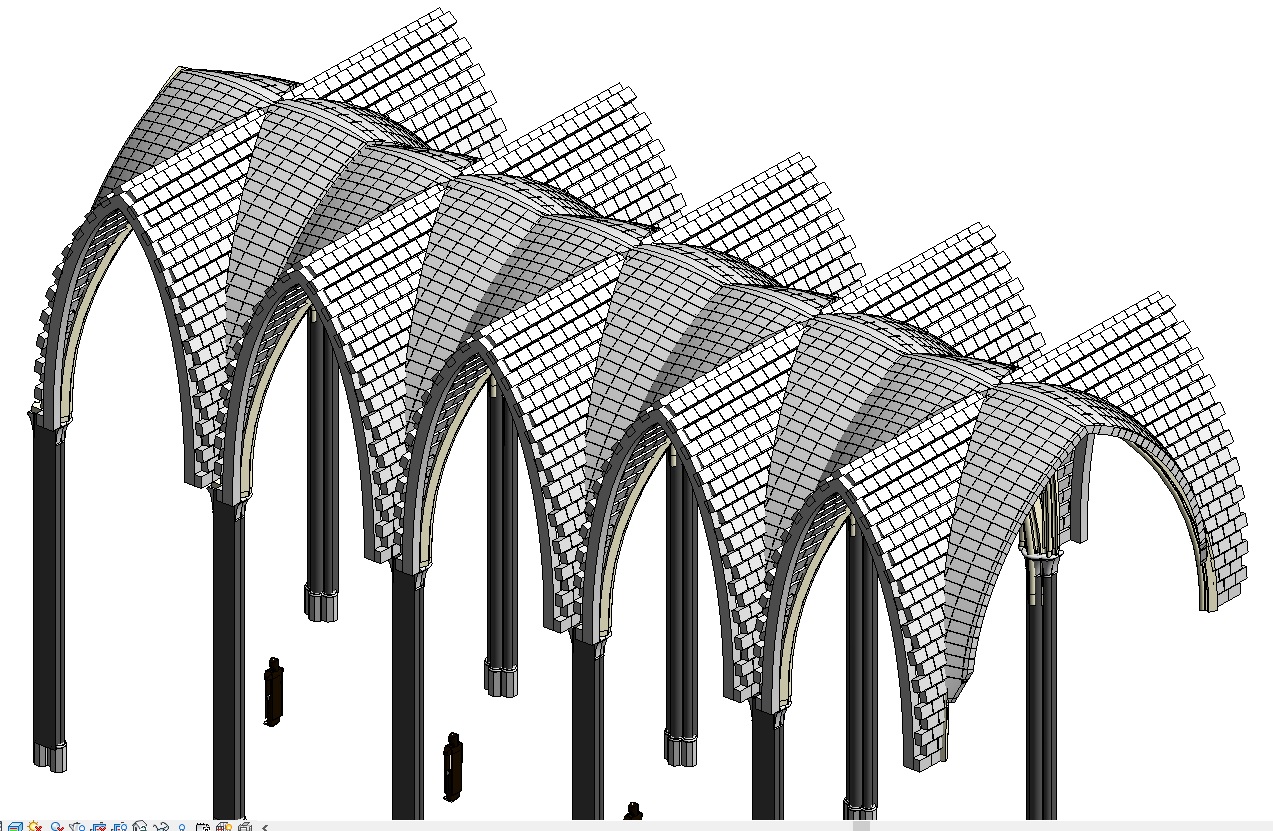

So I am working on a Chapel, and we are designing the roof for a Nave. We need to pour an 8" slab over complex curved surfaces so that stone can be seccured to it. I am having a hard time getting this done in revit. I suppose it could be a different type of component, but i need to show an 8" surface over the top of the surface shown. (see picture) I appreciate your help. If you can help me accomplish this, you will truely be a revit master.



Attached Images


This user is offline



Tue, Oct 6, 2015 at 7:30:15 PM | Pouring A Slab on A Complex Surface

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 346 Votes


Maybe you got this backwards... decide how first before you model.  The Concrete could be a simple layer of a roof.


This user is offline



Thu, Oct 8, 2015 at 9:09:43 PM | Pouring A Slab on A Complex Surface

#3

KraigZ


active

Joined: Wed, Feb 5, 2014
0 Posts
5 Stars: 1 Votes


That wont work, I think because it is to complex. Any other ideas befor i declare this impossible?


This user is offline



Thu, Oct 8, 2015 at 9:25:31 PM | Pouring A Slab on A Complex Surface

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 346 Votes


Absolutly not too complex unless you are not telling us something.  If you modeled those brick like elements then that is a big mistake.


This user is offline



Tue, Oct 13, 2015 at 8:20:17 AM | Pouring A Slab on A Complex Surface

#5

tahaij


active

Joined: Sun, Aug 9, 2015
0 Posts
No Rating


you can use roof by profile, you will get two roof objects for each galley.


This user is offline



Tue, Oct 13, 2015 at 10:44:45 PM | Pouring A Slab on A Complex Surface

#6

crwinchester


active
crwinchester Avatar

Joined: Sat, Sep 4, 2010
173 Posts
3.5 Stars: 4 Votes


Additionally, you could do a roof by picking the face of a mass being used to drive the overall shapes of the vaults. The process is important like WWHub said. Based on that, there many ways you could do this.


This user is offline



Wed, Oct 14, 2015 at 5:26:32 PM | Pouring A Slab on A Complex Surface

#7

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes


send capture of existing roof details, including Edit Assembly of Roof Properties


This user is offline
