Forums >> Revit Building >> Technical Support >> Detail Line with Text & Arrow
|
|
active
Joined: Wed, Mar 3, 2010
0 Posts No Rating |
I created this family watching a Youtube video and I can't seem to add an arrow... I wanted to add an arrowhead (using either detail lines or filled region) in between text to show path of travel. I tried to add parameters but it does not center between the text, and it also doesn't repeat.
The spacing / number of text changes depending on the length of the line. Therefore, I am not sure where I need to add parameters to center this arrow.
Please help me out!
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 3, 2010
0 Posts
|

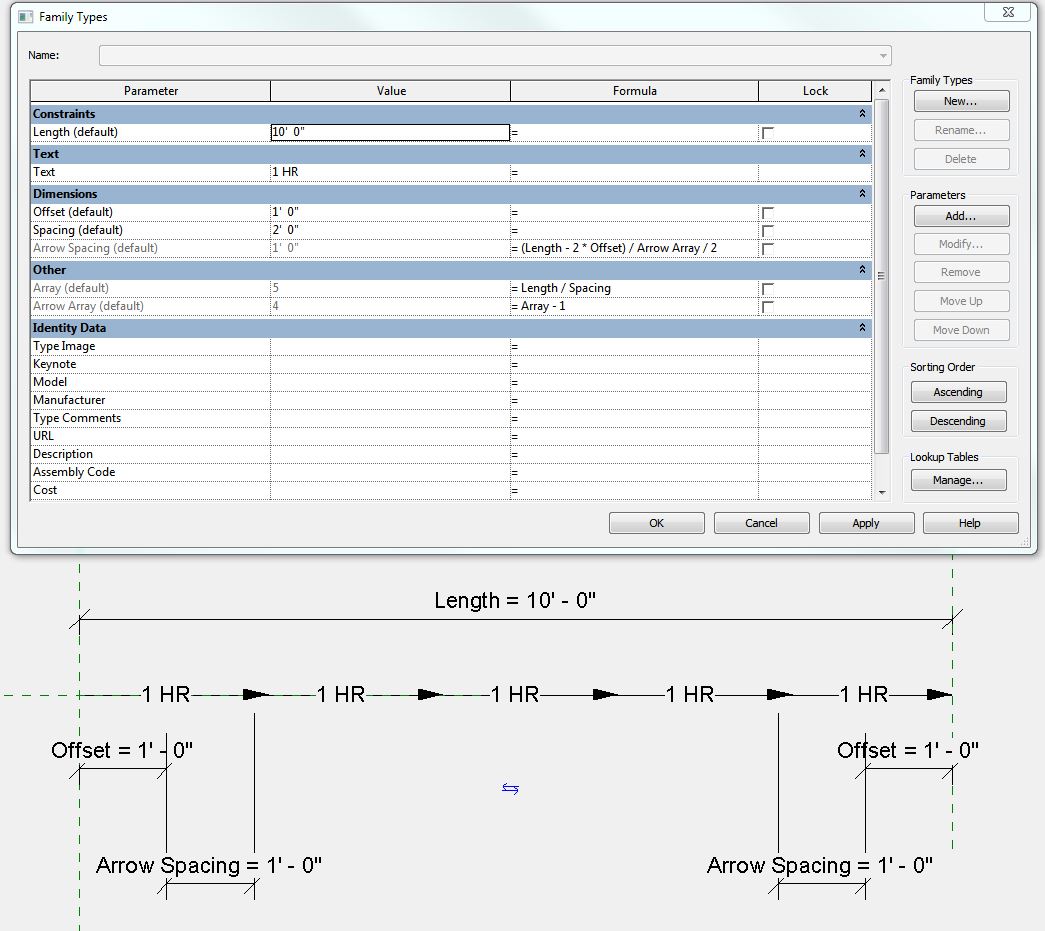

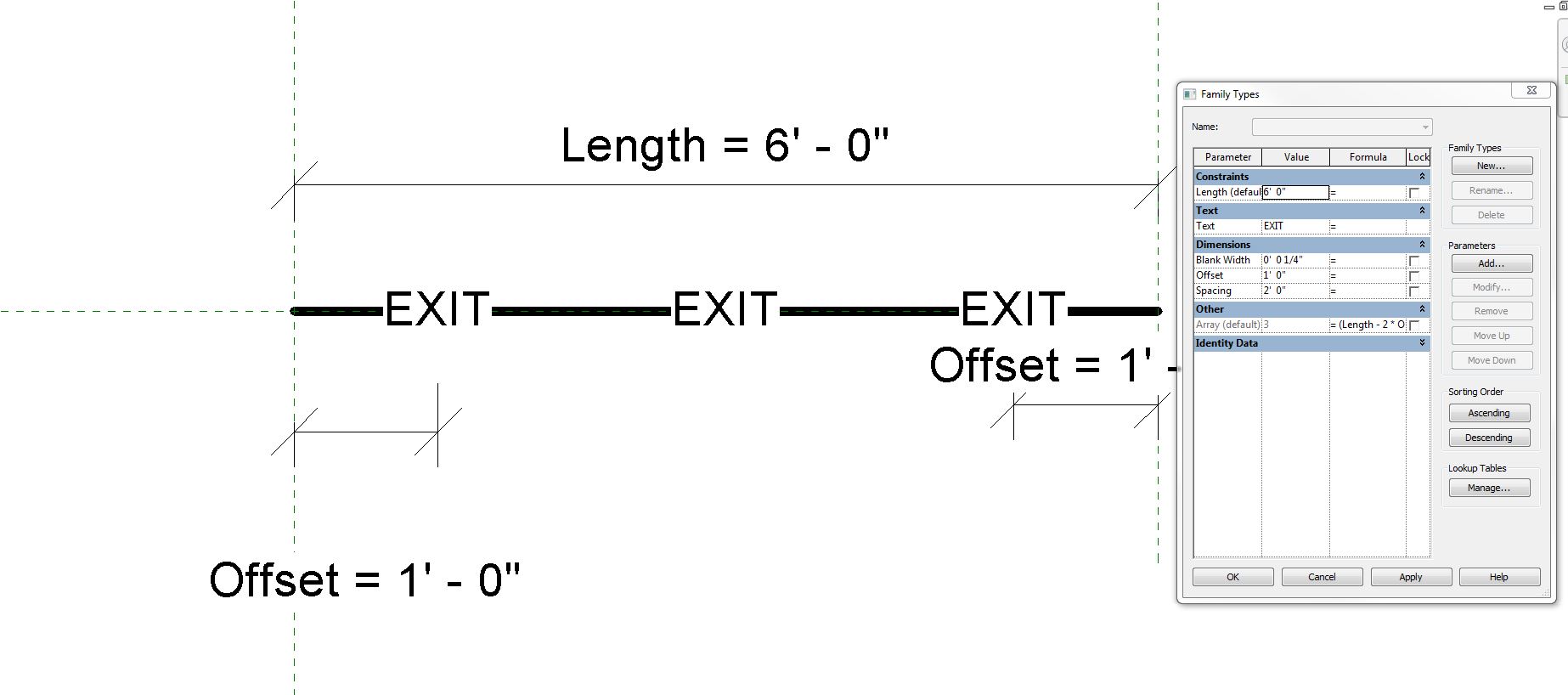

Take a look at the enclosed family.
Also, you will notice (maybe you did already) that the line goes across the text when printing. See this for the solution.
|
This user is offline |
|
|
active
Joined: Wed, Mar 3, 2010
0 Posts No Rating |
Thank you! This is exactly what I needed.
I added a masking region in the symbol text family to solve that issue.
Thank you so much.
|
This user is offline |
|
|
|
