Hi,

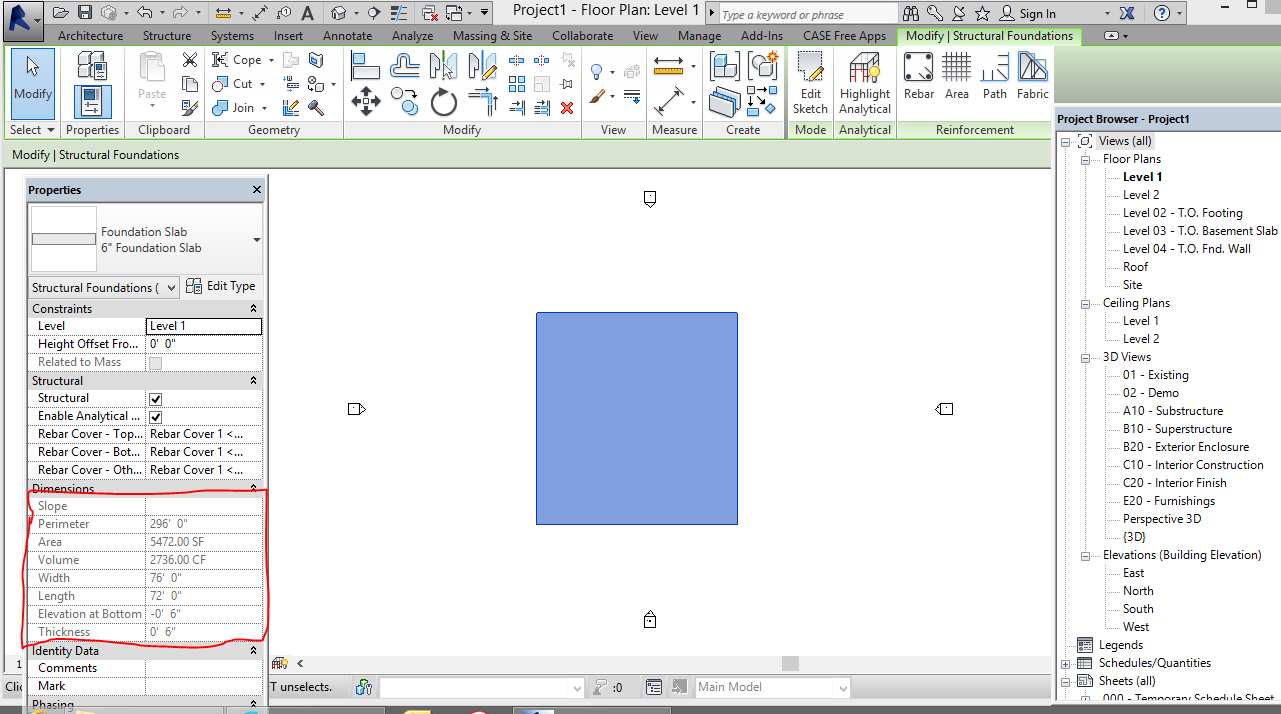

While drawing foundation Slab I can see Dimensions at properties tab and same may be populated

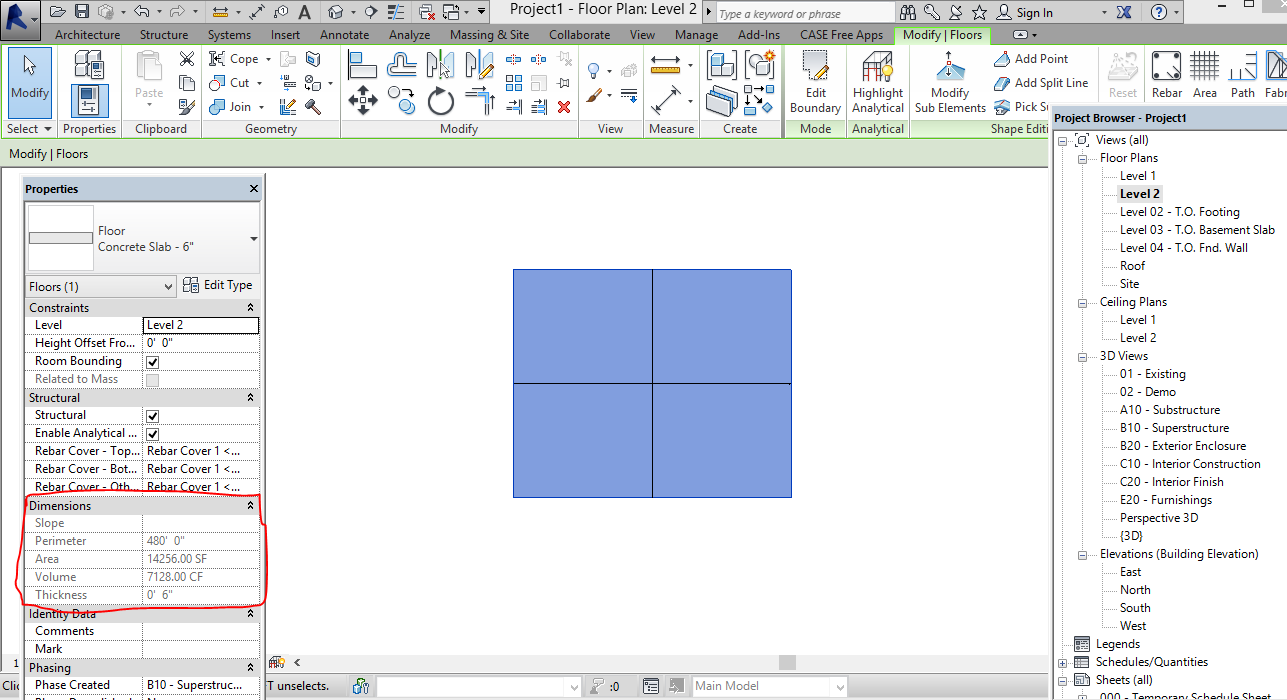

to schedule as well (refer attachment).But, When I draw a floor slab it doesnt happen (refer attachment).

I want same to happen with floor slab. any help would be appreciated.

Thanks in advance.

Amit

Attached Images

This user is offline

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

I never noticed that before and I'm not sure how useful those parameters are anyway. It's only of use if the slab is a perfect rectangle with 4 square corners. If the foundation slab perimeter has more than 4 sides or any angles those width and length parameters kind of go out the window or just become what would be the 'bounding box'.

-----------------------------------

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150

This user is offline

View Website

AmitKumarYadav

active

Joined: Sat, Apr 19, 2014
0 Posts
No Rating

Hi,

Thanks for observation, though I am seeking parmeters(LxB) for rectangular floor slab only, and they are required for sheduling purpose and very useful.

Thanks,

Amit
