Forums >> Revit Structure >> Technical Support >> Rectangular Concrete Beam in Section

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Aug 10, 2015 at 1:19:50 PM | Rectangular Concrete Beam in Section

#1

minfante14


active

Joined: Tue, Dec 30, 2014
0 Posts
No Rating

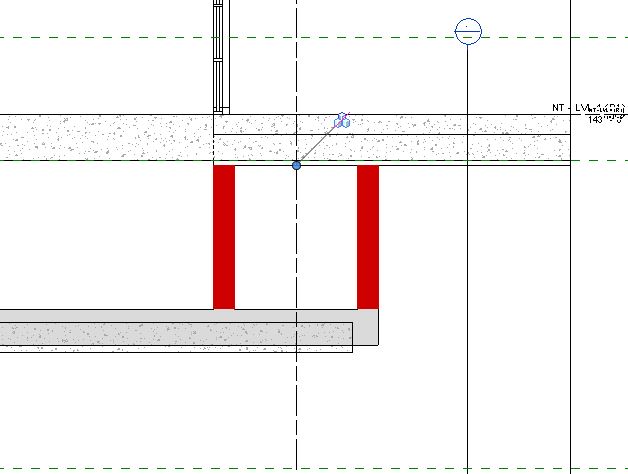

I'd like to put this out there and see if anyone has witnessed this before. The attached image shows our concrete beam (64"x62") cut in a section view.  It is selected  and highlighted in red.

Anybody know why the entire section of beam is not solid?  It appears hollowed out.



-Marvin





Attached Images


-----------------------------------

Marvin L Infante

BIM Technician

Denver Colorado

This user is offline



Mon, Aug 10, 2015 at 1:31:32 PM | Rectangular Concrete Beam in Section

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Is this an out of the box family or one you built?  If you start a new project and cut it in section does it do the same thing?  Is the actually family solid?


This user is offline

View Website

Mon, Aug 10, 2015 at 2:22:38 PM | Rectangular Concrete Beam in Section

#3

minfante14


active

Joined: Tue, Dec 30, 2014
0 Posts
No Rating


I just realized that I can nudge move the beam and the void will remain in the same spot.  I placed other beams of the same family and they were fine.  There's something else to investigate.

Thanks.


-----------------------------------

Marvin L Infante

BIM Technician

Denver Colorado

This user is offline
