Forums >> Revit Structure >> Technical Support >> wall & beam join

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 30, 2015 at 2:10:20 PM | wall & beam join

#1

Husseinedrees


active

Joined: Wed, Jun 24, 2015
0 Posts
No Rating

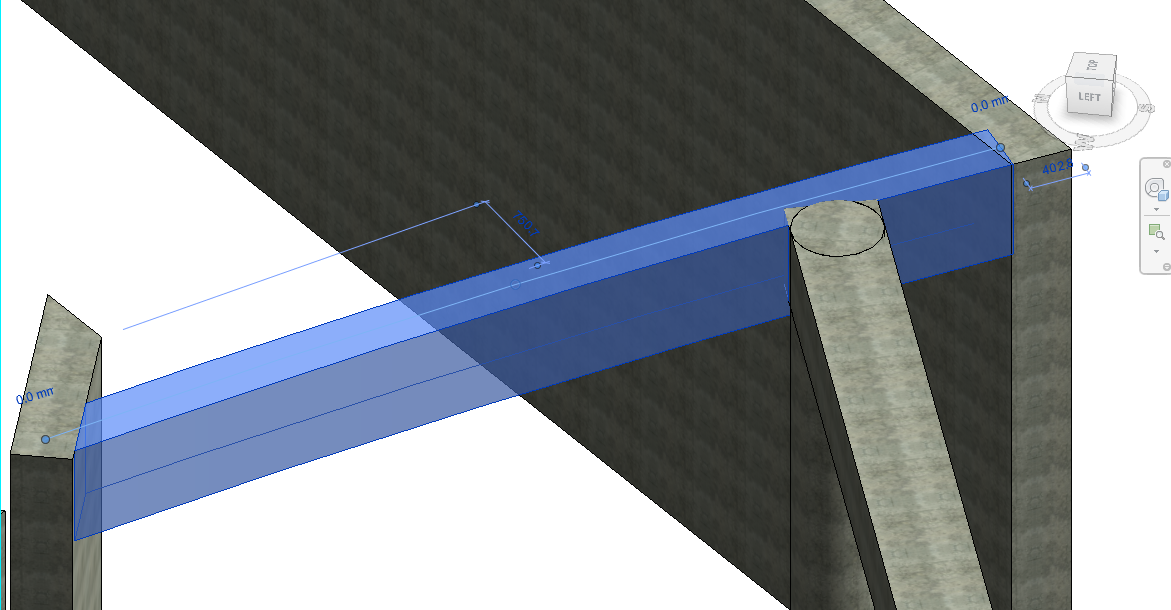

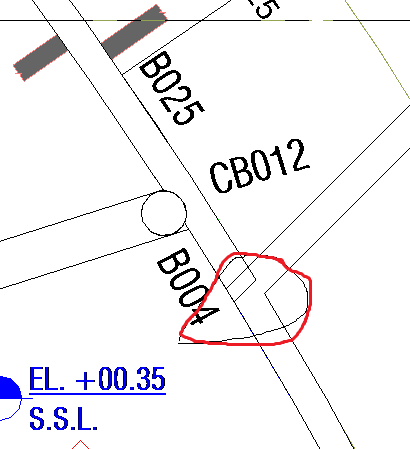

it seems like when ever i try to join (structural wall) with Beam both maretial are conrete , i cant manage to join them , they tend always to interference with each other , knowning that the beam is curved

how to fix??????



Attached Images


This user is offline



Tue, Jun 30, 2015 at 4:14:46 PM | wall & beam join

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


Something is wrong in your process.

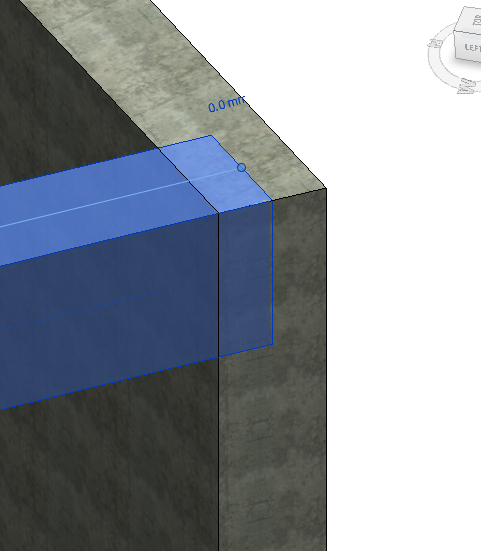

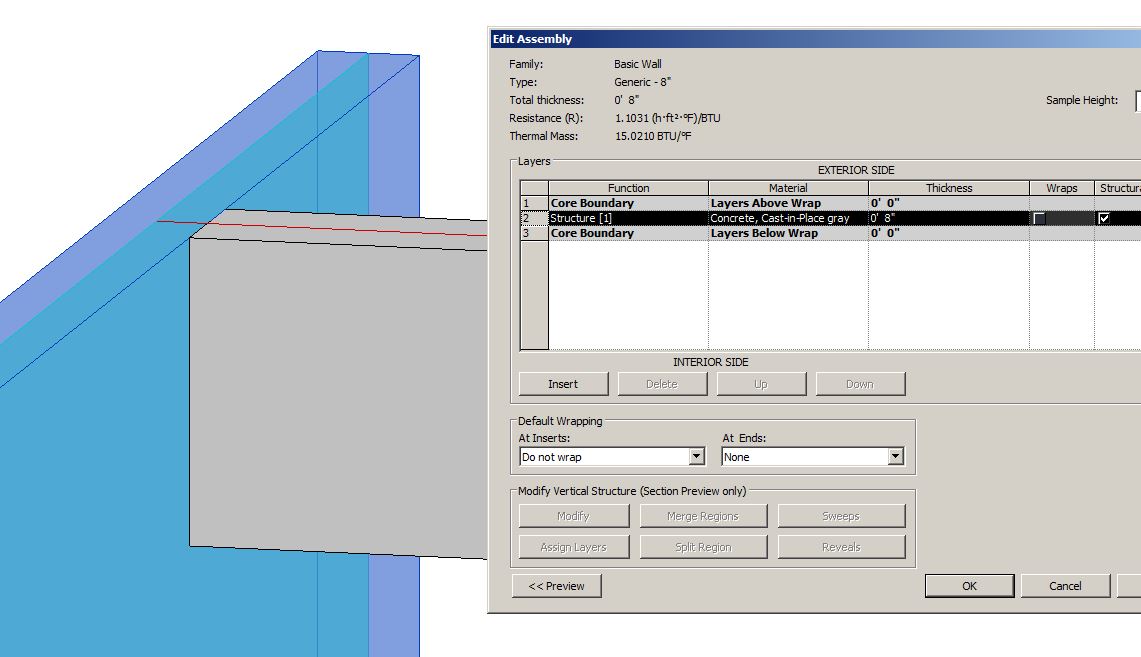

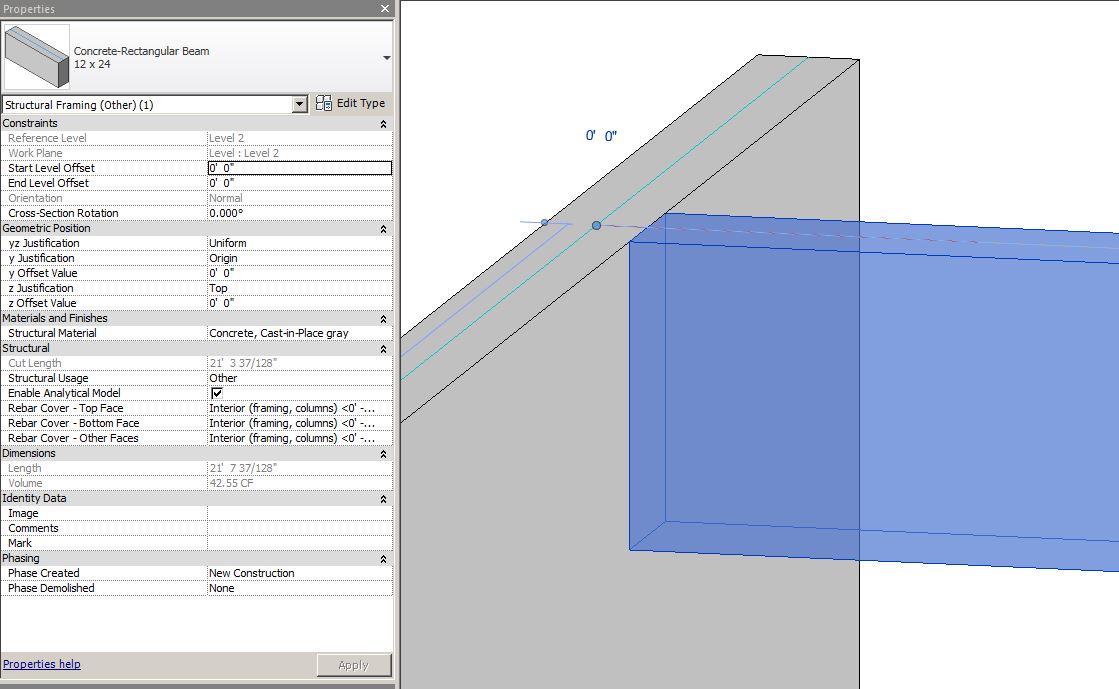

Here is a structural wall with a structural beam - both the same material.



Attached Images


This user is offline



Tue, Jun 30, 2015 at 10:56:50 PM | wall & beam join

#3

Husseinedrees


active

Joined: Wed, Jun 24, 2015
0 Posts
No Rating


yes i kn if they are the same structural material they should auto-join , but i am talking about if u draw the beam CURVED , with arch line three points , or with spline shape and try to join it with a wall


This user is offline



Wed, Jul 1, 2015 at 1:46:29 AM | wall & beam join

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes

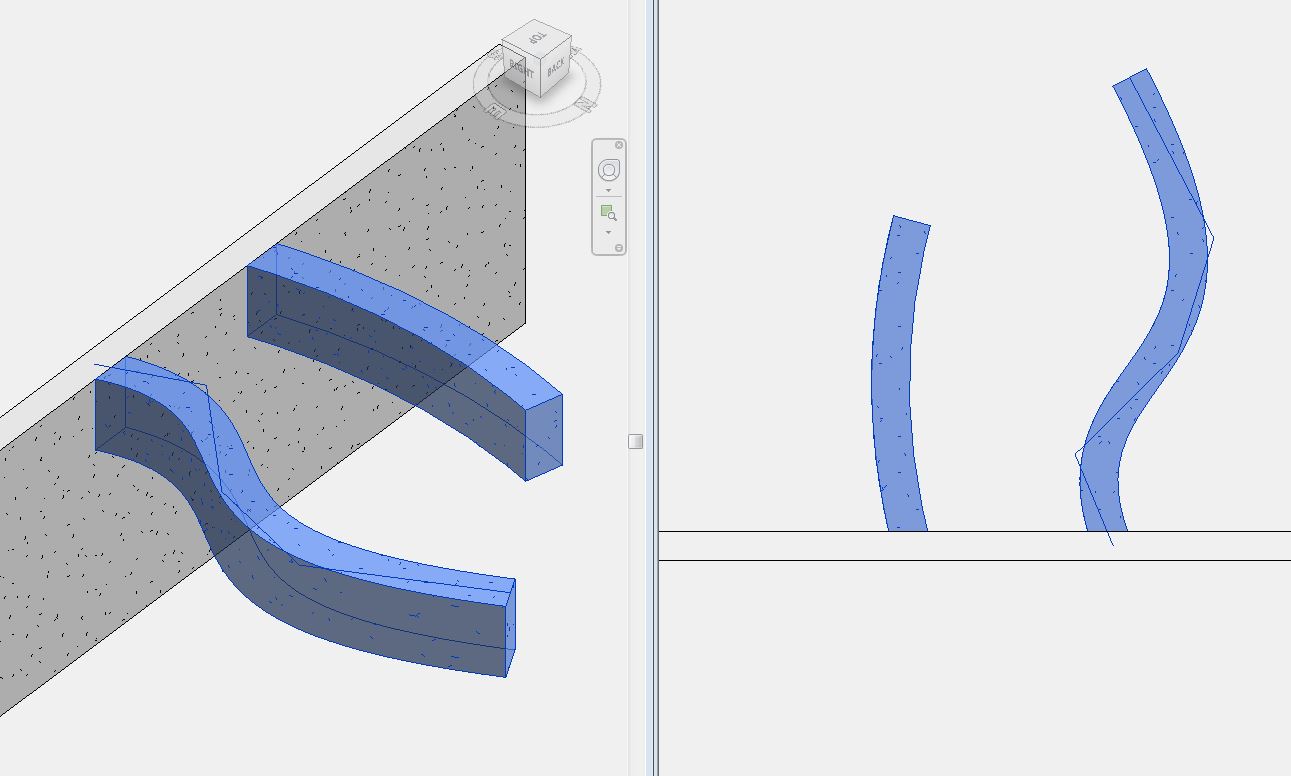

Curved and spline work ok as well.

Can you upload your file with the beam and the wall in question only?



Attached Images


This user is offline



Wed, Jul 1, 2015 at 9:29:46 AM | wall & beam join

#5

Husseinedrees


active

Joined: Wed, Jun 24, 2015
0 Posts
No Rating

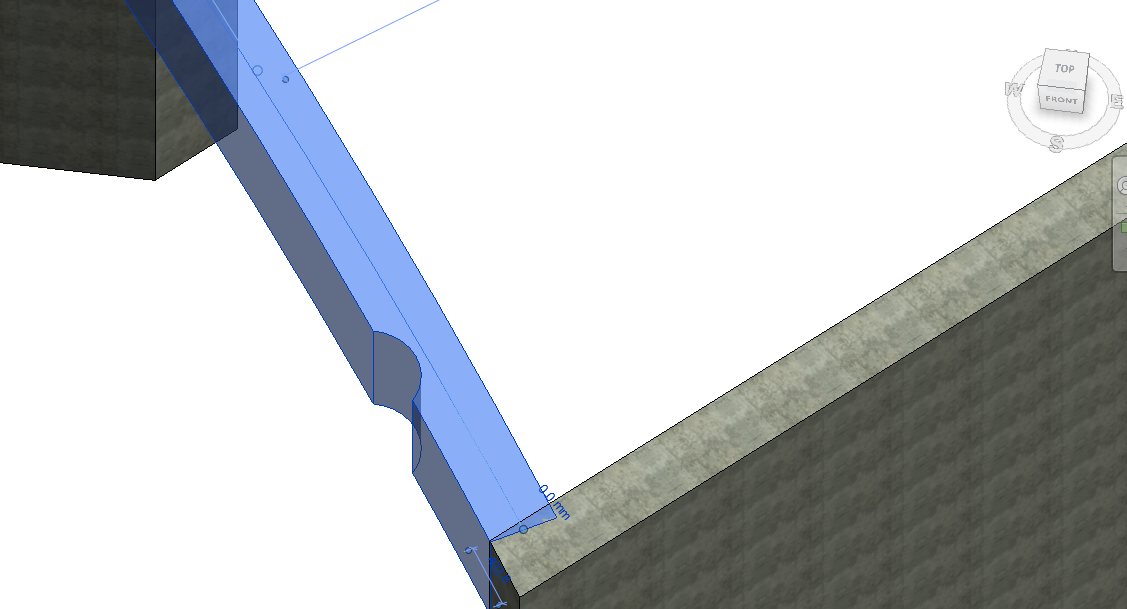

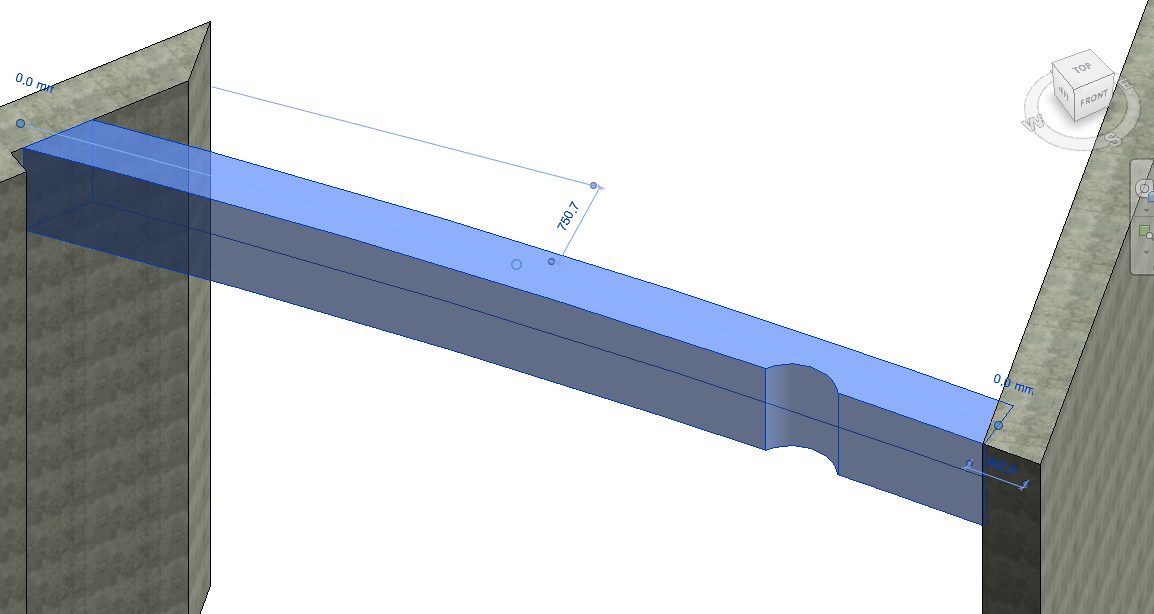

one side is well connected the other side is not!!! , for me i think it is some kind of a BUG , because all this is the only frame i have this problem with in the whole project up-tell now



Edited on: Wed, Jul 1, 2015 at 5:08:53 AM

Attached Images


This user is offline



Fri, Jul 3, 2015 at 1:49:21 AM | wall & beam join

#6

Husseinedrees


active

Joined: Wed, Jun 24, 2015
0 Posts
No Rating


i fixed it , it was a REVIT BUG , by time i closed-open revit again and just like magic the Beam is able to join the wall , after i checked (material are the same), all process&parametars are in the right way they joined Smile
