Forums >> Community >> Newbies >> roofs - extra geometry after joining

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jun 25, 2015 at 2:52:55 AM | roofs - extra geometry after joining

#1

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


Hello.   Ater joining  two roof planes, some odd geometry appears. If I unjoin, it goes away.

How do I prevent this?   Or how do I get rid of it.

A couple pdfs attached and the REVIT (2016) file.

Thank you,

JK



This user is offline



Thu, Jun 25, 2015 at 3:02:49 AM | roofs - extra geometry after joining

#2

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


revit 2016 file now attached.  I had to strip everything out of it to get it small enough t attach but roofs still show.

Thanks again,

JK



This user is offline



Thu, Jun 25, 2015 at 11:57:18 AM | roofs - extra geometry after joining

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


I'm assuming you did this in 2016 because I can't open it. Just looking at the images it looks like its a fascia, do you have a fascia put on the roof?


This user is offline

View Website

Thu, Jun 25, 2015 at 1:51:08 PM | roofs - extra geometry after joining

#4

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


yes 2016.

no fascia.

generic roof, generic walls.


This user is offline



Fri, Jun 26, 2015 at 2:59:55 AM | roofs - extra geometry after joining

#5

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes

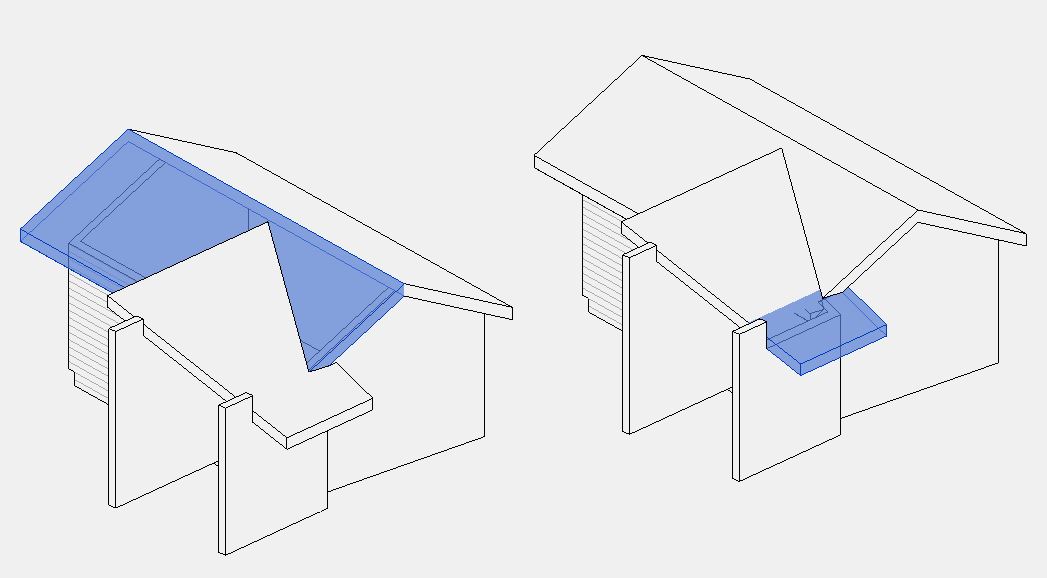

You can divide your shed or gable roof – see pic.



Attached Images


This user is offline



Fri, Jun 26, 2015 at 3:56:03 AM | roofs - extra geometry after joining

#6

KennedyDrafting


active

Joined: Fri, Apr 24, 2015
0 Posts
No Rating


User Menupijpiwo - thanks!
