Forums >> Revit Building >> Technical Support >> Imported hatch patterns appear corrupted

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, May 21, 2015 at 4:19:33 PM | Imported hatch patterns appear corrupted

#1

buttonsrtoys


active

Joined: Wed, Feb 10, 2010
40 Posts
1 Stars: 1 Votes

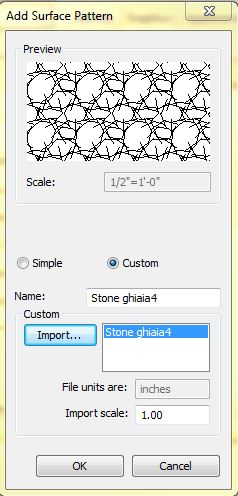

I need a stone hatch pattern and am downloading .pat files from here and elsewhere but when I import them, they all appear corrupted in the Preview window and aren't showing up properly on my surfaces. Attached is a screen grab of my dialog importing the hatch with shows what's going on. I've tried a couple dozen installs with always the same corrupted result. I'm porting them as "model" hatches and the files all appear to have the requisite Revit text added.

I haven't done much hatch pattern importing. The process seems straight forward but maybe I have a setting wrong somewhere? E.g., maybe I'm in metric and these hatch patterns are in a different unit?



Attached Images


This user is offline



Thu, May 21, 2015 at 5:14:14 PM | Imported hatch patterns appear corrupted

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 352 Votes


Probably a bad hatch to begin with.   Some hatches made by an automatic hatch generator don't always work.


This user is offline



Thu, May 21, 2015 at 6:23:36 PM | Imported hatch patterns appear corrupted

#3

buttonsrtoys


active

Joined: Wed, Feb 10, 2010
40 Posts
1 Stars: 1 Votes


Thanks for the thoughts. Turns out it was a newbie mistake and I hadn't noticed the scale factor at the bottom and it was importing with a scale of 1.0. When I bumped it up to 24.0, it looked great.


This user is offline



Thu, May 21, 2015 at 8:16:53 PM | Imported hatch patterns appear corrupted

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 352 Votes


If the pattern is made correctly, then the scale will typically never matter.   However, when you have very intricate patters, tiny lines become a problem.


This user is offline
