Forums >> Revit Structure >> Technical Support >> Continuous plate on top of wall...how?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, May 21, 2015 at 7:53:30 AM | Continuous plate on top of wall...how?

#1

RevitRural


active

Joined: Wed, Oct 1, 2014
0 Posts
No Rating

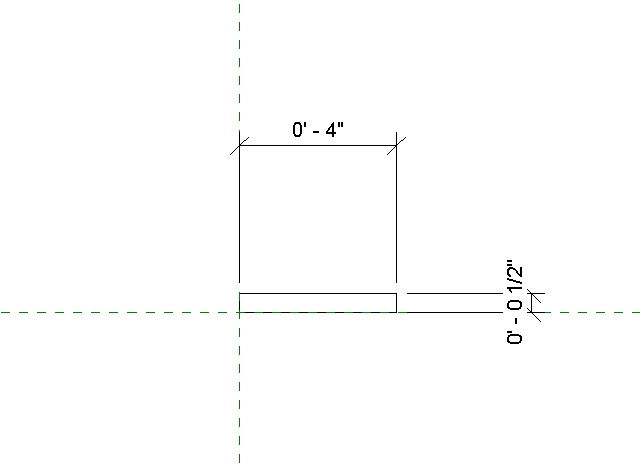

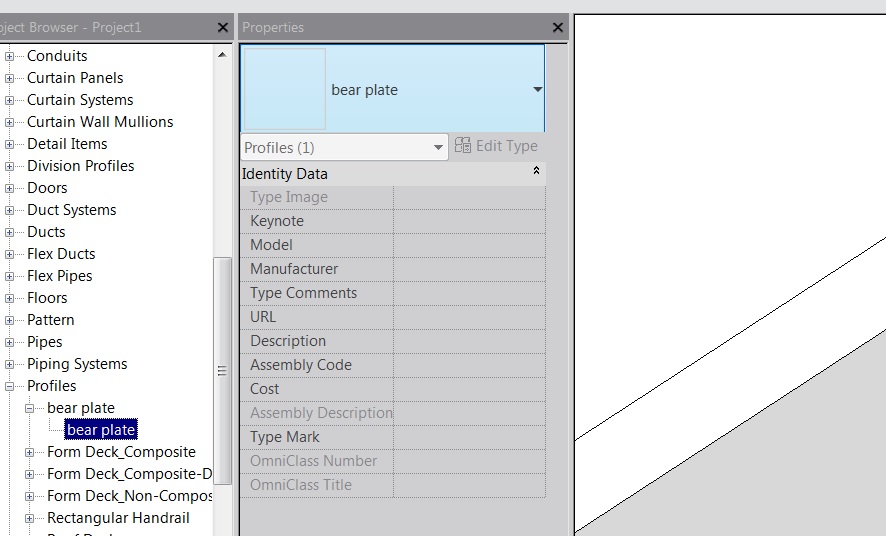

This seems easy, but I am failing. I created a "Profile" based family [SEE FIG 1] but it will not allow me to use it. Why not?

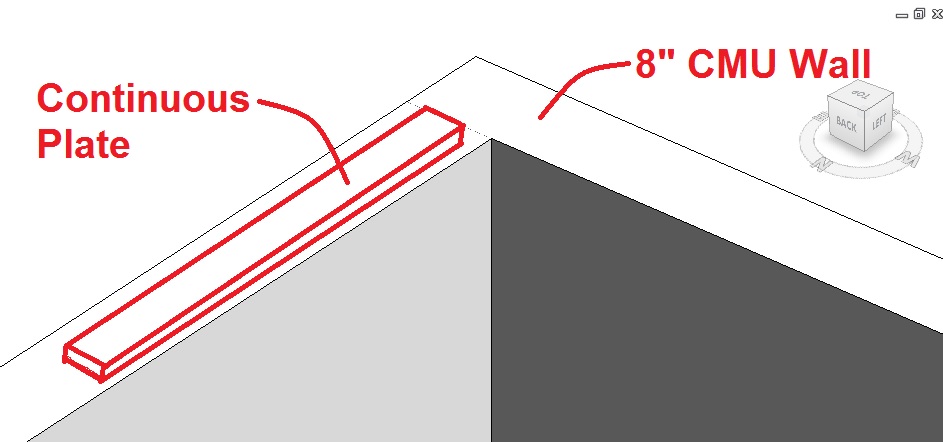

FIG 2 is what I am after. How do I accomplish this?

Thanks.



Attached Images


This user is offline



Thu, May 21, 2015 at 8:23:19 AM | Continuous plate on top of wall...how?

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Go to architecture tab->wall (little pull down arrow)->wall sweep->edit type (in properties)->duplicate->under construction (profile) pick your profile (bear plate).


This user is offline



Thu, May 21, 2015 at 8:47:40 AM | Continuous plate on top of wall...how?

#3

RevitRural


active

Joined: Wed, Oct 1, 2014
0 Posts
No Rating


I would not had guessed to use it was a wall sweep, but that did it.

Thanks so much.


This user is offline
