Forums >> Revit Building >> Technical Support >> Wall on Topo Site

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Mar 22, 2006 at 8:28:09 PM | Wall on Topo Site

#1

honster


active

Joined: Fri, Jan 13, 2006
3 Posts
No Rating


how does one draw a curve wall on a topo site? I want to draw a curve wall 12 feet height from the ground of a hilly site. the elevation varies. I have created the 3d landscape, but dont know how to draw a wall or fence on the 3d topo. please anyone? hon@onyxgroup.com

This user is offline



Thu, Mar 23, 2006 at 4:19:07 AM | RE: Wall on Topo Site

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


do you want the bottom of the wall to attach to the topo? in short you can't! you can try and create a void family that will sort off follow your topo (to an extent) and cut the botton of the wall off... do you have an image of what you want?

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Thu, Mar 23, 2006 at 1:59:30 PM | RE: Wall on Topo Site

#3

honster


active

Joined: Fri, Jan 13, 2006
3 Posts
No Rating


ok... Image the Great Wall of China. image a terrain that is very steep, and a wall running up the a hill and down to the valley. I need to be able to draw on a site that is not flat. Also how do one draw roads on a slope site?? plesae help

This user is offline



Thu, Mar 23, 2006 at 10:33:53 PM | RE: Wall on Topo Site

#4

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


sorry mate, this feature was requested so many times and sad to say that it doesn't look like 9 got it as well Sad for roads you might want to split topo and apply different material, you can also look at a tutorial I wrote "complex slabs..." that's the best you can do now HTH

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Fri, Mar 24, 2006 at 1:48:01 PM | RE: Wall on Topo Site

#5

honster


active

Joined: Fri, Jan 13, 2006
3 Posts
No Rating


Eldados, thanks...where can i download your " tutorial I wrote "complex slabs..."" I like to go through it. thanks again

This user is offline



Wed, May 28, 2008 at 6:13:35 AM | Wall on Topo Site

#6

timbo89


active
timbo89 Avatar

Joined: Fri, Dec 14, 2007
135 Posts
4 Stars: 5 Votes


Hey, I think I found a cheap way to do something like this. Instead of modelling the toposurface, you create a floor and modify it using slab edges to match the topography. Then you are able to attach the wall to this floor, and are able to draw lines on the bottom of the wall which follow the slope. You can then offset any distance from these lines, which makes the wall always a certain distance above the slope. Hope this helps

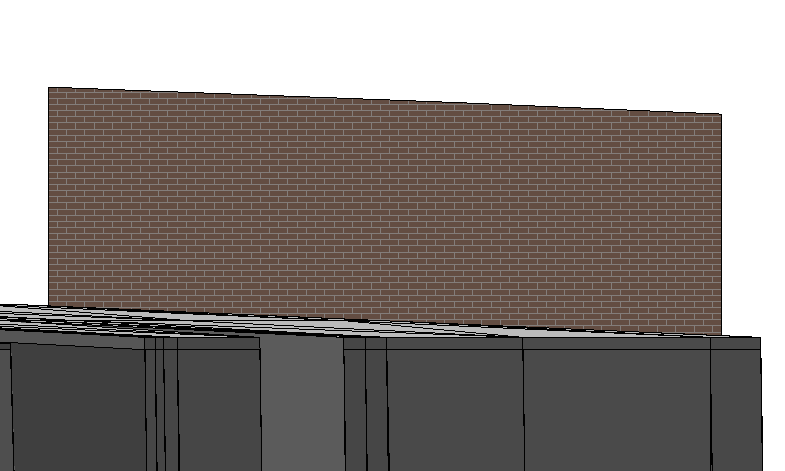

Attached Images


-----------------------------------

  • Core 2 Duo E8400 3ghz
  • 756mb Nvidia 9600GSO 256bit
  • 6gb Kingston RAM 800mz DDR2
  • Windows XP Service Pack 3 32-bit

This user is offline



Wed, May 28, 2008 at 10:00:38 AM | Wall on Topo Site

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Can't do TIMBO, because he want a curve wall with varies elevations





Edited on: Thu, May 29, 2008 at 4:39:29 PM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
