Forums >> Revit Building >> Technical Support >> Revit 2015, Conical Roof Surface Pattern Twist

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Apr 20, 2015 at 9:08:43 PM | Revit 2015, Conical Roof Surface Pattern Twist

#1

MVBIMBRO


active

Joined: Sun, Jan 23, 2011
0 Posts
5 Stars: 1 Votes

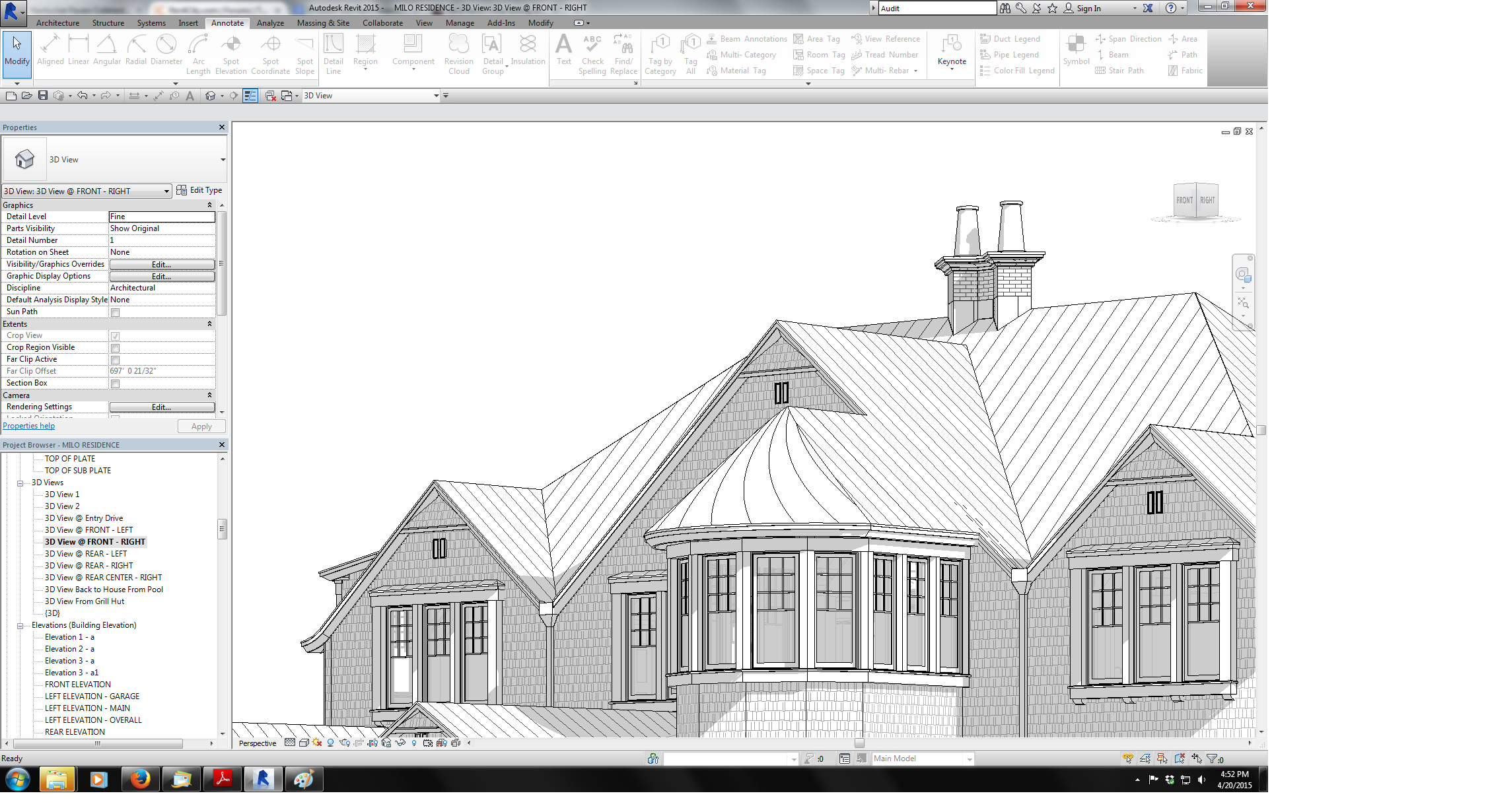

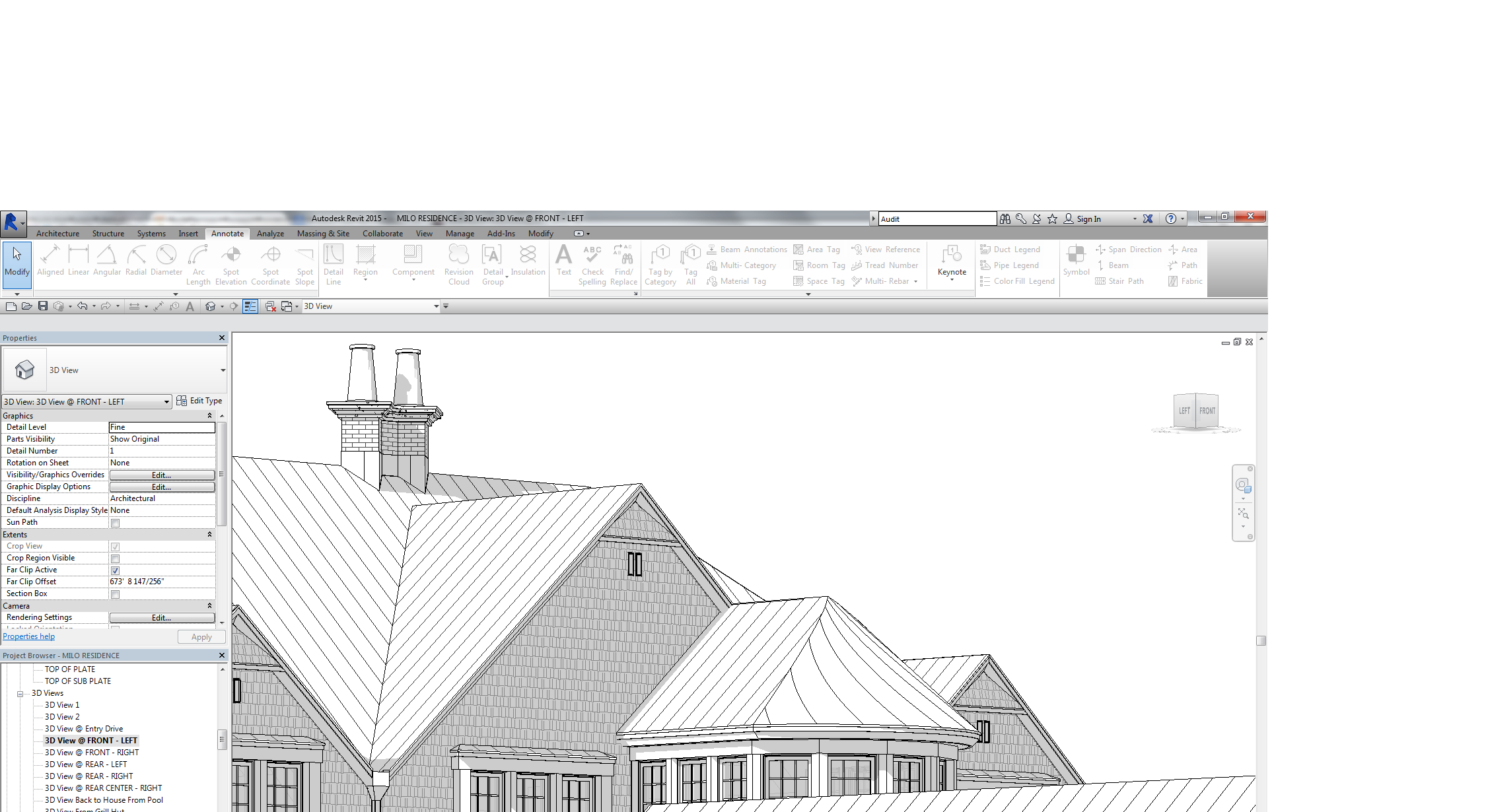

Revit seems to have difficulty aplying a model surface pattern to a conical roof shape.  Revit twists the 90 degree paralell line pattern counter-clockwise.  I have tried to dupliicate and rotate to counter-act this effect without success.  Before I give up and remove the surface pattern and apply model lines to acheive the effect, I wanted to check here to see if anyone has found a solution to my problem.

I appreciate your help.







Attached Images

138627_Conical_Roof_Suface_Twist.png138627_Conical_Roof_Suface_Twist_2.png138627_Conical_Roof_Suface_Twist_3.png

This user is offline

View Website

Tue, Apr 21, 2015 at 5:53:26 PM | Revit 2015, Conical Roof Surface Pattern Twist

#2

burtont


active

Joined: Wed, Dec 7, 2005
4 Posts
No Rating


Model lines are what I typically do with instances like this. Anyone else have a workaround?


This user is offline



Wed, Apr 22, 2015 at 2:14:57 AM | Revit 2015, Conical Roof Surface Pattern Twist

#3

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


I use either,

1. arrayed model lines, or

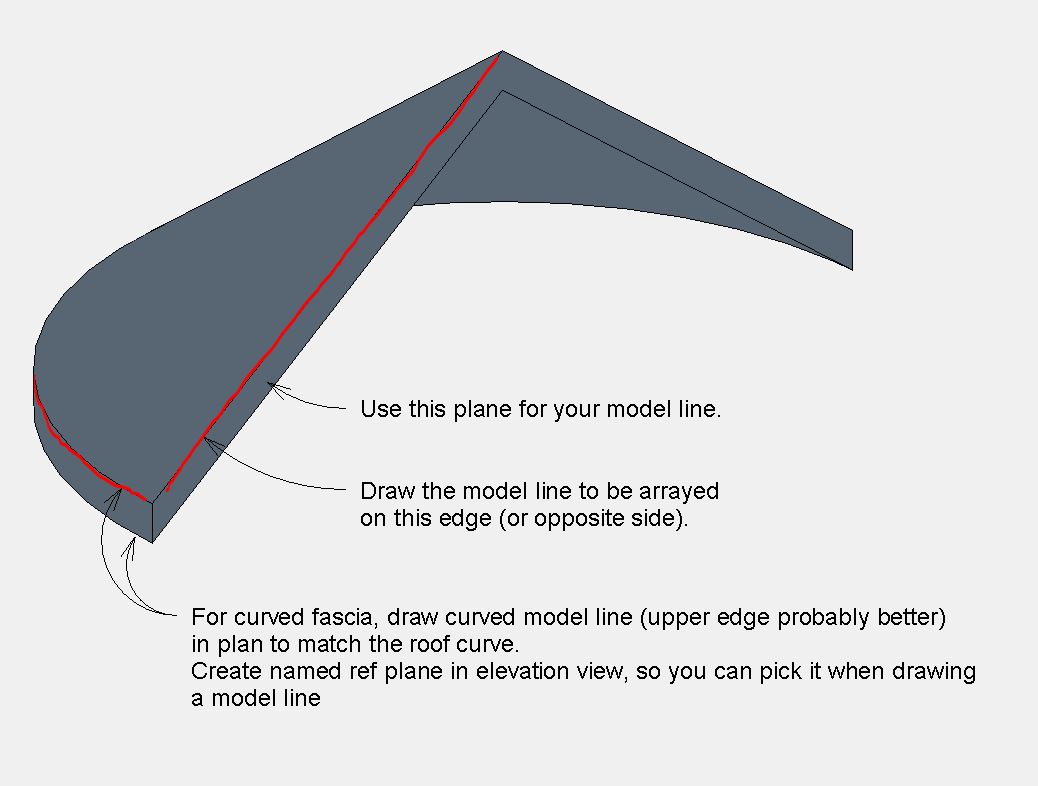

2. a line segmentation option (to remove fascia segmentation, I use curved model line and apply fascia to it (pic 1), or

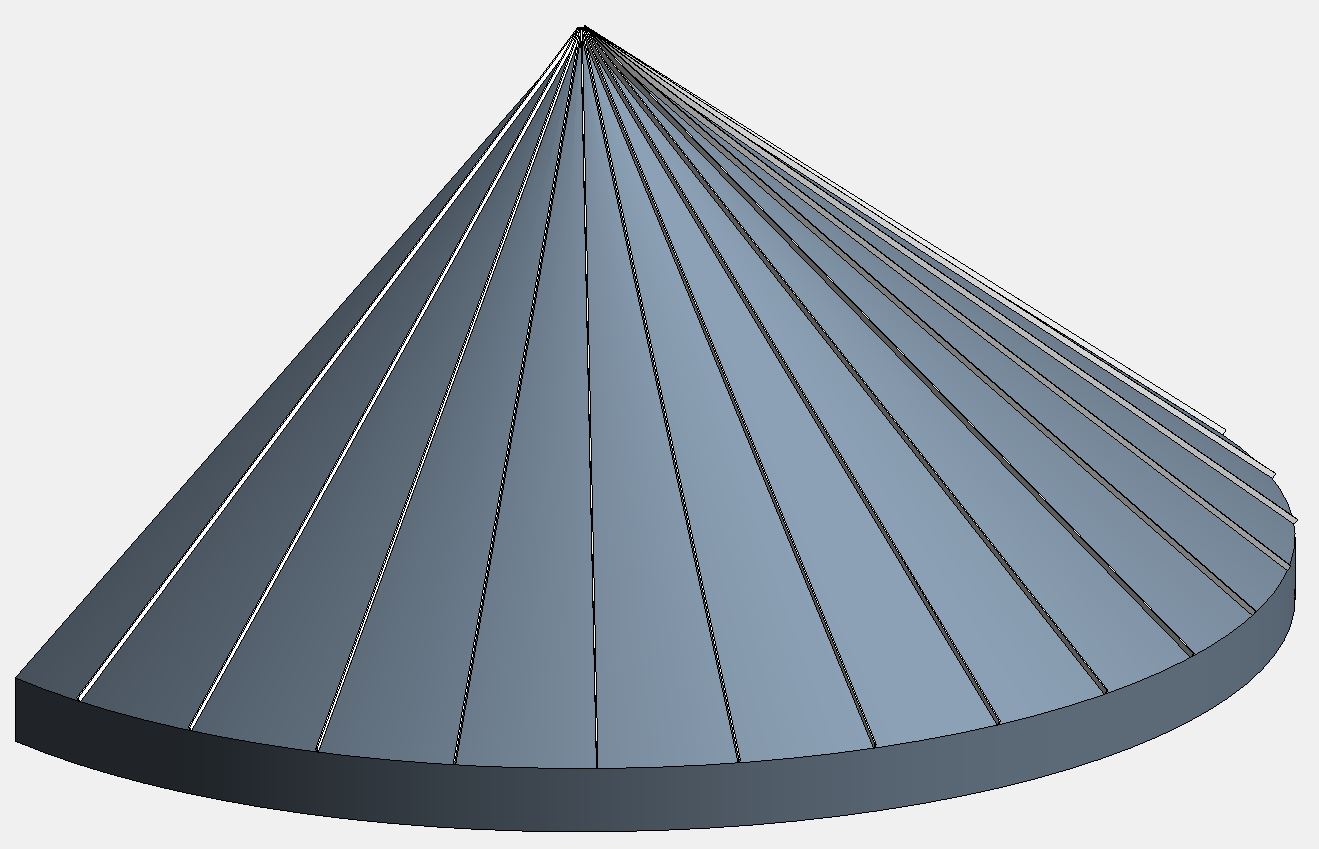

3. slope glazing with empty panel applied on top of conical roof (pic 2).



Attached Images


This user is offline



Wed, Apr 22, 2015 at 1:32:10 PM | Revit 2015, Conical Roof Surface Pattern Twist

#4

MVBIMBRO


active

Joined: Sun, Jan 23, 2011
0 Posts
5 Stars: 1 Votes


Thanks burtont & pijpiwo!

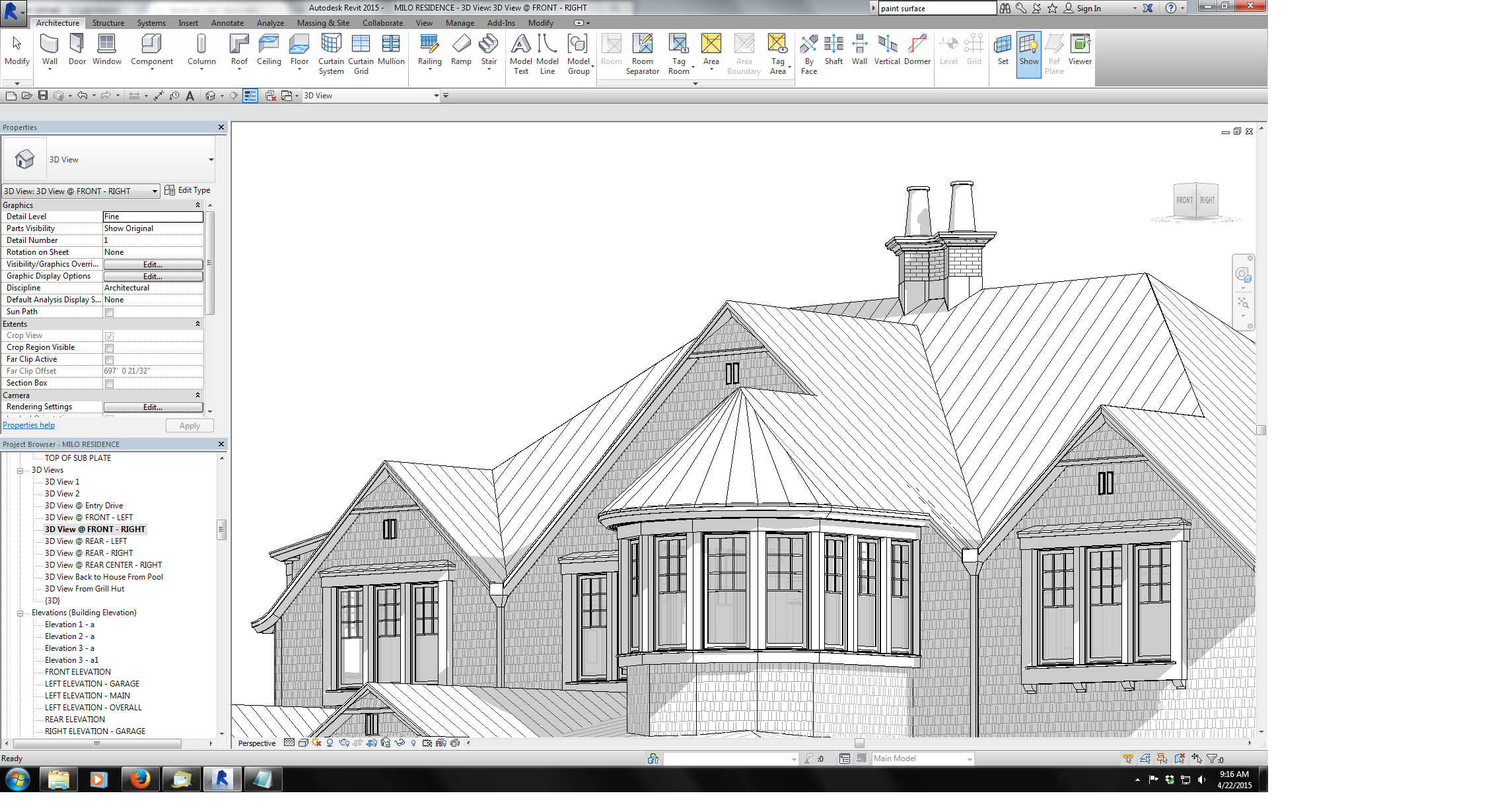

I could not use model lines because I could not set a work plane host on a curved surface.  I ended up segmenting the curve so hips at base were same as standing seam offset (1'-2").  The result created hips which are represented by lines which can be edited to appear like the surface pattern of standing seam roof elsewhere on elevations and 3d views.  However, I could not use a curved model line to host a curved fascia because of aforementioned work plane host issue.  So I modeled a temporary 3/4" trim host which I later hid in relavent view.  See image.

Now if I can find a way to get model surface pattern for shakes to remain vertical on curved wall sweeps!

Thanks Agian burtont & pijpiwo!



Attached Images


This user is offline

View Website

Wed, Apr 22, 2015 at 1:57:44 PM | Revit 2015, Conical Roof Surface Pattern Twist

#5

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes

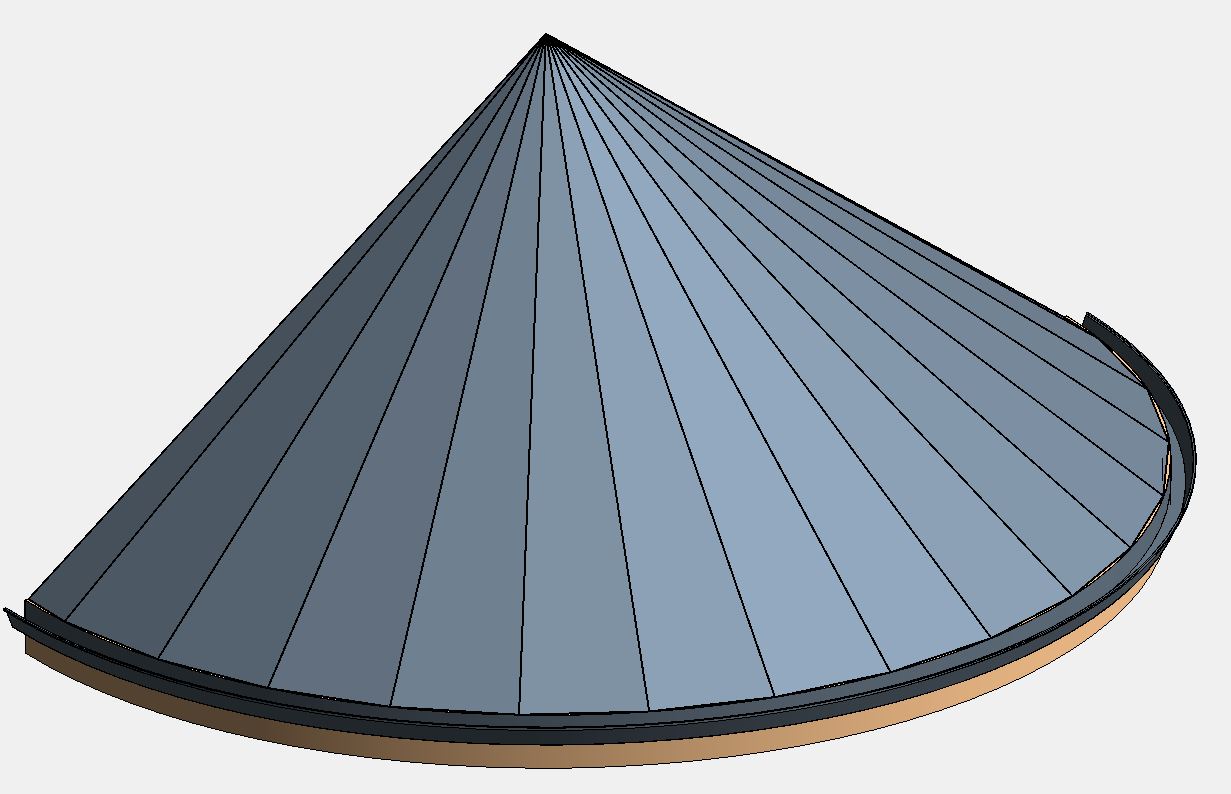

See picture.



Attached Images


This user is offline
