Tue, Mar 31, 2015 at 4:14:56 AM | Level Marks???

#1

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating


Is it possible to have 2 or more different level marks in 1 Revit Project file, but, of course, on 2 different views.  I have my default Elevation Datum Marker for my exterior elevations.  I want a different symbol of Level Marker for my interior elevations.  If I change my Level Marker on my interior elevation, my Elevation Datum Marker on my exterior elevation changes too.  How can I make to independent Level Markers?


This user is offline



Tue, Mar 31, 2015 at 12:11:18 PM | Level Marks???

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


Click on your elevation>Edit Type>Duplicate and change the Symbol to what you want to use.


This user is offline

View Website

Tue, Mar 31, 2015 at 2:53:20 PM | Level Marks???

#3

bigbrother


active

Joined: Thu, Jan 15, 2009
11 Posts
No Rating


Sorry, but I did that already and the result is both my Exterior & Interior level marks change to any symbol I choose. Or is there something I'm missing here?


This user is offline



Tue, Mar 31, 2015 at 3:59:07 PM | Level Marks???

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes

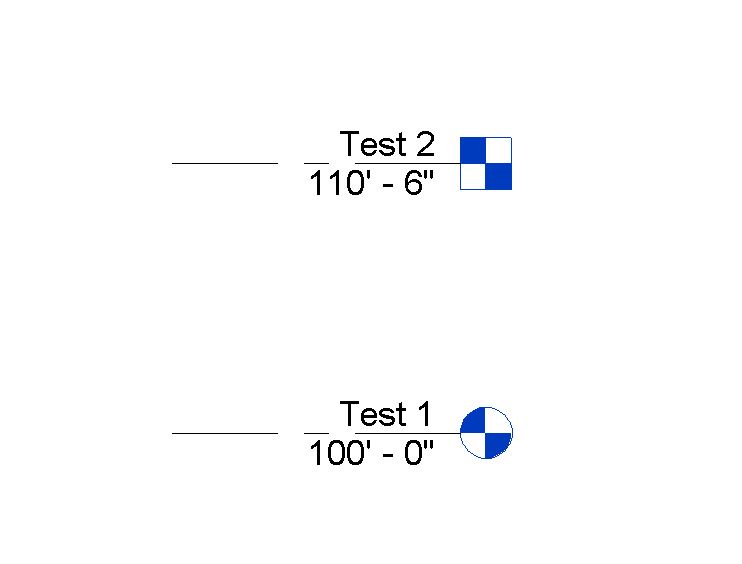

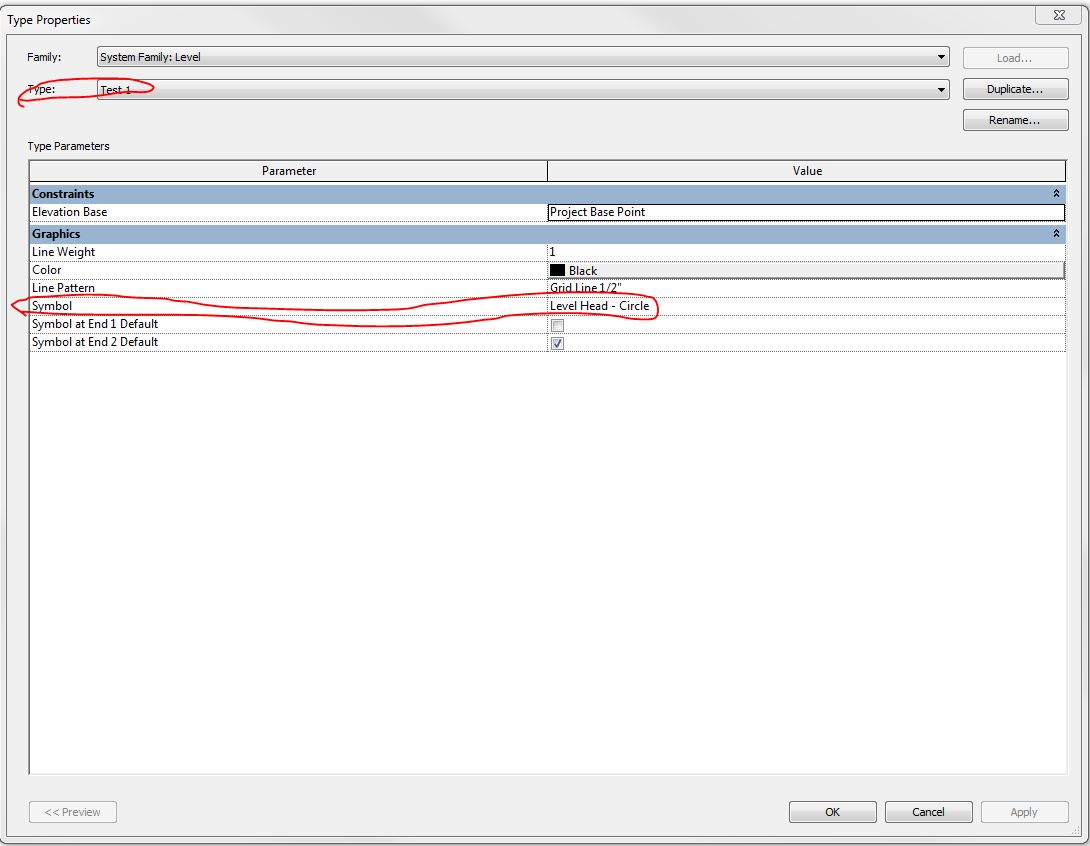

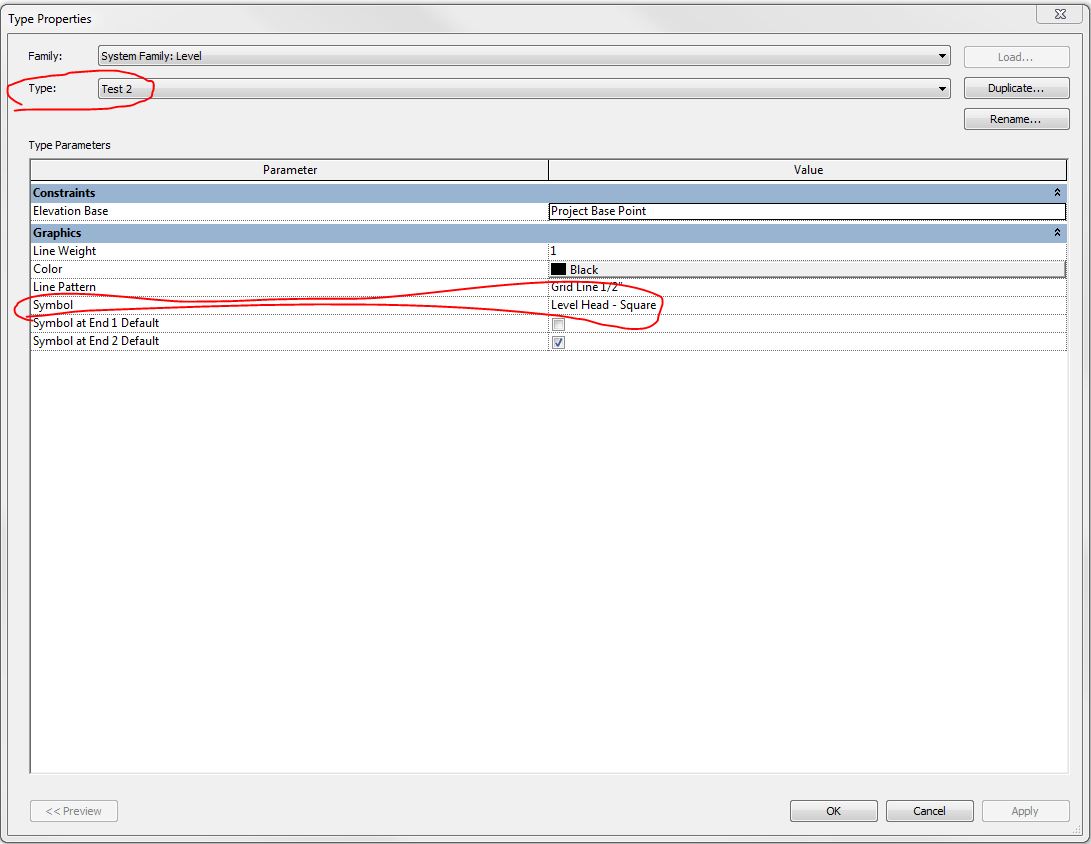

You are still doing something wrong then.  Interior and Exterior do not matter, they both use Levels.  You just need to duplicate the type and change the symbol of one of them.  See my attached images.  If this doens't work you will need to attach some images of your process and problem.



Attached Images


This user is offline

View Website

Tue, Mar 31, 2015 at 5:24:33 PM | Level Marks???

#5

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


I think the OP wants to change the symbol of the same level on two different views. In that case, you need to copy the actual level, rename it, change the symbol and use filter tool to show one level or the other.





...or use spot elevation - that would be my choice.









Edited on: Tue, Mar 31, 2015 at 12:25:37 PM

This user is offline



Tue, Mar 31, 2015 at 7:01:47 PM | Level Marks???

#6

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


If that's the case having 2 different levels is not good practice.  Spot elevation would be a better choice.


This user is offline

View Website

Wed, Apr 8, 2015 at 4:10:30 PM | teafoe5

#7

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Quoting teafoe5 from 2015-03-31 14:01:47

"

having 2 different levels is not good practice.

"

Not necessarily, especially when working with an addition to the existing building, for example. Having separate levels for an existing building and new addition can be beneficial, even though they are on the same elevation. Let’s say, the client decides to drop down new floor later on in the project. It can be easily done just by lowering a level (associated with the new addition), without disturbing existing elements/building.

Unless you’re specifically referring to the OP’s scenario, where in fact, a spot elevation could be a better choice as I mentioned before.


This user is offline



Wed, Apr 8, 2015 at 5:29:53 PM | Level Marks???

#8

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


I'm still going to disagree.  "Let’s say, the client decides to drop down new floor later on in the project" that is basically saying on all additions you should have a new and existing floor level for the same level just in case they move the floor.  I don't see this being practical to do on all jobs.


This user is offline

View Website

Wed, Apr 8, 2015 at 7:06:31 PM | Level Marks???

#9

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


I do. The client scenario was just an example. A need for adjusting level elevations could be necessary due to various reasons – architectural design change was just one of them. Keeping existing and new stuff on separate levels proofed to be very useful for me. Just last week, this set up saves me a lot of time after structural engineer’s revisions where I had to adjust new levels while ‘existing’ ones stayed put. ‘Existing’ levels, in my projects, are always pinned and should never be moved, while new ones could be tuned as needed without affecting existing building. You could think of it as having two separate buildings on site – existing and new addition with different set of levels for both, coincidentally with some levels at the same elevation - where linking is not very practical.


This user is offline
