Forums >> Revit Building >> Technical Support >> Wall opening (door)

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Mar 26, 2015 at 3:24:54 PM | Wall opening (door)

#1

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes

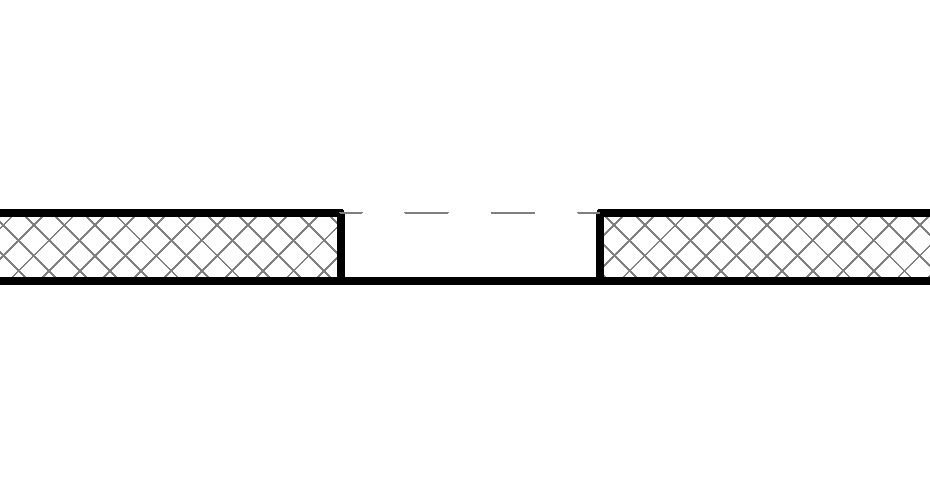

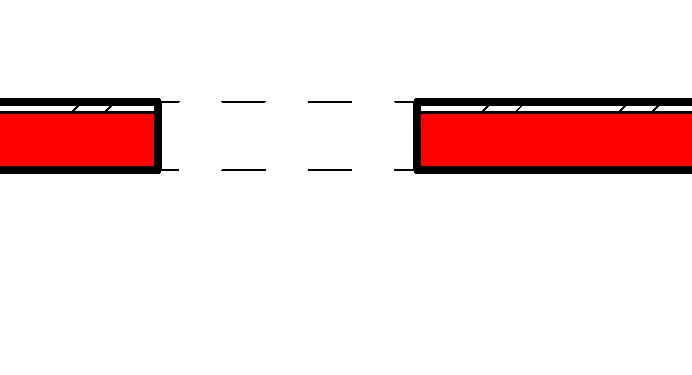

I have a door family I created to just be an opening with trim.  It looks great when its a new door in a new wall but once I do an existing door in an existing wall I get a really dark line one one side.  It looks like the opening lines from the family are coming through but I don't know how to shut them off.  Anyone ever have this problem?



Attached Images


Attached Files

This user is offline

View Website

Fri, Mar 27, 2015 at 7:44:21 AM | Wall opening (door)

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


teafoe,  I looked at this last night and it is strange.  Did you have this same family in 2014?


This user is offline



Fri, Mar 27, 2015 at 9:47:20 AM | Wall opening (door)

#3

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


No I made it in 2015.  I can't remember if I modified an existing family or not.


This user is offline

View Website

Fri, Mar 27, 2015 at 5:52:35 PM | Wall opening (door)

#4

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


In your family (plan view), dashed symbolic lines are different. One is hidden (cut) and the other is hidden (projection). Make them both the same. Opening object has nothing to do with it – it’s always invisible.


This user is offline



Tue, Mar 31, 2015 at 7:20:44 AM | Wall opening (door)

#5

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 46 Votes


Wow how did I not see that one???  Thanks a lot


This user is offline

View Website

Tue, Mar 31, 2015 at 10:58:12 AM | Wall opening (door)

#6

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


Sometimes the most obvious things are causing the most trouble.



You're welcome,

Cheers!




This user is offline
