Forums >> Revit Structure >> Technical Support >> original title section changes when duplicated view is created on a new sheet -

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Mar 11, 2015 at 5:39:08 PM | original title section changes when duplicated view is created on a new sheet -

#1

MARCANDRES


active

Joined: Wed, Mar 11, 2015
0 Posts
No Rating


i have a project with all my floor plan already in sheets (24x36), lets say floor 1 on sheet 101 floor 2 on sheet 102 etc… i have also section 1 and 2 that cuts all the floors so it appears on each floor sheet, but the section is called on sheet 200. I had to do a revision of  a little part of all the floor on a smaller sheet (8x11) so I duplicated (dependent) view of each floor that a call on sheet (8x11) that I call  CR01, CR02 etc… since my section 1 and 2 also appears in those new duplicated view, and are called in new sheet CR01, CR02, the section title in the original sheet 200 ( 1/200 and 2/200) change automaticly to 1/CR01 and 2/CR02, how can it stay 1/200 and  2/200

how to avoid it..


This user is offline



Thu, Mar 12, 2015 at 7:21:12 AM | original title section changes when duplicated view is created on a new sheet -

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I can't follow your question - too confusing.

I think you need a better understanding of dependent views.

http://help.autodesk.com/view/RVT/2014/ENU/?guid=GUID-EF8CCDA0-9946-49FA-B7AB-2B94470525D2



I believe this thread will point you in the direction you need to take: (There is no need to do an overlay)

http://www.revitcity.com/forums.php?action=viewthread&thread_id=24249


This user is offline



Thu, Mar 12, 2015 at 9:10:36 AM | original title section changes when duplicated view is created on a new sheet -

#3

MARCANDRES


active

Joined: Wed, Mar 11, 2015
0 Posts
No Rating


i'll try again,,,,

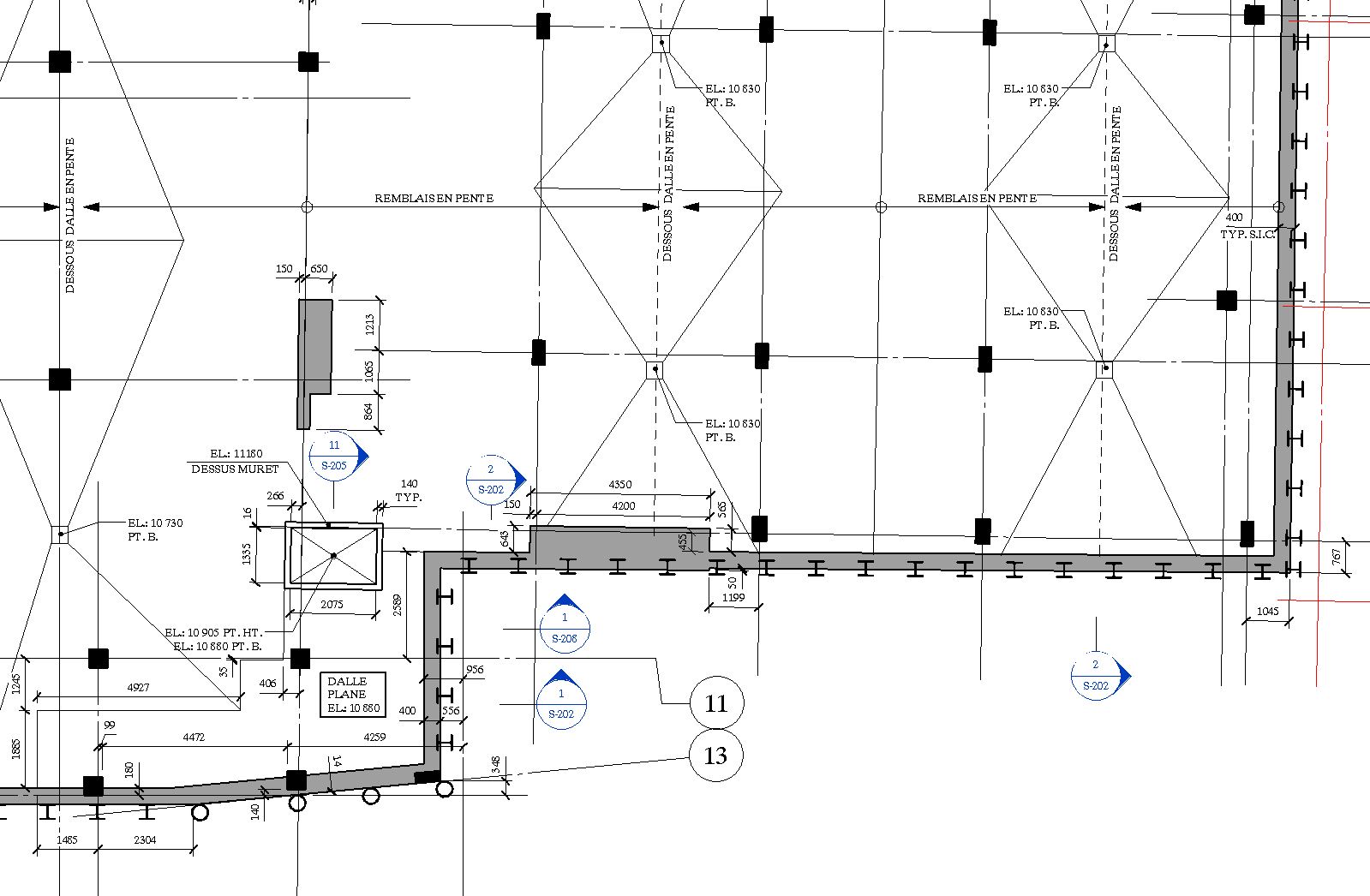

i have a floor plan with all my detail and annotations showed on it. (pdf 1)

i have multiple section on it too, and particully 2,  the 1/S202 and 2/S202 the are displayed on sheet S202 (pdf 2)

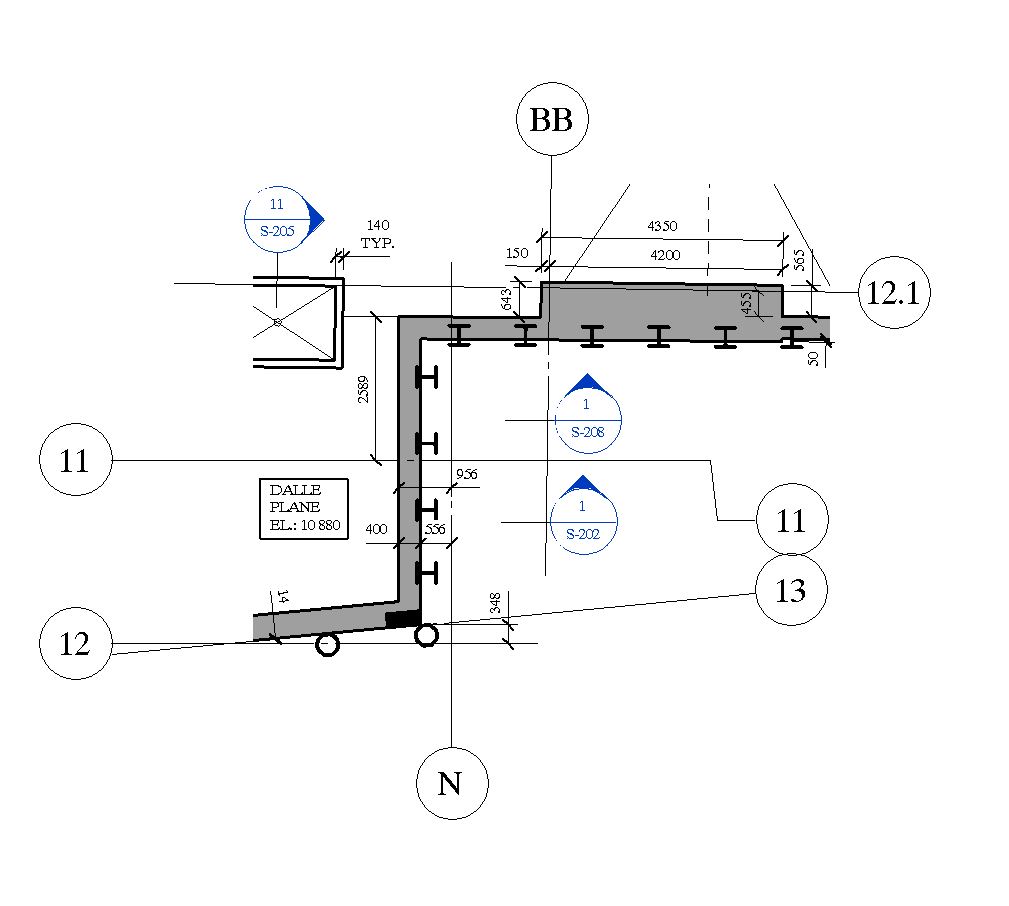

i had to do an instruction on a smaller sheet so i duplicated my floor plan (dependent) and crop it a little (pdf 3)

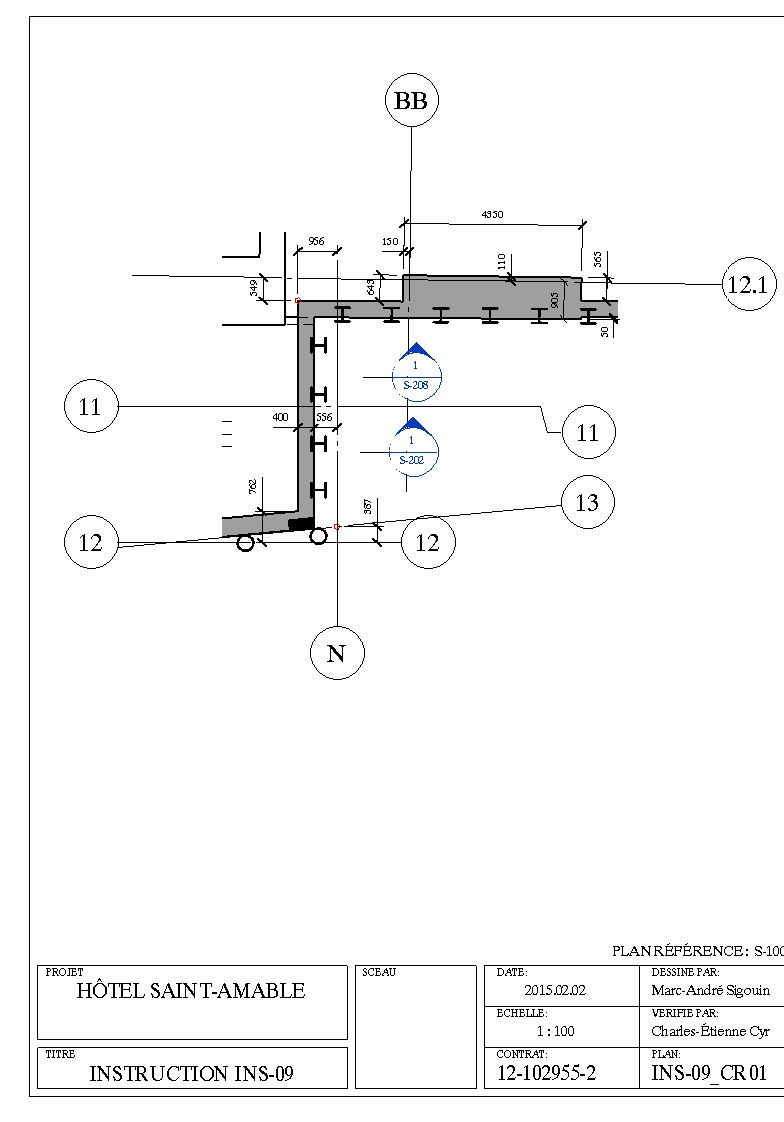

i put that dependent new view on a smaller sheet which is call INS-09_CR-01 (pdf 4)

since tha, now those 2 sections that where displayed on S202, are not named 1/S202 and 2/S202 anymore they changed to 1/INS-09_CR-01 and 2/INS-09_CR-01...

how can i let be named as they were before... ???



Attached Images

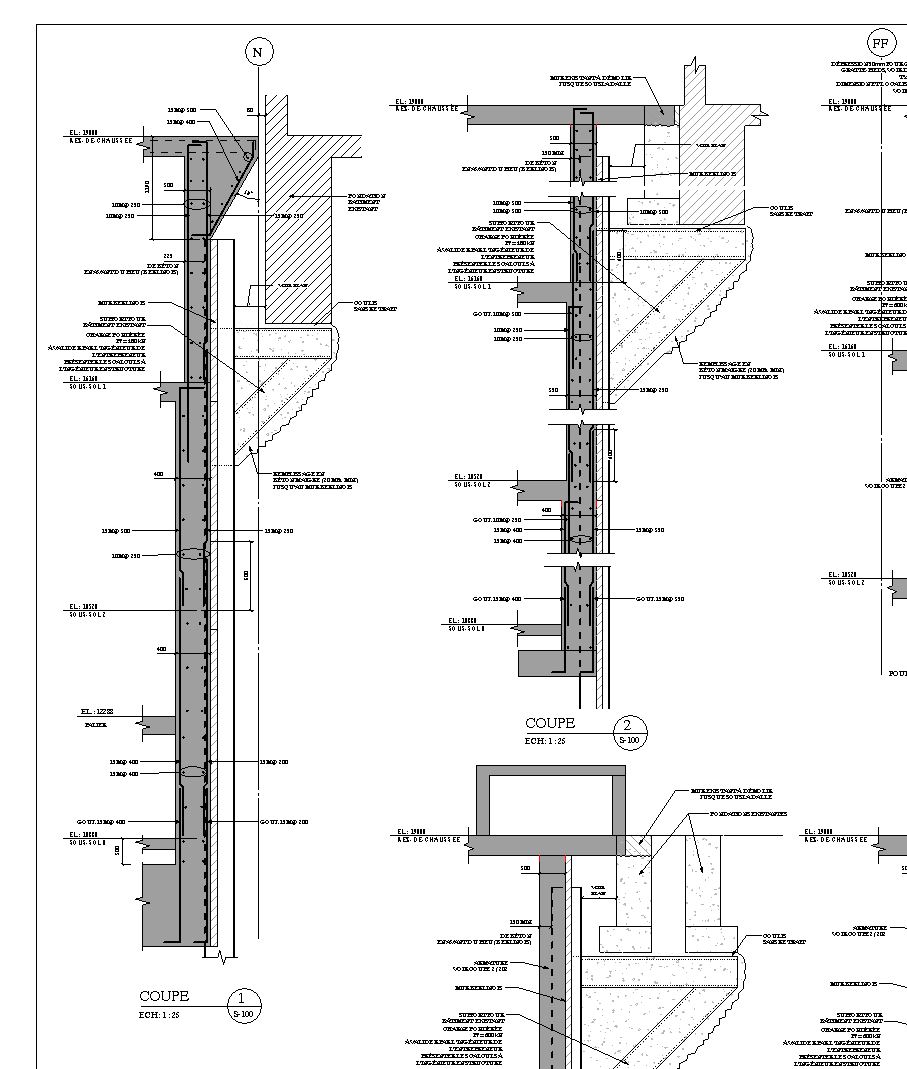

137802_pdf_1__floor_plan.JPG137802_pdf_2_sheet_24x36___202.JPG137802_pdf_3_floor_plan_dependent.JPG137802_pdf_4_instruction_sheet_with_dependent_new_view.JPG137802_pdf_5sheet_202_after_putting_the_dependent_view_on_sheet_INS-09CR-01.JPG

This user is offline



Thu, Mar 12, 2015 at 9:23:24 AM | original title section changes when duplicated view is created on a new sheet -

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


This is because you are using dependent views!



Please read the thread I posted.  You are doing this so you can create a small sheet for Revisions ... correct.  I outline a much easier and better process then using dependent views.  << They are a nightmare for this....   PLEASE READ THE OTHER THREAD and try it out.  We have been using that process for nearly 8 years and it works great!


This user is offline



Fri, Mar 13, 2015 at 10:17:47 AM | original title section changes when duplicated view is created on a new sheet -

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


I had forgotten that Revit changed in 2013 and the overlay titleblock family in that AUGI thread I point to no longer works.  The problem is in the nested filled rgion.   I am adding a new response in this thread that has an edited family that does work.  I removed the original family name but I don't take any credit for developing this process.
